Specifications
Wind pressures up to 5000 Pa, Wind volume up to 150000 m3/h, Operating temperature up to 450 CIndustrial fan
Dingyu provides you with satisfying specialized fans based in customer-oriented principle. Based on sound performance, international standardized design and specialized, humanized maintenance and considerate after service, we are launching the cutting-edge specialized carbon-steel, stainless, steel and titanic series industrial fan featured with high efficiency, high performance, low noise and low vibration, which is your best choice.
Application and features
It can be widely used for:
Our products are widely applied in Air induction/supply and coal power conveying system for power boilers;
Dust-collection for metallurgical and construction material manufacturing industry, cycling and drying system for industrial boiler;
Transmission and purifying system for fabric/granule material;
Air-conditioning and ventilating system for plant building.
Product features:
Optimized pneumatic transmission design by specific software for fluid system, reliable performance, smooth performance curve and wide high-efficiency range. The impeller is with streamline profile and welded steel plate joint. High efficiency and energy-saving to save cost and make profit for you.
Explanation for fan model selection
Example:
If you quire 30000CHM capacity and 2500Pa static pressure, then you can choose out the TDC-10# model which is proper for your application according to the summary table of performance curve below.
(Note): 1CMM=60CMH 1MMAq=10Pa
Summary table of performance curve
n Performance certified is for installation type D-Ducted inlet, Ducted outlet.
n Power rating (kW) does not include transmission losses. Performance ratings do not include the effects of appurtenances (accessories).
Fan Dimension Chart
Technical Data

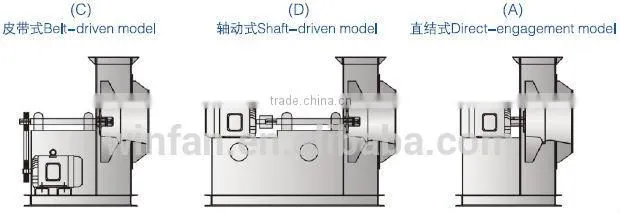

Selection of transmission method for Dingyu Fan

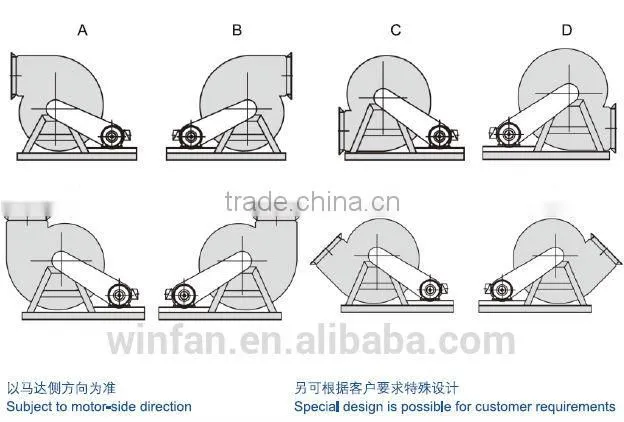

Standard rotation direction and wind-hole direction
