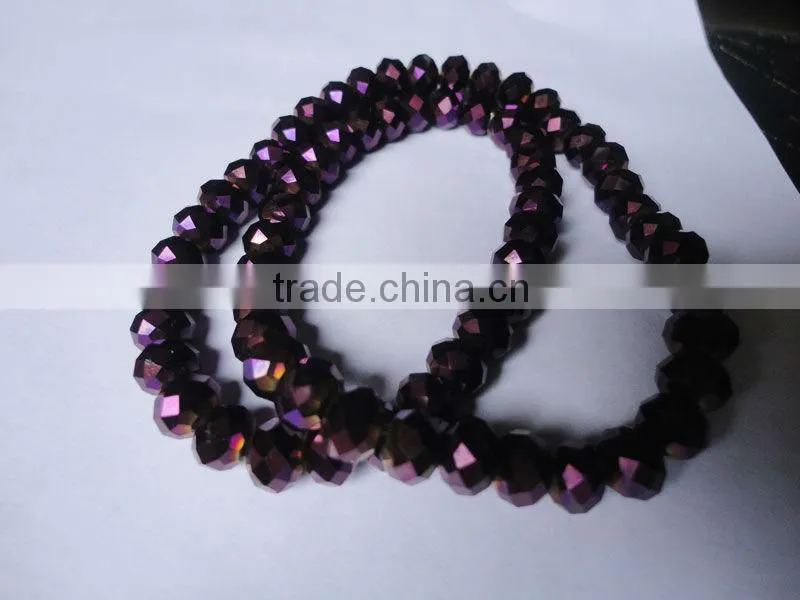

Vacuum metalizing machine/jewelry vacuum coating machine/colors vacuum coating machine

Specifications

1.Certified ISO9001
2.Nice after-sales service
3.Strong technology
4.Size can be customed
5.Chamber made of stainless steel





What's the deatils of our  CCZK-1000 multi-arc ion vacuum coating machine

1.Fast deposition speed and high production effiency ,coated film with excellent brightness and well adhesion.



2.Intelligent automatic control, easy to operate the machine without any experience.



3.Environment friendly ,no waste water and gas.



4.Manufacturing by CICEL latest technology,also approved CE and ISO international quality    management system certification.





specification of our CCZK-1000 multi-arc ion vacuum  coating  machine



1.Configuration :ZJP-300  Roots pump ,2X-70&2X-8 Mechanical pump,KT-700 Diffusion pump.

The function of multi-Arc Lon planting coated with TiN,TiCN,CrN ,ZrN or other same kind coating with hard diamond,which enhance the attachment with one another .This coating is also used to make watch,glass,cooks and must be wear and hard.



2.The system is equipment with a centralized control device PLC ,a computer automatic gear-shifting vacuum gauge, a three-flow controller, a PID temperature control device, four side-installed heating tube, a suit of bias power supply,15 set contra-variant arc power supply, it is special equipments for ceramic tiles industry(such as coating gold tiles, silvery tiles, imaginary color tiles) Tiles equipment main models and parameters



3.Hard chrome vacuum coating machine is mainly used in flat glass, acrylic, PC, PET, plastic ,metal surface to plat high-quality, multi-function metal film, electromagnetic shielding film, the reaction film composite film, transparent conductive film, antireflection (AR), reflectance-increasing film, LOW-E ,etc. Our Company can make design according to your requirements, provide complete equipment, answer for the process, hand in the "key" in time.

4.Characteristics:

1>The equipment uses the vacuum magnetron sputtering technique, twin cathode, MF sputtering technique, and matching with advanced control systems.
2>The production process all automated, continuous. The highest temperature of the plating workpiece is up to 350 centi-degree, the temperature is zone control and adjustable.



3>The vacuum chamber materials adopts SUS304, polishing inner vacuum chamber wall, spraying beads external vacuum chamber wall after polishing.



4>The vacuum chamber separated by an independent gate valve. The board plug valve r we have designed can be cut off effectively, and stabilize the process gas. Presently only our companies in domestic have the technology to design and manufacture board plug valve, and it has better seal effective and more durability than the current flap valve .



5>The transmission adopts the magnetic targeting to promise stability . The speed of the entire production line in each section use the variable frequency adjustable speed motor to drive, the motion speed is adjustable.



6, Electrical control systems: touch screen and PLC automatic control, man-machine dialogue to achieve the data display, operation and control.





Why choose us?

1.we are the alibaba Assessed 1year Gold supplier.

2.We are the a factury manufacturing vacuum coating machine ,best product capability,best quality control , best service.

3.Inspected by the inspection institution  of bureau veritas certification.

4.100%QC inspection before shippment.

5.CE/ISO listed ,competitive price.



Company information



   WENZHOU CICEL VACUUM MACHINERY CO.,LTD. is located binhai park in zhejiang wenzhou ,it is a professional enterprise of wenzhou large equipment R&D production,marketing and customer service as one of the company management, most of the staff have many years of production management experience and technology  of vacuum.assembly personnel with rich experience in production technology.











The company's main products are:high performance evaporation vacuum coating machine equipment,   magnetron supttering coating line,multi-arc ion plating equipment,magnetron supttering vacuum coating machine,the glass vacuum coating machine,optical coating equipment,light protective film professional vacuum coating equipment,the UV line automatic spraying line.











Clients of the company has covered all over the world,the main international trade in central Asia,Turkey,India,and so on.
