Specifications
1.Certified ISO90012.Nice after-sales service
3.Strong technology support
4.Size can be customized
5.Warranty: 1 year

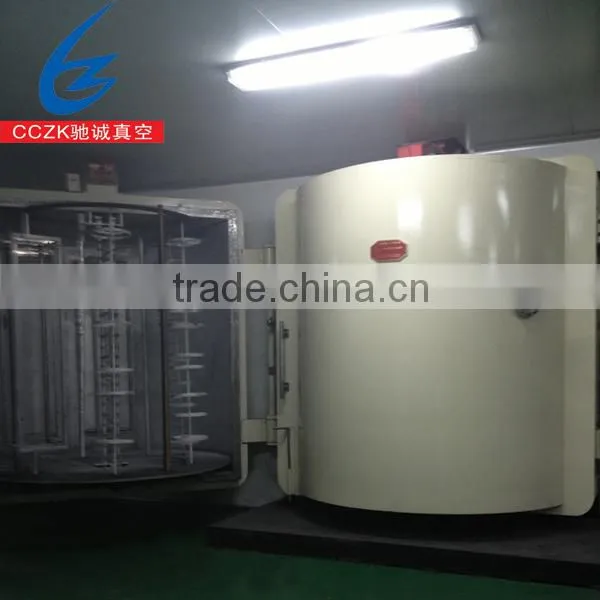

1. Mobile phone shell metallizing vacuum coating machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
2. High vacuum coating machine applied widely in automotive, audio and various small appliances, .computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
3. Reflector vacuum coating machine Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
4.Technical indexes and parameters:
1>Vacuum chamber: ø1400mm×1800mm
2>Vacuum degree: (ultimate vacuum) 8×10 -4 Pa(clean vessel, idle load)
3>Pumping speed: 5×10-2≤5min (clean vessel, idle load)
4>Evaporation power:380V/12V 20KW
5>Total power: 380V 50Hz 35KW (max. 50KW within short time)
6>Total water volume: 0.2Mpa 3m3/h
7>Total gas volume: 0.4-0.8Mpa
8>Workpiece rotation speed:≥05r/min
