Help CenterShoe Heel Vacuum Coating Machine With Double Doors
Related Products
-
Double Doors Aluminum Coating Machine for Plastic ProductsUS$ 20,000 - 100,000MOQ: 1 Set -
Mirror Vacuum Plating Machine/mirrior Painting Silver Machine/evaporation Machine/silver Film Coating MachineUS$ 40,000 - 60,000MOQ: 1 Set
-
Shoe Heel Vacuum Metalizing Coating MachineUS$ 22,200 - 100,000MOQ: 1 Set
-
Vertical Double Doors Shoes Heels Metalization Coating MachineUS$ 22,000 - 200,000MOQ: 1 Set
-
Plastic Reflector Vacuum Metallizing Machine/high Vacuum Coating Machine/ Quality ChoiceUS$ 20,000 - 30,000MOQ: 1 Set
Specifications
1.Certified ISO90012.Nice after-sales service
3.Strong technology support
4.Size can be customized
5.Warranty: 1 year
Main technical indexes and parameters:
1>Vacuum chamber :1400mm×1600mm
2>Ultimate vacuum :8.0×10-4pa(clean vessel,idle load)
3>Pumping speed:5×10-2≤5min
4>Evaporation power:380V/12V 20KW
5>Total power:380V 50Hz 68KW(max.90KW within short time)
6>Total water volume:0.2Mpa 3m3/h
7>Toal gas volume:0.4-0.8Mpa
The overall process of air bleed and coating by vaporization can be controlled automatically.

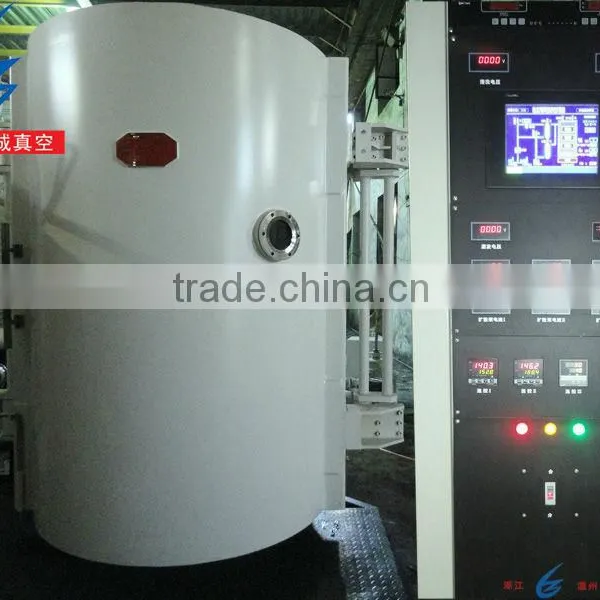

Shoe heel vacuum coating machine (CCZK-)
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
High heel shoe machine Characteristic: reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.

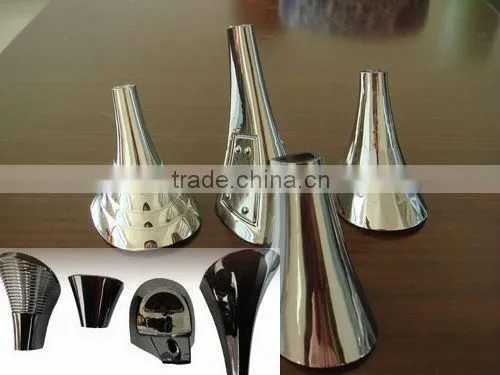

Aluminum film PVD coating machinery Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
