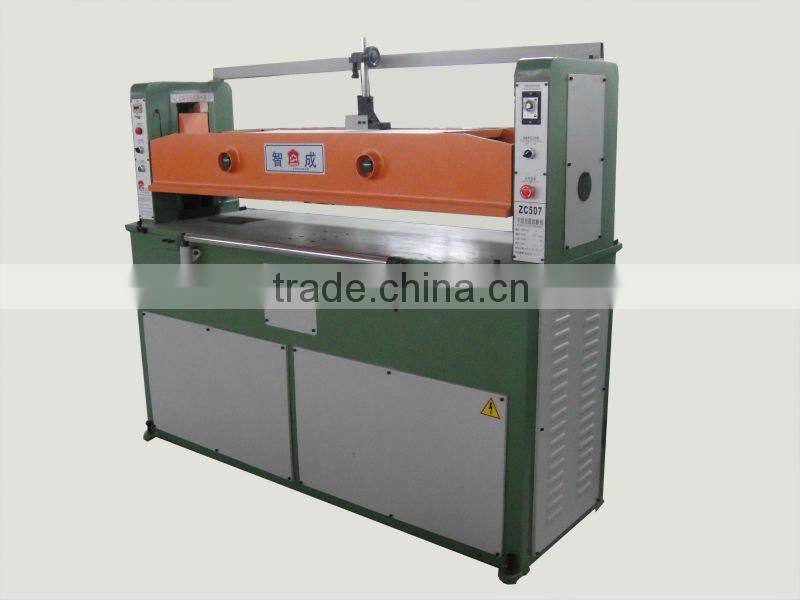

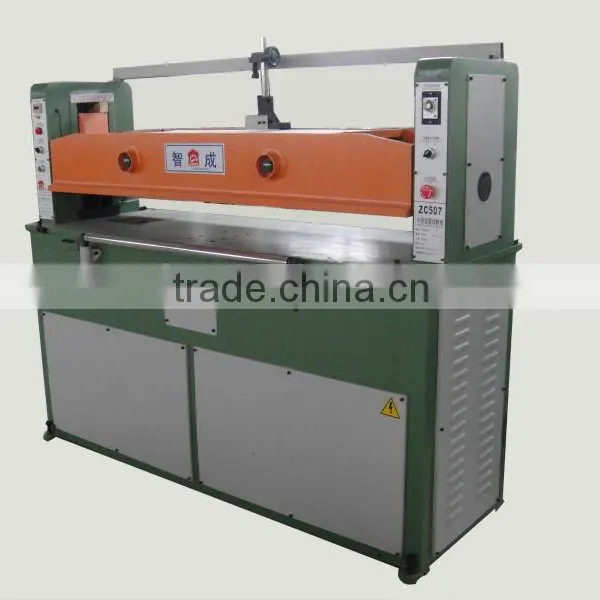

Plane Oil Press cutting machine
Company Detail
Our company is professional on manufacturing shoemaking machinery with 25 years history, located in the world's footwear production in manufacturing city base-- yancheng, Jiangsu, with the integration of R&D, manufacturing and sales, also own the modern management , have the continue developing and innovation in shoe making machinery and rubber, EVA sole making machinery.
Our company has a complete rubber making machinery. moreover, our machine sold to 60 countries in the world. Perfect after-sales service and high quality machine could be offered by our factory.
Machine Description
What Specification of our cutting press?
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1, The operation is labor-saving and simple with low malfunction rate and good safey and reliability.
2, The cutting point setting mechanism is compact and accurate with simple maintenance.
3, It is provided with cutting travel fine adjustment device to effectively prolong service life of die cutter and cutting board.
4, Stable and quiet operation,fast cutting speed and high effciency.
Mainly used for die cutting leather and leather
products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.
25 years experience of cutting press machine
1. Technical Parameters
Stable and quiet operation,fast cutting speed and high effciency.
| Model |
Cutting Force |
Dimension (L*W*H) |
Cutting Area |
Motor Power
|
Stroke | Net weight |
|
ZC-507-25T |
25Tons | 1850x1470x1250mm | 1250x500mm | 3HP | 50~160mm | 1200kg |
| ZC-507-25T | 25Tons | 2070x1470x1250mm | 1470x500mm | 3HP | 50~160mm | 1400kg |
| ZC-507-25T | 25Tons | 2200x1470x1250mm | 1600x500mm |
3HP | 50~160mm | 1600kg |
| ZC-507-30T | 30Tons | 1850x1550x1500mm | 1250x500mm | 5HP | 50~160mm | 1700kg |
| ZC-507-30T | 30Tons | 2070x1550x1500mm | 1470x500mm | 5HP | 50~160mm | 1800kg |
| ZC-507-30T | 30Tons | 2200x1600x1550mm | 1600x600mm | 5HP | 50~160mm | 1900kg |
2.Customer use of the site
2. Features and Advantages
Features and Advantages( Stable and quiet operation,fast cutting speed and high effciency. |
1. Digital control system of “PLC+coder”human-machine interface is adopted to realize automatic feeding,patten arrangement and cutting times with high precision. The positioning precision can reach 0.2mm so as to save materials,enhance work efficiency and reduce labor intensity. |
2. PLC program control center is provided with memory function for the settings of operation instructions,which are not influence in case of power failure or power-cut after work,so as to facilitate operation for the next time. |
3. Double oil cylinders drive,four-column guiding and automatic balancing are adopted to guarantee identical cutting depth for each time. |
4. Three operation modes such as automatic,semiautomatic and manual operations are optional,which are free and flexible. |
5. The cutting head can carry out automatic transverse movement and automatic positioning. The die cutter is fixed by electromagnetic suction disc. Without the need of setting die cutters,the upper and lower die cutters can carry out cutting freely with connivent operation. |
| 6. The automatic lubricating system ensures machine precision and prolongs service life. |
Mass Produced products
We can according to your material,requirements,design the machine and mould for you.
3.Application:
The hydraulic cutting press machine is suitable to die cut Footwear factory, shoe materials factory, bag factory , leather goods factory, rubber conveyor belt, PVC conveyor belt, EVA foaming, PVC foaming, rubber products, beach shoe forming, vamps, sport shoe, and so on

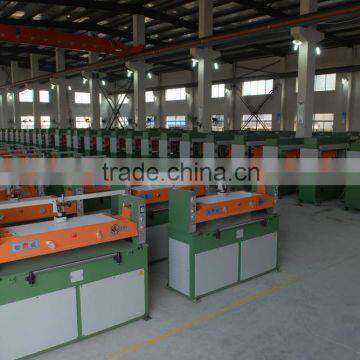

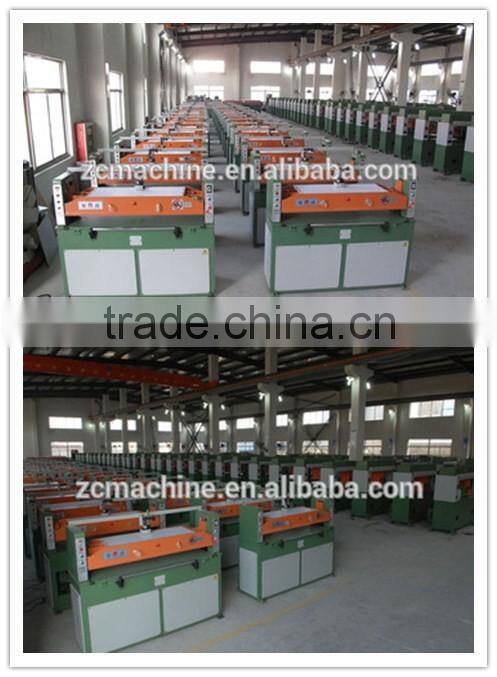

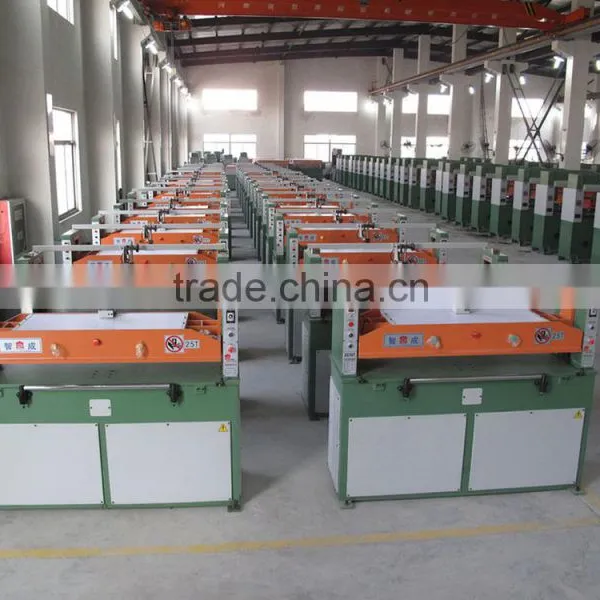

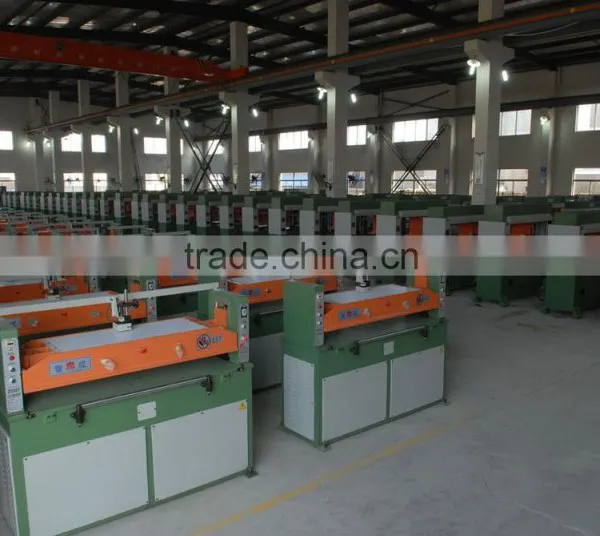

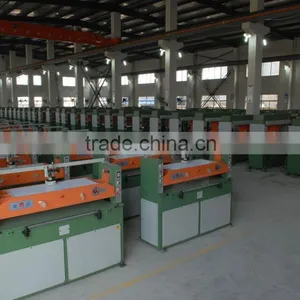

4.the cutting machine Workshop Show
5. Our Certifications
Stable and quiet operation,fast cutting speed and high effciency.
1. We are a factory,and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales service for 1.5 years.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 60 countries.
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
6.Trade shows
Note: we can produce different types, tons and cutting area of machine according to your demand.
Why choose us?
Check below for more information on placing an order
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. zhicheng sales send the Proforma Invoice. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos and samples will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and zhicheng Ship the goods. Inform the tracking number and check the status for clients. |
9. Order can be say “finish” when you receive the goods and satisfy with them . |
10. Feedback to Freedom about Quality , Service, Market Feedback & Suggestion. And we can do better . |
Guarantee and after-sale service
* One year guarantee.
* 24 hours technical support by e-mail.
* Calling or door-to-door service. Seller can send the engineer to buyer’s factory, but Buyer shall pay the round-trip air fare and accommodation
* Offer user manual and videos.
