Product Description

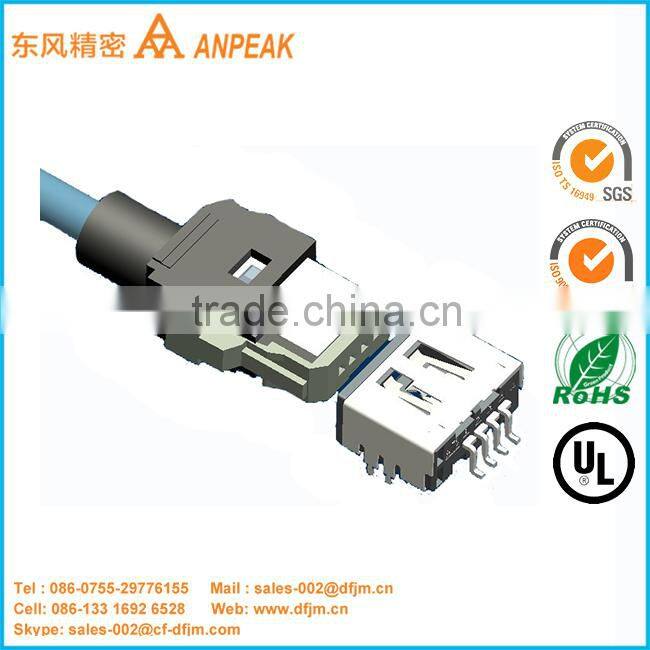

1. Automotive data transmission system connectors, widely used in car audio & video system
2. Inner-housing lock,high stability;
3. Wave soldering technology;
4. One-stop solution,including male connector, female connector, terminals;
5.0.8mm pitch wire-to-board 4 way USB automotive connectors;
6. Produce in house,competitive price with excellent quality;
7. 100% testing befere shippment;
9. Plastic Material: LCP/black; Contact & Shell: Phosphorous bronze,tin-plated .
10. Also can provide you 5 way and 10 way USB connector solutions.
Technical specifications
1. Voltage Rating: 5V AC/DC
2. Current Rating: 1A
3. Temperature Rating: -40~105°C
4.Contact resistance: Initial 10m ohm (Max),after environmental testing 20m ohm (Max)
5.Insulation resistance: 1000M ohm Min..
6.Withstanding voltage:500V AC/Minute
7.Applicable wire:28-24AWG
8. Mounting method: Horizontal
9.Compliant with RoHS
10. Standards:D3217-06
We can provide you all kinds of automotive connectors, wire to wire connectors,wire to board connectors, LVDS connectors, USB connectors, waterproof connectors, cable connectors, and so on..
