Specifications
cnc engraving machine XK60MT-Z1.6.5kw air-cooled spindle
2.steppter motor
3.NCstudio or DSP system
4.CE certificate

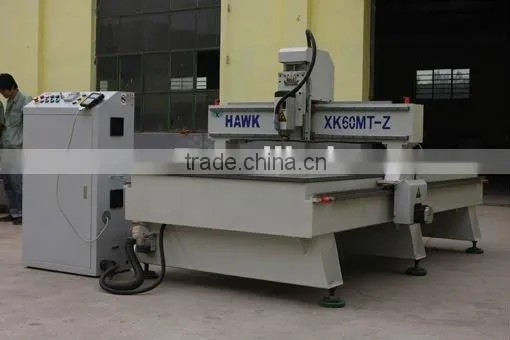

cnc engraving machine XK60MT-Z
Using Industry:
This machine is mainly used in furniture making industry,furniture decoration industry,wood craft industry ,wood decoration industry ,automatic tooling industry ,solid wood furniture ,solid wood door ,classical furniture ,decoration material ,door cabinets ,computer table ,plate furniture ,office furniture ,wooden sound box.wooden kitchen furniture and other processing.
Features
1.Casting-steel lathe bed, solid,durable and will not distorted.after long time usage
2.excellent parts:imported Taiwan linear guide rail,high-speed air-cooling spindle and German ballscrew;advanced DSP which can control the working of the machine without connecting computor,greatly saving cost and room.
3.break-point memory and pre-processing mode,
4.PVC working table,suitable for large-size material engraving.
5.Compatibility , compatible Type 3/Artcam/Castmate/Weitai and a variety of CAD/CAM design software
6.Auto lubrication system help you to maintain the machine in an easy way
7.Widely application
furniture industry: solid wood furniture,wooden door,cabinet,
wooden products processing:wooden Speakers,wooden Clock, wardrobe, Sports Equipment
musical instrument:3D surface engraving and shape cutting.
Artware making: photo frame,jewelry box
Electric industry:circuit board,insulation material,LED display screen
Technical and Parameter:
Model Name |
XK45X-Z |
Table size |
1440*3040mm |
X Y Z axis working area |
1300*2500*200mm |
X-Y movement |
Rack and pinion drive |
Z movement |
German Ball screw drive |
Guide |
Taiwan Hiwin Liner 30 square n guide |
Max speed |
35000mm/Min |
Max working speed |
20000mm/Min |
Repeat positioning accuracy |
±0.05mm |
System Resolution |
±0.02mm |
Spindle |
6.0kw air cool spindle |
Spindle speed |
0- 18000rpm/min |
Working Voltage |
AC380/50Hz |
Command code |
HPGL,G code |
Drive motors |
stepper |
Collet |
Φ12.7mmΦ.6mm, Φ3.175mm(option) |
Computer interface |
USB 2.0 |
Software |
Type3 ,Artcam ,Ucancam |
Controls |
Ncstudio(optioanl DSP) |
Assistant Equipment |
Water pump,air pump (Optional) |
Packing dimensions |
2200mm*3200mm*1850mm 1400kg |
