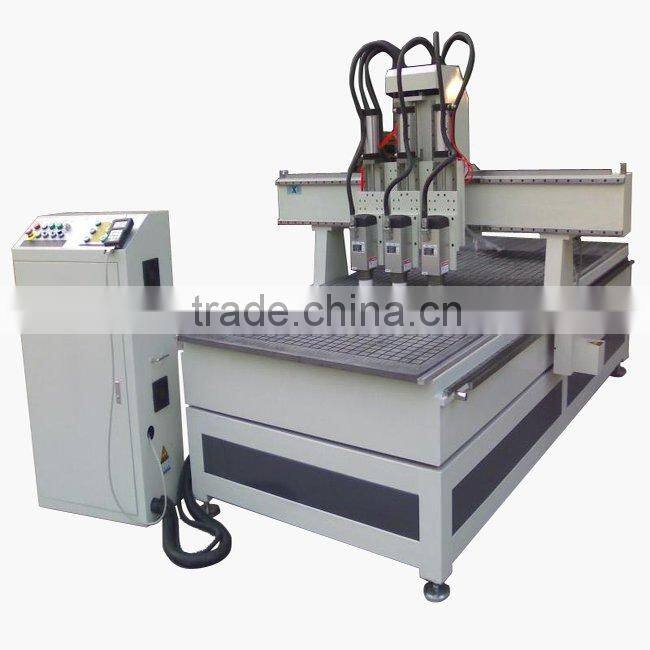

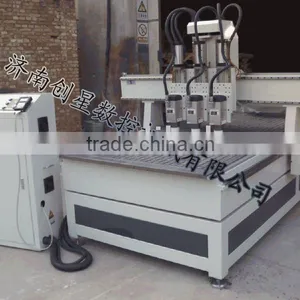

Help CenterChuangxing 3 Spindle Heads CNC Router Machine
Related Products
-
1200*2400 Work Table CNC Engraving MachineNegotiableMOQ: 1 Set -
3 Axis CNC Router Machine 1300*2500NegotiableMOQ: 1 Set
-
Chuangxing STONE CNC Router MachineNegotiableMOQ: 1 Set
-
CNC Router Engraving Machine JA1325-FCNegotiableMOQ: 1 Set
-
CNC Router Woodworking MachineJA1325-FCNegotiableMOQ: 1 Set
Specifications
CNC Router engraving Machine JA1325-T1.Adsorb power:4.5kw
2.Working size:1300*2500*200mm
3.Spindle rotating speed :24000rp
CNC Router Engraving Machine JA1325-T
Model: JA1325-T
Feature:
1. The whole lathe is thicking,scientific welded,so it will not be become distorted.
2. using imported Liner guide rail ,which imported from TaiWan.Two rows and four lines_rolling block devices that ensure it is high loading capacity and moves steadily.the imported screw rod from Germany is very precise.
3. has a power outage continued carving ,power failure recovery,processing time prediction function ,the real humanism design come true.
4.software has good compatibility and is compatible with several design software such as type 3/artcam/castmate/weitai and variety of CAD/CAM design software generate code which is processing.Ensure that the design barrier_free.
Specification: JA1325-Z
Model |
JA1325-three heads |
Table size |
1440*3040mm |
X Y Z axis working area |
1300*2500*200mm |
X-Y movement |
Rack and pinion ,gear drive |
Z movement |
Ball screw drive |
Guide |
Liner 20 square /Taiwan |
Max speed |
35000mm/Min |
Max working speed |
20000mm/Min |
Repeat positioning accuracy |
0.05mm |
Resolutions |
0.025mm |
Spindle |
4.5kw water-cooled |
Spindle speed |
0- 24000rpm/min |
Working Voltage |
AC380/50-60Hz 3-phase |
Command code |
G code |
Drive motors |
stepper |
Collet |
12.7mm.6mm,3.175mm |
Computer interface |
USB 2.0 |
Software |
Type3 ,Artcam ,Ucancam |
Controls |
DSP0501(digital signal processor) |
Packing dimensions |
2200mm*3200mm*1850mm 1400kg |
|
Equipment available |
a,Vacuum hold down b,Auto cut adjusting device c,Oil lubrication system d.Clamps and vacuum fitting |
