Specifications
China1200*2400 CNC engraving machine1.Working area:1200*2400mm
cessing wooden doors, cabinets, wave plates, badge

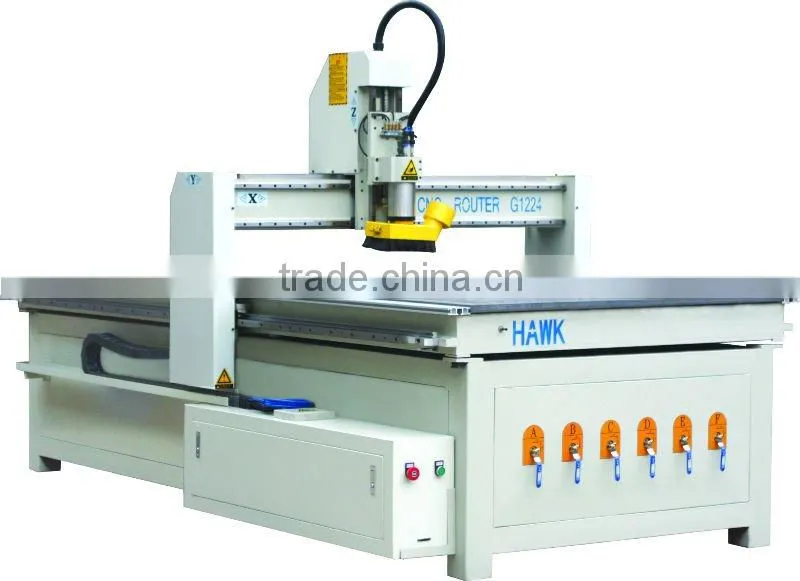

CNC Router engraving machine JA1224-Z
Features:
1. using imported straight _quadrated rail ,which imported from TaiWan.Two rows and four lines_rolling block devices that ensure it is high loading capacity and moves steadily.the imported screw rod from Germany is very precise.
2.The use of advananced dual_gear shaft of the y_axis rotation rack,intergration of control cabinet and the cabinet.,not occupy the space.
ftware has good compatibility and is compatible with several design software such as type 3/artcam/castmate/weitai and variety of CAD/CAM design software generate code which is processing.Ensure that the design barrier_free.
4.has a power outage continued carving ,power failure recovery,processing time prediction function ,the real humanism design come true.
5.improve the auto_lived oil lubrication system for extended service life of the body.
Main Technical Parameters:
Table size | 1440*3040mm | Max speed | 25000mm/min |
Working area | 1200*2400 mm | Max cutting speed | 15000mm/min |
Repeat positioning accuracy | ±0.05 mm | Feed in height | 120mm |
Adsorb power | 3kw(water)optional | Working voltage | AC380/50-60HZ 3-phase |
Spindle speed | 24000rpm/min | command code | HPGL Gcode |
