Home > Products > Diesel generator sets > 100KVA Open Type ShangChai Diesel Generator Set 60Hz
100KVA Open Type ShangChai Diesel Generator Set 60Hz
- fuzhou China
- T/T
You May Like
-
50KW K4105ZD Weichai Diesel Generator Set Cheap Price ST STC Alternator
-
1000KW Silent Diesel Generator Parts
-
36KW 45KVA Silent Diesel Power Generator
-
40KW Good Quality Low Price Diesel Generator Set With Yuchai Engine
-
8KW DC Output Type Single Cylinder Generator
-
100KW Open Type ShangChai Diesel Generator Set 50Hz
Product Details
| Place of Origin | Fujian, China | Brand Name | Raygong | |
| Model Number | RGS-80kw | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50/60HZ | |
| Rated Power | 100KVA | Rated Voltage | 220V/400V | |
| Rated Current | 144A |
Product Description

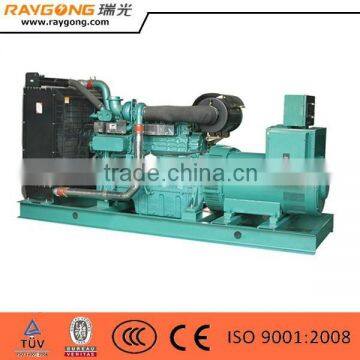

100KVA Open Type ShangChai Diesel Generator Set 60Hz
Shangchai diesel generator set
1.We cooperate with famous diesel engine – Volvo, Deutz, Lovol/Perkins, Weichai, MTU,Yuchai,Shangchai and others famous brand
2. Brushless alternator -- Stamford, Leroy Somer, Marathon, JET.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator
Model | Prime power | Engine model | No.of cyls | Bore/stroke (mm) | Fuel Cons. (Lir/hr) | Dimension (L*W*H) (mm) | Weight(kg) | |
| KW | KVA | |||||||
| RGS-50GF | 50 | 62.5 | 4135D-1 | 4 | 135/140 | 232.5 | 2200*760*1380 | 1600 |
| RGS-75GF | 75 | 93.7 | 4135AD | 4 | 135/150 | 232.5 | 2200*760*1380 | 1600 |
| RGS-90GF | 90 | 112.5 | SC4H160D2 | 4 | 105/124 | 198 | 1900*970*1400 | 1200 |
| RGS-100GF | 100 | 125 | SC4H180D2 | 6 | 105/124 | 198 | 1900*970*1400 | 1400 |
| RGS-120GF | 120 | 150 | SC7H230D2 | 6 | 105/124 | 198 | 2500*970*1450 | 1600 |
| RGS-150GF | 150 | 187.5 | SC7H250D2 | 6 | 135/150 | 198 | 2500*970*1450 | 1800 |
| RGS-200GF | 200 | 250 | G128ZLD2 | 6 | 135/150 | 225 | 2900*1130*1800 | 2600 |
| RGS-250GF | 250 | 312.5 | G128ZLD1 | 6 | 135/150 | 225 | 3100*1290*1800 | 3000 |
| RGS-300GF | 300 | 375 | G128ZLD11 | 6 | 135/150 | 230 | 3100*1350*1850 | 3500 |
| RGS-300GF | 300 | 375 | SC15G500D2 | 6 | 114/135 | 229.8 | 2800*1200*1850 | 3200 |
| RGS-350GF | 350 | 437.5 | 12V135AZLD | 12 | 135/150 | 232.6 | 3200*1450*1900 | 4200 |
| RGS-400GF | 400 | 500 | 12V135BZLD | 12 | 135/155 | 210 | 3300*1550*1900 | 4800 |
| RGS-450GF | 450 | 562.5 | 12V135BZLD2 | 12 | 135/155 | 210 | 3400*1550*1900 | 4800 |
| RGS-500GF | 500 | 625 | 12V135BZLD1 | 12 | 135/155 | 210 | 3400*1550*1900 | 4800 |
Q: what is you deliver time ?
A: Within 30days after got your T/T deposit or LC
Q: Is it all right to make customer brand name?
A: You can OEM brand name if the quantity above the MOQ.
Q: Where is your loading port?
A: Fuzhou,China .
Q: What are your payment term?
A: 30% deposit, the balance T/T against by the copy of B/L or L/C at sight.
Q: How to select generator?
(1).Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).
(2).Different country with different rated frequency(50Hz or 60Hz).
(3). For sea side operating environment,anti-condensation heater and droop CT.
(4). Generator insulation class H.(Inccopper wire,rotor,stator,)
(5). Generator stators are wound to 2/3 pitch. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches, when in parallel with the mains.
1. FUAN RAYGONG ELECTRICAL MACHINERY CO.,LTD with 15 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!
2. Main Product Lines:
a.Gasoline Generator Series: 0.75--6KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.
b.Diesel Generator Series: 5--720KW. CE certificates.
c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.
d.Water Pump Series: 1.5',2',3', 4' Water pumps. CE certificates.
e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.
f. Tiller Series: Garden,small farm,large field,ect.
g.IC Forklift Series, Electric Pallet Truck Series, Electric Stacker Series, OEM Offered .
Exhibition
Certificate
Rgi series brushless ac synchronous generator,st stc series single phase three phase harmonic ac synchronous generators c series diesel generator sets, l series diesel generator sets weifang series diesel generator sets yuchai series diesel generator sets shangchai quanchai series diesel generator sets gasoline generator sets air cooled diesel generator sets generator spare parts avr control speed governor alternator sound proof generator sets pe series diesel generator sets accessories ats switch manual control panel gasoline generator water pump gasoline engine brushless alternator gener stc st alternator brushless generator sound proof silent diesel generator
Any questions pls feel free to contact me, thanks!
