YUCHAI 60hz 110/220 Volt Brushless Alternator Generator

YUCHAI 60hz 110/220 Volt Brushless Alternator Generator photo-1

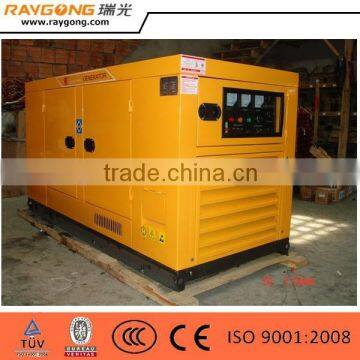

YUCHAI 60hz 110/220 Volt Brushless Alternator Generator photo-2
US$ 10,000 - 12,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
raygong
Model Number:
RGY-150KW
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name raygong
Model Number RGY-150KW
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50/60HZ
Rated Power 150KW
Rated Voltage 440/220V
Rated Current 270A

YUCHAI 60hz 110/220 volt brushless alternator generator

Product Description





Introduction to Yuchai:

Headquartered in Yulin, Guangxi, known as the "capital of Lingnan", formerly "Yulin Quantang Industrial Cooperative" founded in 1951, We rank 226th among China's top 500 enterprises, 115th among China's top 500 manufacturers, 106th among China's top 500 most valuable brands and 18th among China's top 500 machinery manufacturers. In 2012, we achieved sales revenues of 41.573 billion yuan. For years, we have forged strategic cooperation agreements with international technical and service suppliers such as Bosch, Caterpillar and Wartsila, have created strong R & D platforms centering on independent R & D technologies and geared to world cutting-edge technologies, have undertaken nine 863 projects including the technical development of heavy-duty diesel engines for commercial vehicles, the development of CNG engines for large buses, the development of diesel engines for cars and the development of heavy-duty diesel engines for commercial vehicles, co-formulated 33 national and industrial standards, and have taken the lead in China to mass-manufacture and launch diesel engines up to National III, IV and V emission standards. In 2011, we developed the country’s first Euro VI diesel engine, keeping pace with advanced world standards



YUCHAI 60hz 110/220 volt brushless alternator generatorYUCHAI 60hz 110/220 volt brushless alternator generator



Manufacturer
Fuan Raygong Electrical Machinery co.,Ltd
BrandRaygong
ModelRGY-150
Country of originMindong,Fujian,China
power standby(kw/kva)150/187.5
power prime(kw/kva)144/180
output voltage(V)400/231
stand by amp(A)270
prime amp(A)260

ENGINE DATA

ManufacturerGuangxi Yuchai Machinery Group Co.,Ltd.
BrandYuchai
ModelYC6A230L-D20
engine power stand by(kw)170.5
engine power prime(kw)155
revolution per minute(rpm)1500
cylinders orientation4 single line
bore*stroke(mm*mm)108*132
injectiondirect
coolingwater cooled


ALTERNATOR DATA

ManufacturerFuan Raygong Electrical Machinery co.,Ltd
BrandRaygong
ModelRGI-150KW
output voltage(V)231/400
frequency(HZ)50
stationary voltage regulation±1%
short circuit current%300(10sec)
Number of phase3
Connecting typeY
Protection gradeIP23
Exciter typeBrushless ,self-exciting
Insulation ClassH
Alternator capacity(kva)187.5
power(kw)150







Packaging & Shipping

YUCHAI 60hz 110/220 volt brushless alternator generator

FAQ

Q:   what is you deliver time ?

A:    Within 30days after got your T/T deposit or LC

Q:    Is it all right to make customer brand name?

A:    You can OEM brand name if the quantity above the MOQ.

Q:   Where is your loading port?

A:    Fuzhou,China .

Q:   What are your payment term?

A:   30% deposit, the balance T/T against by the copy of B/L or L/C at sight.

Q: How to select generator?

(1).Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).

(2).Different country with different rated frequency(50Hz or 60Hz).

(3). For sea side operating environment,anti-condensation heater and droop CT.

(4). Generator insulation class H.(Inccopper wire,rotor,stator,)

(5). Generator stators are wound to 2/3 pitch. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches, when in parallel with the mains.

Company Information

1. FUAN RAYGONG ELECTRICAL MACHINERY CO.,LTD  with 15 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!

2. Main Product Lines:

a.Gasoline Generator Series: 0.75--6KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.

b.Diesel Generator Series: 5--720KW. CE certificates.

c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.

d.Water Pump Series: 1.5',2',3', 4' Water pumps. CE certificates.

e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.

f. Tiller Series: Garden,small farm,large field,ect.

g.IC Forklift Series, Electric Pallet Truck Series, Electric Stacker Series, OEM Offered .

YUCHAI 60hz 110/220 volt brushless alternator generator

YUCHAI 60hz 110/220 volt brushless alternator generator

YUCHAI 60hz 110/220 volt brushless alternator generator

YUCHAI 60hz 110/220 volt brushless alternator generator

YUCHAI 60hz 110/220 volt brushless alternator generator



Rgi series brushless ac synchronous generator,st stc series single phase three phase harmonic ac synchronous generators c series diesel generator sets, l series diesel generator sets weifang series diesel generator sets yuchai series diesel generator sets shangchai quanchai series diesel generator sets gasoline generator sets air cooled diesel generator sets generator spare parts avr control speed governor alternator sound proof generator sets pe series diesel generator sets accessories ats switch manual control panel gasoline generator water pump gasoline engine brushless alternator gener stc st alternator brushless generator
