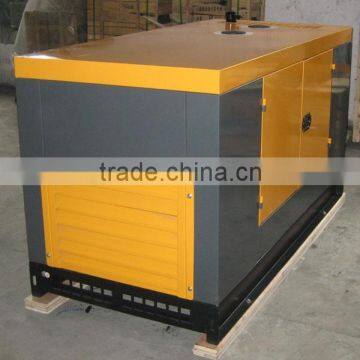

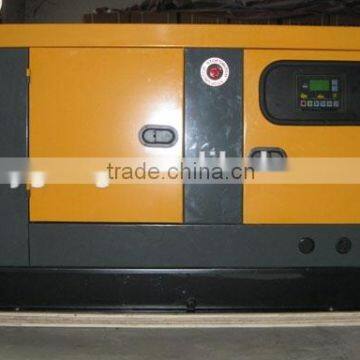

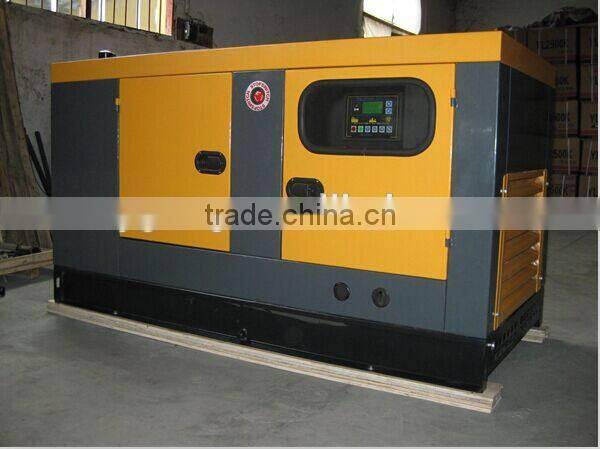

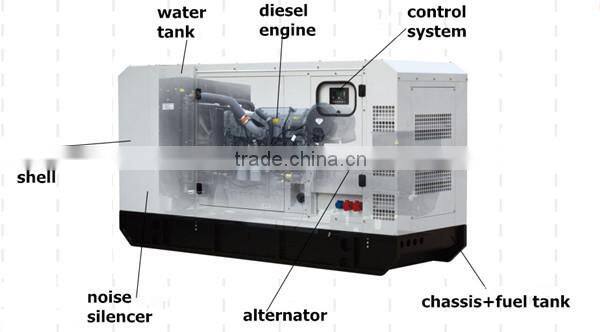

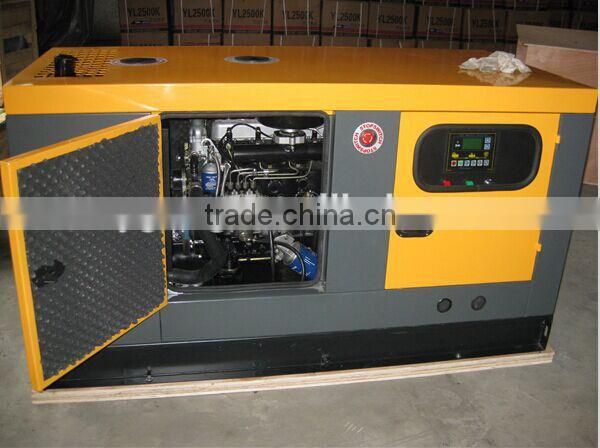

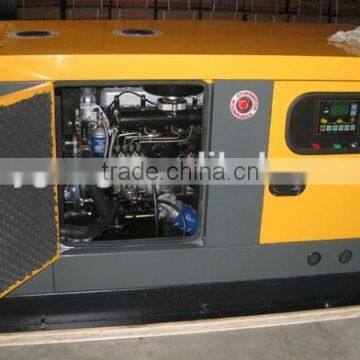

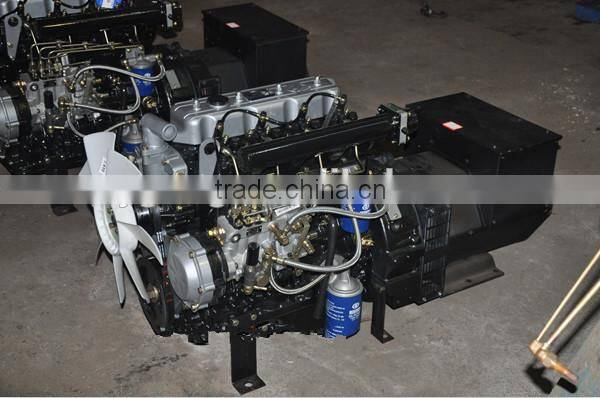

20kw three phase diesel generating set water cooled Yangdong engine Y4100G
| Generator set | |
| Model | GF2-20KW |
| Prime power | 20KW |
| Stanby power | 22KW |

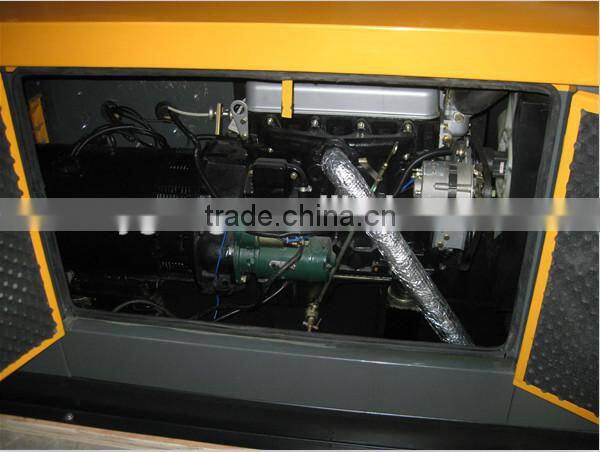

| Engine | |
| Model | Y4100G |
| Type | Vertical,water cooling,four stoke |
| Combustion chamber type | Direct injector |
| Number of cylinders | 4 |
| Bore(mm) | 100 |
| Stoke(mm) | 105 |
| Compression ratio | 18 |
| Total displacement(L) | 3.298 |
| Firing order | 1-3-4-2 |
| Rated power(KW) | 25/1500 30/1800 |
| Min.specific fuel consumption | ≤237 |
| at full load(g/kW.h) | |
| Cooling methed | Forced watercooling |
| Starting methed | Electric |
| Net mass | 300 |
| Overall dimensions(L*W*H)mm | 892×618×718 |
| Alternator | |
| Model | RGI184F |
| Prime power | 22KW |
| Stanby power | 24.2KW |
| Type | Brushless,self-excited,4 pole,H class insulation,IP22,AVR440 |
| Power Efficiency | 90.00% |
| Voltage Regulation | ±1.0% with 4% engine governing |
Q: what is you deliver time ?
A: Within 30days after got your T/T deposit or LC
Q: Is it all right to make customer brand name?
A: You can OEM brand name if the quantity above the MOQ.
Q: Where is your loading port?
A: Fuzhou,China .
Q: What are your payment term?
A: 30% deposit, the balance T/T against by the copy of B/L or L/C at sight.
Q: How to select generator?
(1).Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).
(2).Different country with different rated frequency(50Hz or 60Hz).
(3). For sea side operating environment,anti-condensation heater and droop CT.
(4). Generator insulation class H.(Inccopper wire,rotor,stator,)
(5). Generator stators are wound to 2/3 pitch. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches, when in parallel with the mains.

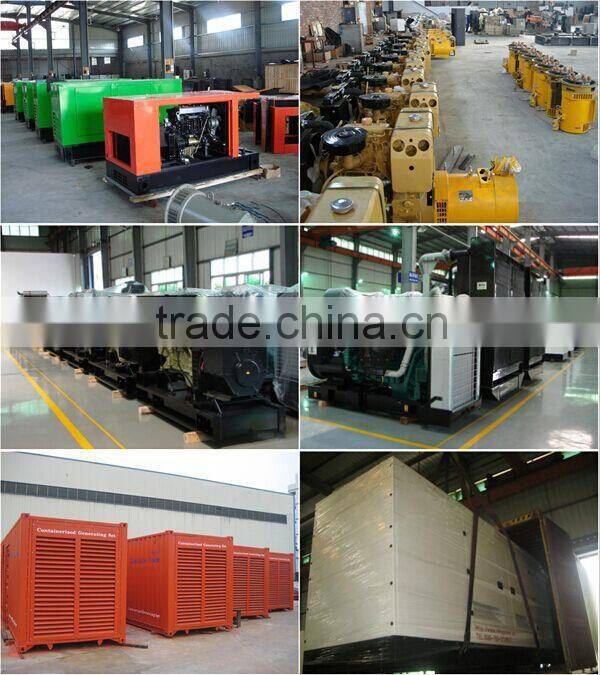

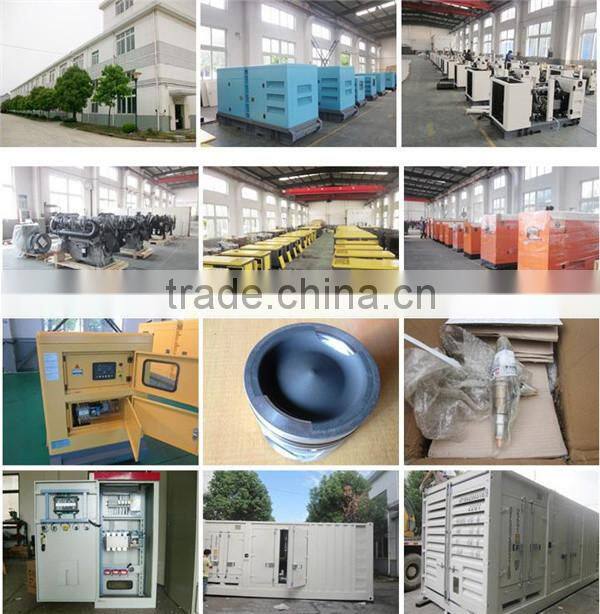

1. FUAN RAYGONG ELECTRICAL MACHINERY CO.,LTD with 15 years' manufacture & sales experience, we prefer LONG-TERM COORPORATION WITH YOU!
2. Main Product Lines:
a.Gasoline Generator Series: 0.75--6KW ,gasoline engine, recoil or electric start.OEM Offered . CE certificates.
b.Diesel Generator Series: 5--720KW. CE certificates.
c.Engine Series : 168,168F,170F,177F,182,188F.CE certifications.
d.Water Pump Series: 1.5',2',3', 4' Water pumps. CE certificates.
e.Pressure Washer Series: 2--10HP. diesel/ gasoline pressure washer.CE certificates.
f. Tiller Series: Garden,small farm,large field,ect.
g.IC Forklift Series, Electric Pallet Truck Series, Electric Stacker Series, OEM Offered .
Rgi series brushless ac synchronous generator,st stc series single phase three phase harmonic ac synchronous generators c series diesel generator sets, l series diesel generator sets weifang series diesel generator sets yuchai series diesel generator sets shangchai quanchai series diesel generator sets gasoline generator sets air cooled diesel generator sets generator spare parts avr control speed governor alternator sound proof generator sets pe series diesel generator sets accessories ats switch manual control panel gasoline generator water pump gasoline engine brushless alternator gener stc st alternator brushless generator
Any questions pls feel free to contact me, thanks!
