380KVA 304KW Stamford copy Brushless Generator alternator
100% copper 100% output H Class
Three phase,single bearing
CE ISO

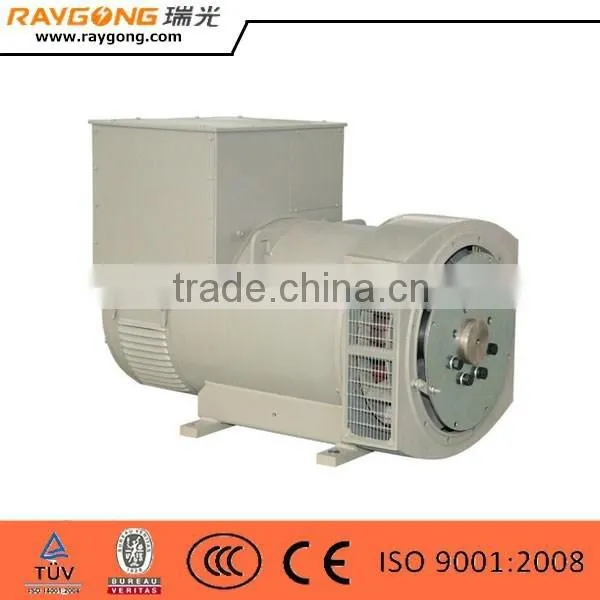

380KVA 304KW Stamford copy Brushless Generator alternator
RGI Series brushless three phase AC Alternator according to international advanced alternator producing technology design and develop new generation brushless AC synchronous alternator.
This series are suitable with most international standard. Such as GB755,EN60034,BS5000,VDE0530,NEMA MG1-32,IEC34 ect…
Machinery Character:
Steel made seat, iron casting cover, top silicon steel sheet, import ball bearing.
Install type: Single bearing installation with SAE connection and driving sheet.
Double bearing with standard shaft extension and flange connection cover.
Electrical Character:
Alternator adopt brushless excitation
Insulation: H ,Protection level:IP21 or IP23
State voltage adjusting rate≤±1% Transient adjusting rate+20%,-15%(60%In,COS≤0.4lag)
Null loading voltage wave distortion rate ≤5% Voltage adjusting range≥±10% UN
Environmental condition of applying, temperature≤40℃ height above sea level ≤1000m
Super function, reliable quality, convenient maintain, Alternator can be connected with prime mover in hard or flexible.
Using for small power station, factory, building, work side and so on as light up and motor power.
External Dimension

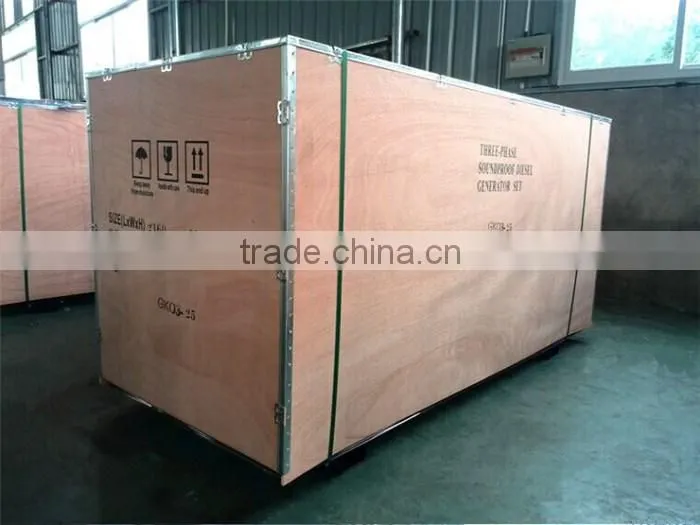

1.Covered with plastic film to prevent moisture.
2. Packed in standard export package with wooden cases.
Diesel generator set/Alternator: 12 months from shipment date.
Gasoline generator set:6 months from shipment date.
Spare parts:3 months from shipment date.
Factory Inspection: the test items before delivery are mainly as follows:
1.Each genset shall be put into commission more than 4 hours totally. They are tested on idle load, fully
load and 10% overload;
2.The noise level is tested

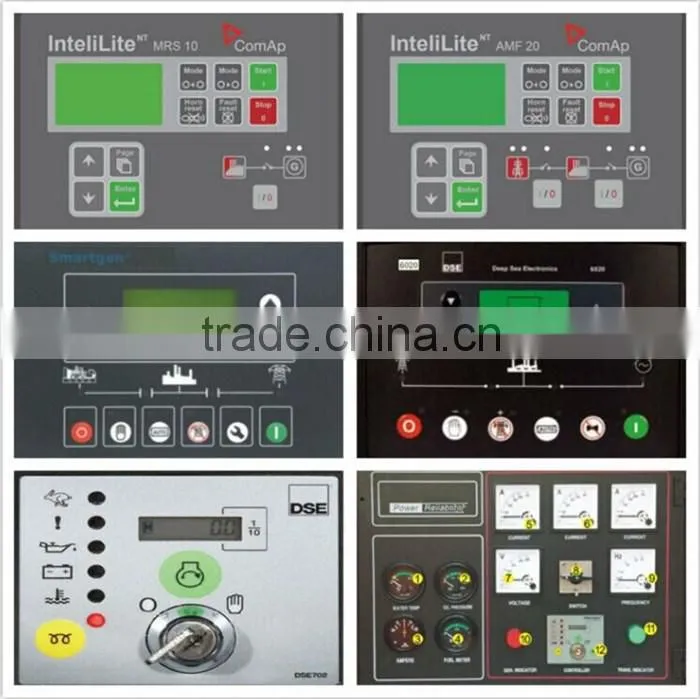

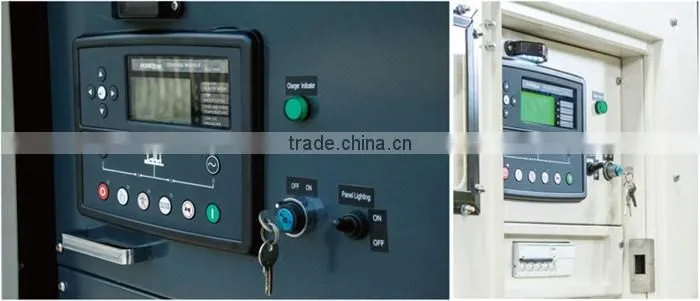

3.All of the meters on the control panel shall be tested
The appearance of the genset and all of the label and nameplate shall be checked
Ask product operation details, please consult the sales staff
<img src="/kf/HTB1O0SILXXXXXcrXXXXq6xXFXXXC/223323140/HTB1O0SILXXXXXcrXXXXq6xXFXXXC.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="701" ori-height="225">
<img src="/kf/HTB1n3gaLXXXXXchXVXXq6xXFXXXK/223323140/HTB1n3gaLXXXXXchXVXXq6xXFXXXK.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="700" ori-height="301">
<img src="/kf/HTB1QBCgLXXXXXbGXFXXq6xXFXXXj/223323140/HTB1QBCgLXXXXXbGXFXXq6xXFXXXj.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="700" ori-height="699">

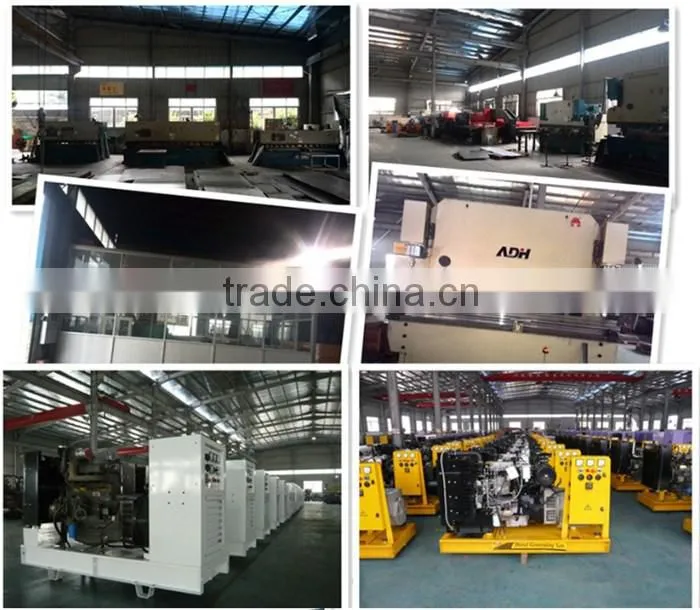

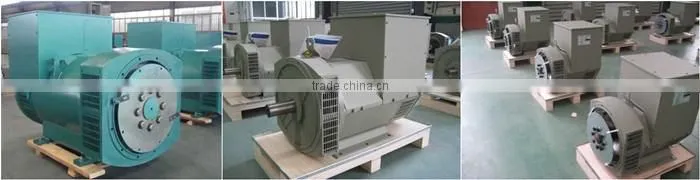

FUAN RAYGONG ELECTRICAL MACHINERY CO.,LTD is a professional manufacturer of AC brushless Alternators from 6kw to 2000kw.Our products have passed approval of quality management system ISO9001,ISO140001, and we also have achieved the international approval such as CE.
<img src="/kf/HTB1n_CbLXXXXXb3aXXXq6xXFXXXh/223323140/HTB1n_CbLXXXXXb3aXXXq6xXFXXXh.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="700" ori-height="180">
<img src="/kf/HTB1Dd5mLXXXXXb5XVXXq6xXFXXXa/223323140/HTB1Dd5mLXXXXXb5XVXXq6xXFXXXa.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="700" ori-height="263">
<img src="/kf/HTB1gY9yLXXXXXa.XXXXq6xXFXXXQ/223323140/HTB1gY9yLXXXXXa.XXXXq6xXFXXXQ.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="700" ori-height="179"><img src="/kf/HTB1h9CcLXXXXXXzXVXXq6xXFXXXb/223323140/HTB1h9CcLXXXXXXzXVXXq6xXFXXXb.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="700" ori-height="373">
<img src="/kf/HTB1GvtYLXXXXXcZaXXXq6xXFXXXj/223323140/HTB1GvtYLXXXXXcZaXXXq6xXFXXXj.jpg" alt="Good price electric generator 5/5.5kw Air cooled small silent diesel generator set" ori-width="700" ori-height="610">
1.Q: Classification of generator:
(1)Single phase or three phase is optional.
(2).Single bearing or double bearing is optional.
(3).PMG is optional
(4).Droop Kit and Anti-condensation heater are optional according to the operation environment.
(5).2 pole/4 pole/6 pole/8 pole alternators are optional.
2.Q:How to select generator?
(1).Working environment(less than 1000m above sea level & less then 40℃ ambient temperature).
(2).Different country with different rated frequency(50Hz or 60Hz).
(3). For sea side operating environment,anti-condensation heater and droop CT.
(4). Generator insulation class H.(Inccopper wire,rotor,stator,)
(5). Generator stators are wound to 2/3 pitch. The 2/3 pitch design avoids excessive neutral currents sometimes seen with higher winding pitches,when in parallel with the mains.
3.Q:What is your MOQ of this item?
A: Above 1pcs
4.Q: What is the lead time?
A: 15-20 days after receiving your L/C or T/T deposit.
5. Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
6. Q: Where is your Loading Port?
A: Fuzhou Port, China.Which is only 40km far away from our factory location.
7. Q: What are your payment terms?
A: 30% deposit and balance T/T against B/L copy or L/C at sight.
