Specifications
cnc woodworking machineWorking area 600*2500mm
Max cutting speed 20000mm/min
Max speed 35000mm/min
Adsord powe
Using industry:
Advertising signs,logo making,acrylic cutting,plastic molding,decorative products,a variety of materials,production fo advertising and others decarations.

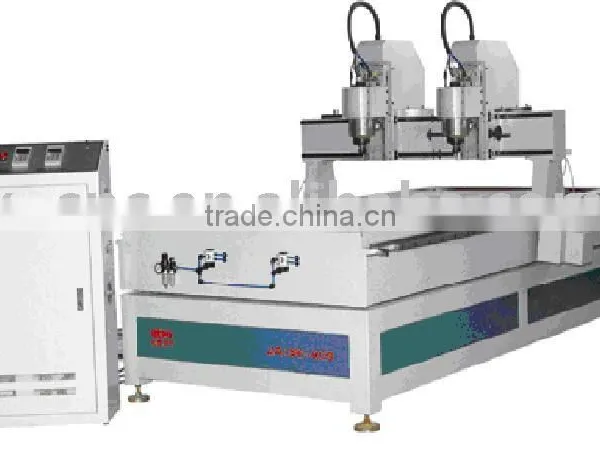

cnc woodworking machine XK45MT-2D cnc router Features:
1.Dural_spindle carving:At the same pattern can carried out double_spindle at the same timeto work,Greatly improve the processing speed of the plate.Two devices within the same time work efficiency.In some processing of the volume is not great for being able to achive single_axis to work independently.
2.When batch processing ,the product consistency is good ,high quality.
3. The whole lathe is thicking,scientific welded,so it will not be become distorted.
4. using imported straight _quadrated rail ,which imported from TaiWan.Two rows and four lines_rolling block devices that ensure it is high loading capacity and moves steadily.the imported screw rod from Germany is very precise.
5.independent control cabinet,DSP handle operations (scale U disk),work easier
ftware has good compatibility and is compatible with several design software such as type 3/artcam/castmate/weitai and variety of CAD/CAM design software generate code which is processing.Ensure that the design barrier_free.
7.High_precision rack_level rotation,strong impact
Specification:
Machine description |
XK45MT-2D machine |
Table size |
1440*3040mm |
Working area |
600*2500mm |
Max cutting speed |
20000mm/min |
Max speed |
35000mm/min |
X-Y axis movement |
Rack and pinion ,gear drive /Taiwan |
Z movement |
Ball screw drive /Germany |
Repeat positioning accuracy |
0.05mm |
Resolution ratio |
0.025mm |
Spindle rotating speed |
12000rpm/Min(single) |
Feed in height |
200mm |
Adsorb power |
4.5kw |
Working Voltage |
AC380/50-60Hz 3-phase |
Computer interface |
USB2.0 |
Controls |
DSP 0501(digital singnal processing) |
Command code |
HPGL,G |
|
1.vacuum hold down |
Equipment included |
2.Oil lubrication system |
3.clamps and vacuum fitting | |
|
4.dust-removal system
|
