Multi-function cnc rotary machine
- 130 Set / Sets per Month
- qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | HAWK | Model Number: | XK45-MT-DC |
Packaging Details
wooden case
Product Description
Specifications
cnc rotary machineSpindle power 4.5KW
Horizontal axis Power 3KW
Drive motors stepper
Horizontal axis speed 24000rpm

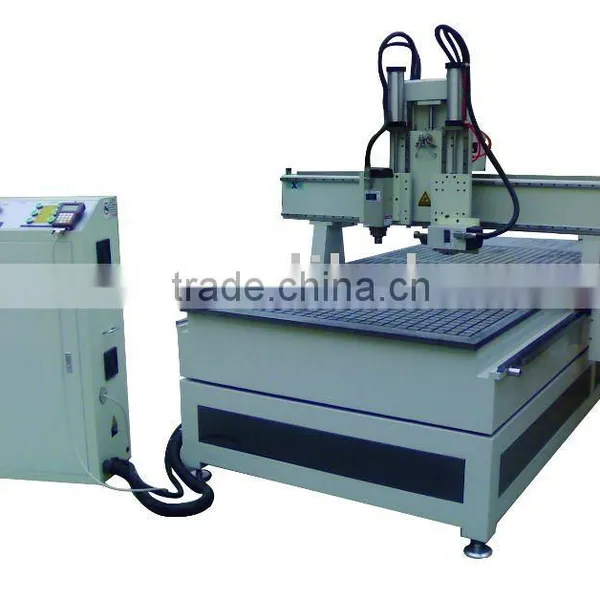

XK45-MT_DC cnc rotary machine (Horizontal drilling machine ) Feature:
1. The whole lathe is thicking,scientific welded,so it will not be become distorted.
2. using imported straight _quadrated rail ,which imported from TaiWan.Two rows and four lines_rolling block devices that ensure it is high loading capacity and moves steadily.the imported screw rod from Germany is very precise.
3. has a power outage continued carving ,power failure recovery,processing time prediction function ,the real humanism design come true.
4.software has good compatibility and is compatible with several design software such as type 3/artcam/castmate/weitai and variety of CAD/CAM design software generate code which is processing.Ensure that the design barrier_free.
Specification: XK45MT-DC (Horizontal drilling machine)
Model | XK45MT-DC |
Table size | 1440*3040mm |
X Y Z axis working area | 1300*2500*200mm |
X-Y movement | Rack and pinion ,gear drive |
Z movement | Ball screw drive |
Max cutting speed | 20000mm/Min |
Max speed | 35000mm/Min |
Repeat positioning accuracy | 0.05mm |
Resolutions | 0.025mm |
Adsorb power | 4.5kw /water cooling |
Spindle speed | 24000rpm/Min |
Inverter power | 7.5kw |
Horizontal spindle power | 3KW |
Inverter power | 3.7kw |
Working Voltage | AC380/50-60Hz 3-phase |
Command code | G code |
Drive motors | stepper |
Collet | ER 25~12.7mm.6mm,3.175mm |
Computer interface | USB 2.0 |
Software | Type 3 software/France |
Controls | DSP0501(digital signal processor) for two spindle |
Packing dimensions | 2200mm*3200mm*1850mm 1400kg |
Equipment available | a,Vacuum hold down b,Auto cut adjusting device c,Oil lubrication system d.Clamps and vacuum fitting |
Company Profile
Jinan creat star cnc router co.,ltd is a professional manufacturer specializing in the R&D,marketing and sales of cnc machines.Our products are widely applied in the wood engraving,mould making and drilling and non-metal engraving fields.
Our company covers an area of 2,000 m2 with 15 assembling lines,and has more than 30 experienced workers,well trained R&D and after-sales staffs.Each year,1000 sets of cnc machines and excellent service are provided for different demands.
our HAWK brand cnc machines are of CE certificate and have been exported to many countries in the world markets,besides, convenient distribution channels have been established in India, Ghana, Saudi Arabia,different customers from diverse industries have found our machines to be reliable and indispensable to their company.
Different cnc products can be provided according to the market demands,one is for the wood working,multiple functions,such as engraving,drilling ,cutting and slotting,can be well done on wood,MDF,aluminum,acrylic and marble;the second is for sign making,it can engrave and cut on acrylic,steel,plastic marble etc;the third is for mould making,it can engrave and drill on aluminum,metal,plastic for mould making,also gluing and engraving in the Expendable casting proces(ECP) can be well done;Besides,our brand laser machine can engrave and cut non-metal materials such as leather ,glass,acrylic and plastic.
Reliable distributors are urgently wanted in the world markets,and we look forward to establishing a long term businese relationship for mutual benefits.
