Help CenterJA1325ATC-0808 CNC Router Machine
Related Products
Specifications
JA1325ATC-0808 CNC router machine1.Imported liner guide rail
2.Vacuum table
3.With oiling system
4.DSP operation system
JA1325ATC-0808 CNC router machine
Using industry:
Chuangxing JA1325ATC-0808 Gantry-type CNC maching center is designed for the customers for a high standard, high demand, high degree of automation. Suitable for large-volume, all-weather processing of non-ferrous, metal plate.

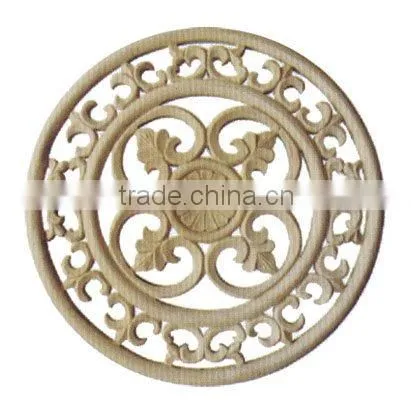

Funiture and Decoration: A large area flat plate engraving, wood, panel furniture carving, wood art murals, wood door, cabinet door sculpture.
Wood Product Industy: Sewing machine table, electrical counter face, sports equipment
Musical Instrument Industry: Three-dimensional surface can be carved musical instruments, shape cutting.
Model Features
1. Structural stability: Industry into the production model, heavy-duty full steel frame structure, welding, tempering efficient vector processing, solid non-deformed.
2. Good Parts: Taiwan LNC system, Italy HSD spindle motor.And the spindle bearings for high-precision ceramic bearings, low noise, long life.
Adopted from Taiwan Hiwin 30 linear rail, ball screw from Germany, bearing force, under the knife and accurate
To adopt Japanese Yaskawa servo drive system, torque and has a perfect security system.
3. Modular structure design: Select and add a variety of machining spindle configuration, can be sculpture, engraving, milling work.
4. A simple and secure mode of operation, advanced document pre-processing to ensure the speed and accuracy of operation
5. Automatic tool changing system , knife storage capacity 8 (Optional)
6. High adhesion, vacuum suction device, the displacement of up to 230 cubic meters / hour
7. Compatible: Open software interface, compatible with type3/arteam/castmate / Wentai a variety of CAD / CAM design software generate the processing code, to ensure the design of barrier-free.
Main technical parameters
Table Size |
1350*3100mm |
X.Y.X axis working area: |
1300*2500*200mm |
Repeatpositioning accuracy: |
±0.02mm |
Max material height: |
300mm |
Spindle Power |
8KW |
Spindle Speed: |
18000rpm/Min |
Max-speed: |
60000mm/Min |
Max-cutting speed: |
30000mm/Min |
System Resolution |
±0.002mm |
Working voltage |
AC380V/50HZ |
Command Code |
HPGL/G Code |
Notes:1. Optional domestic / imported spindle motor
2.Optional spindle motor cooling method:
Water-cooled/air-cooled
3. Optional vacuum adsorption unit
