refrigeration unit
1. Introduction:
a.Condensing unit for medium & high temperature (environment +12oC~ -10 oC)
b.Condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)
c.Equipped with semi-hermetic piston compressor
d.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.
e.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers’ heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on “Pressure Vessel of Refrigeration equipment” to ensure products’ quality.
f.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
g.We offer additional parts to meet your special requests.
Other components:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
If you need any further information, please feel free to contact us.
2. Specification:
| Model | Nominal Horse power | Nominal Ref. Capacity | Compressor power | Condenser | In and out of the tube diameter | |||
| Heat exchange area | Total volume air | Motor power | Air suction | Outlet pipe | ||||
| HP | R22(W) | KW | m² | m³/h | nxW | mm | mm | |
| 2FC2.2/FH18 | 2 | 3100 | 1.89 | 18 | 3400 | 1x180 | 16 | 10 |
| 2CC3.2/FH28 | 3 | 5230 | 3.04 | 26 | 4400 | 2x140 | 22 | 10 |
| 4FC3.2/FH33 | 3 | 5950 | 3.42 | 33 | 4400 | 2x140 | 22 | 12 |
| 4EC4.2/FH41 | 4 | 7360 | 4.24 | 41 | 6800 | 2x180 | 28 | 12 |
| 4DC5.2/FH50 | 5 | 9020 | 5.09 | 50 | 6800 | 2x180 | 28 | 12 |
| 4VCS6.2/FH60 | 6 | 12490 | 6.34 | 58 | 6800 | 2x180 | 28 | 12 |
| 4TCS8.2/FH72 | 8 | 15250 | 7.73 | 72 | 8800 | 4x140 | 35 | 16 |
| 4PCS10.2/FH80 | 10 | 17700 | 8.93 | 80 | 13600 | 4x180 | 35 | 16 |
| 4NCS12.2/FH100 | 12 | 20850 | 10.43 | 100 | 13600 | 4x180 | 35 | 16 |
| 4H15.2/FH120 | 15 | 26800 | 14.13 | 120 | 13600 | 4x180 | 42 | 16 |
| 4G20.2/FH160 | 20 | 30950 | 16.65 | 150 | 19200 | 4x250 | 54 | 22 |
| 6H25.2/FV200 | 25 | 40250 | 21.20 | 200 | 21600 | 4x780 | 54 | 22 |

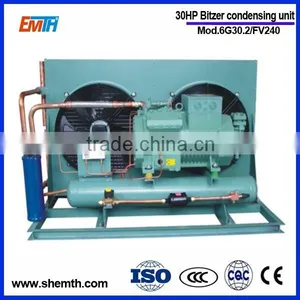

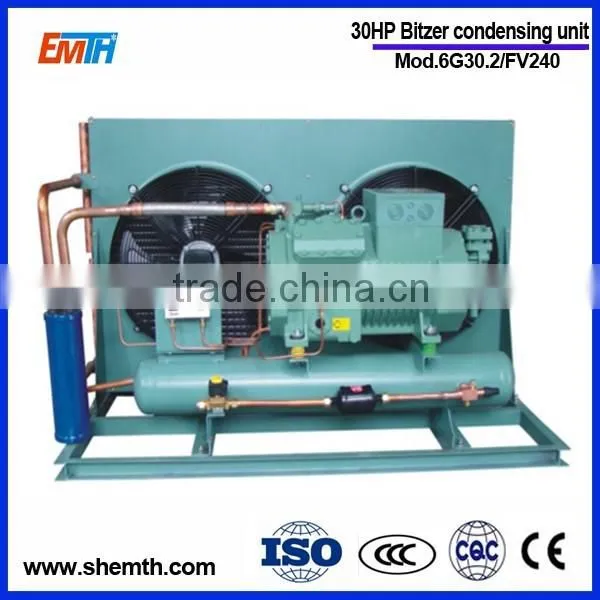

| 6G30.2/FV240 | 30 | 46500 | 25.00 | 250 | 24100 | 2x600 | 54 | 22 |
| 4F40.2/FV300 | 40 | 55600 | 30.40 | 300 | 32400 | 2x780 | 54 | 22 |

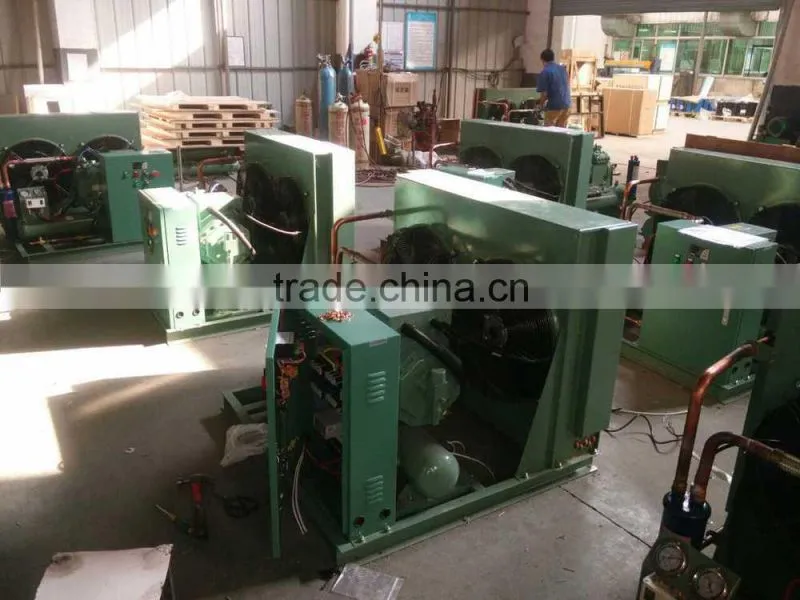

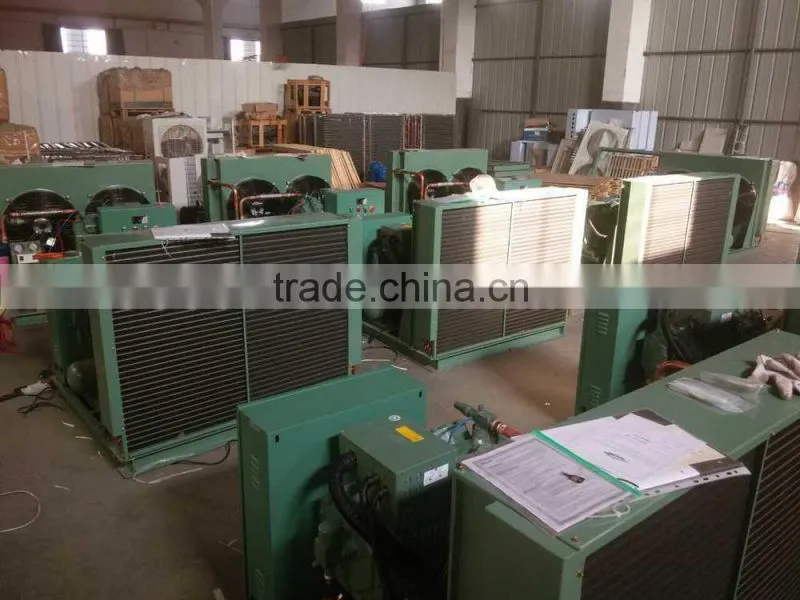

3. Workshop:

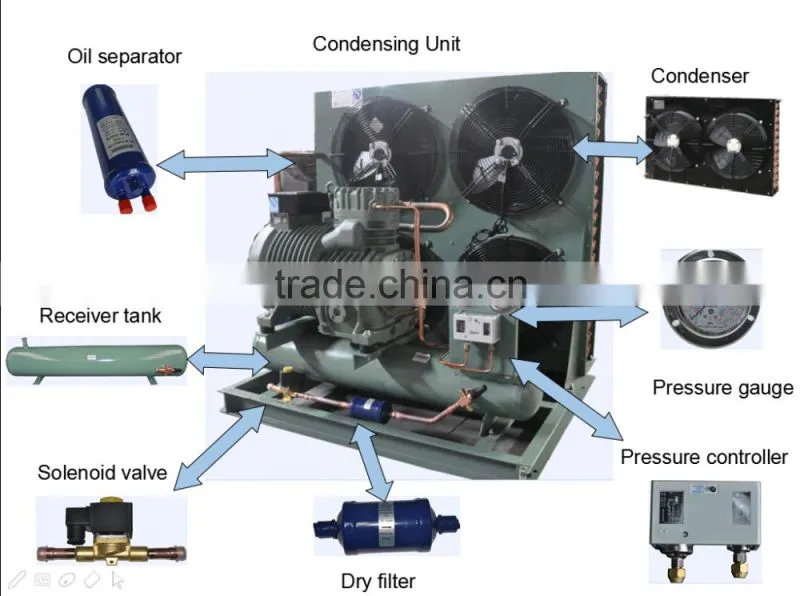

4. Main components:
All the products are packed with wooden case for exporting specially, fumigation is not needed.
We have professional shipping company like MSK, CMA, MSC, CSCL, COSCO, MOL to support us on shipment, ship our products to your hand easily.
Shanghai EMTH Import & Export Co., Ltd., as a sole agent of Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in providing air coolers/evaporators, air cooled condensers, condensing units to people who are interested in them.
With professional technical support, progressive production equipment, together with honesty and concentration, both the refrigeration equipment are being exported to countries like the United States, Canada, Germany, middle-east, etc.
Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to people who needs.
We are sure EMTH will provide best solution for you.
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
