Product Description
Introduction
Refrigeration equipment consists of compressor, condenser,receiver tank,dry filter, pressure control, etc. We use the Copeland brand scroll compresso,Bitzer semi-hermetic compressor,Danfoss,Emerson and other brand spare parts, so to make sure the whole system is in excellent performance.
Tech. Data
| Model | Compressor | The wind condenser specification | Power supply | In and out of the tube diameter | ||||||
| Power | Capacity R22 | Model | Heat exchange area | Fan Dia. | Total air volume | Motor power | Back to air interface | Outlet pipe | ||
| HP | KW | m² | mm | m3/h | nxW | ømm | ømm | |||

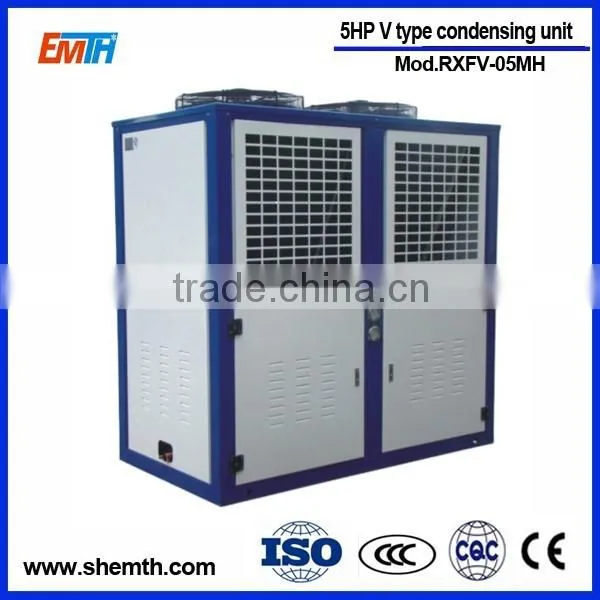

| RXFV-05MH | 5 | 9.0 | BF5Z4 | 60 | 400 | 6800 | 2x180 | 380V 3Ph 50Hz |
28 | 16 |
| RXFV-08MH | 8 | 15.2 | BF8Z4 | 80 | 450 | 9600 | 1x250 | 28 | 16 | |
| RXFV-10MH | 10 | 17.7 | BF10Z4 | 100 | 500 | 13000 | 2x450 | 35 | 19 | |
| RXFV-12MH | 12 | 20.8 | BF12Z4 | 120 | 550 | 17400 | 2x600 | 35 | 19 | |
| RXFV-15MH | 15 | 27.3 | BF15Z4 | 140 | 550 | 17400 | 2x600 | 35 | 19 | |
| RXFV-20MH | 20 | 31.5 | BF20Z4 | 200 | 600 | 21600 | 2x780 | 42 | 22 | |
| RXFV-25MH | 25 | 40.3 | BF25Z6 | 240 | 550 | 26100 | 3x600 | 42 | 22 | |
| RXFV-30MH | 30 | 47.2 | BF30Z6 | 300 | 600 | 32400 | 3x780 | 42 | 22 | |
| RXFV-40MH | 40 | 56.50 | BF40Z6 | 350 | 630 | 36600 | 3x800 | 42 | 22 | |

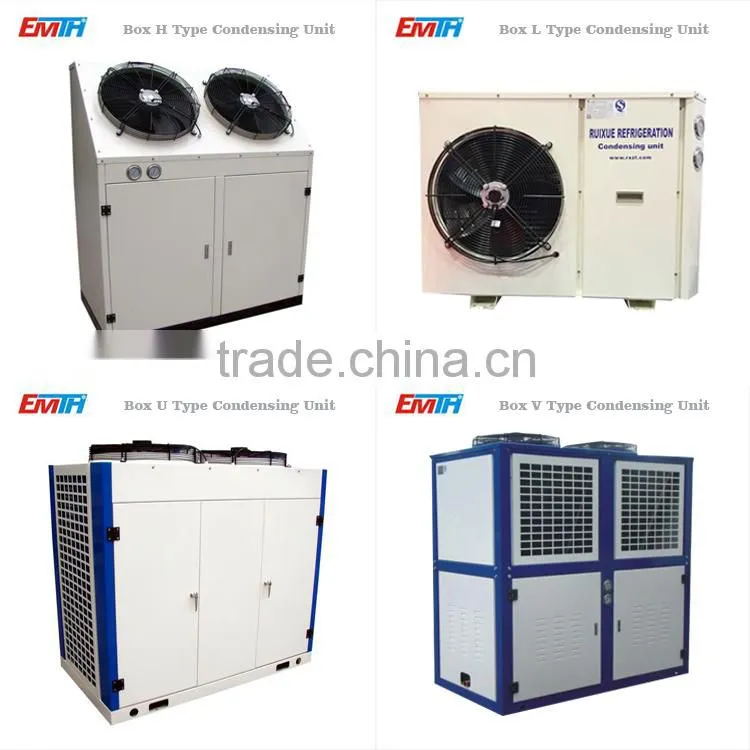

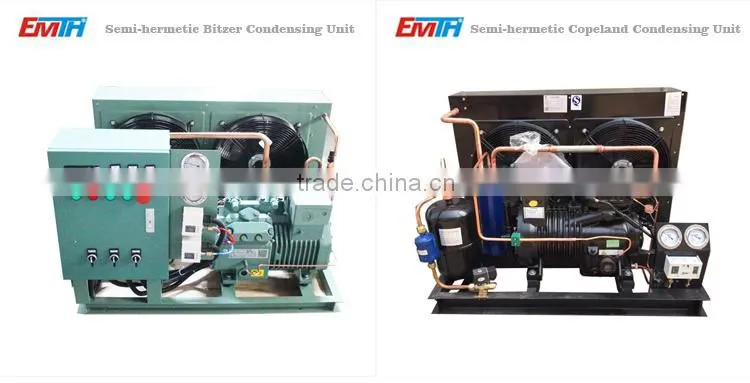

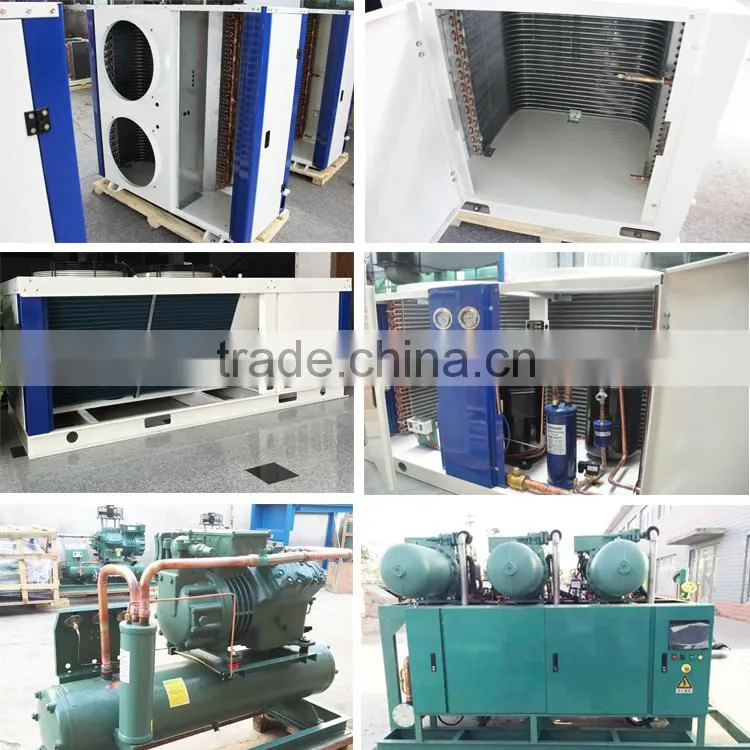

Other Condensing Units

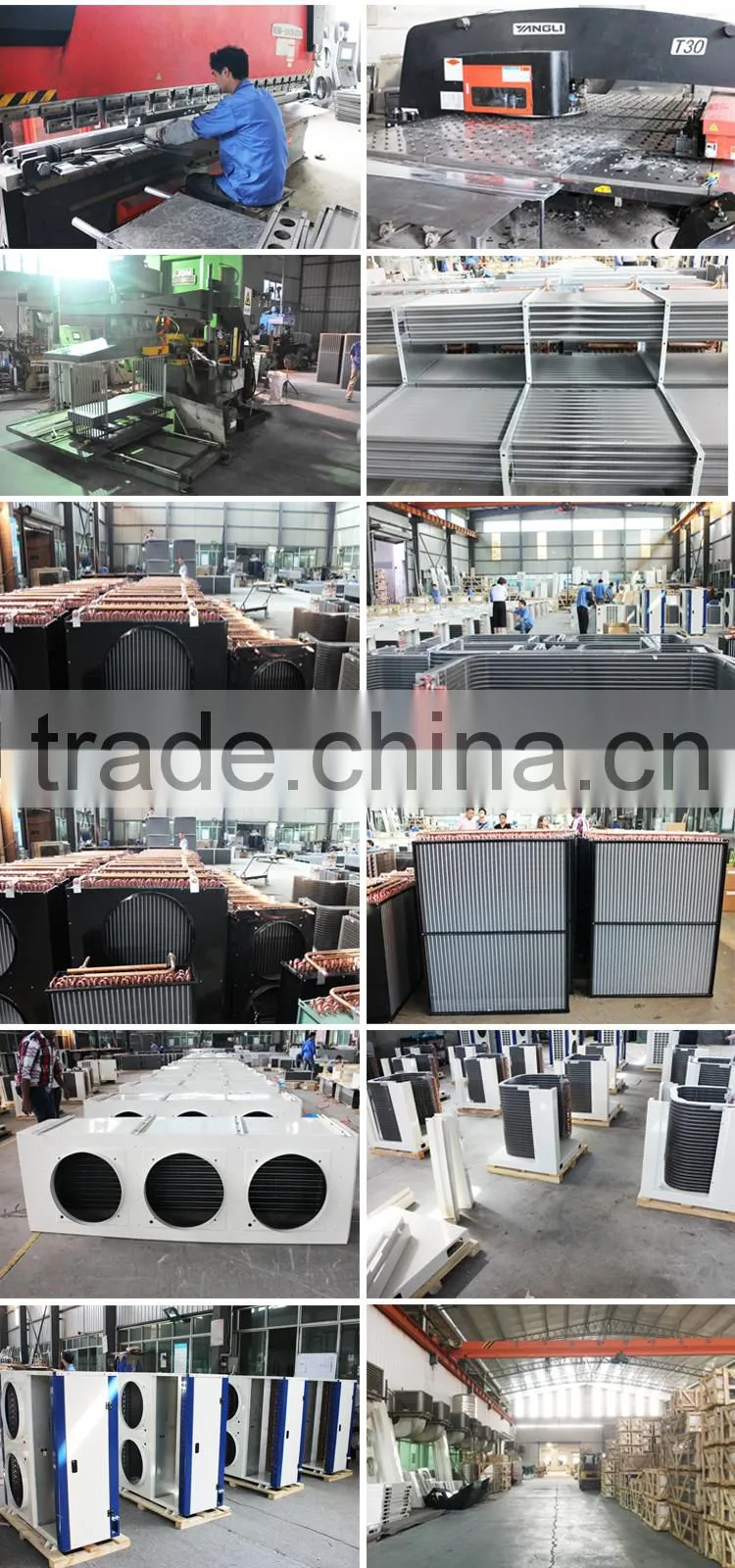

Workshop
Abroad Exhibition

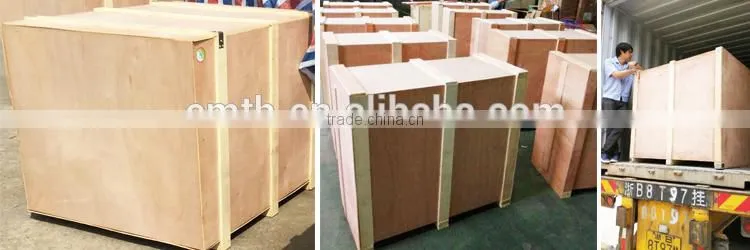

Packaging & Shipping
We have professional shipping company like MSK, CMA, MSC, CSCL, COSCO, MOL to support us on shipment, ship our products to your hand easily.
All the big products are packed in wooden case for exporting specially, fumigation is not needed.
All the small products are packed in cartons for exporting specially.
Company Information

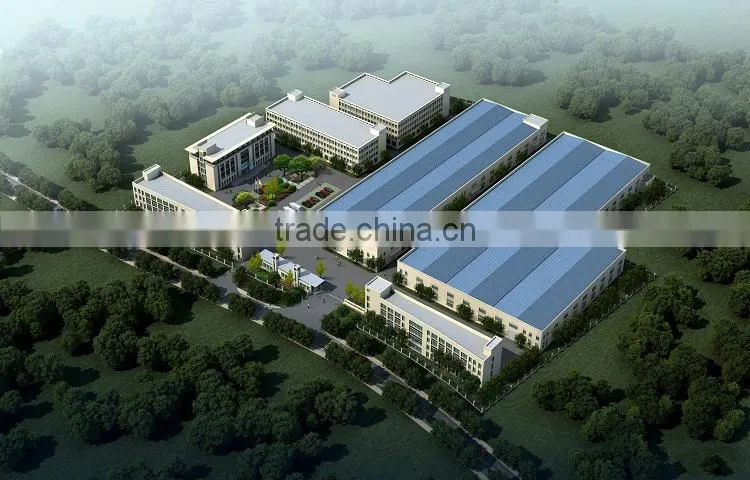

Shanghai EMTH Import & Export Co., Ltd., as a sole agent of Zhejiang RUIXUE Refrigeration Equipment Technology Co., Ltd. located in Shengzhou, Zhejiang province. We are specialized in manufacturing air coolers/evaporators, air cooled condensers, air cooled/water cooled condensing units, cold room panels/doors to people who are interested in them. One-stop service is available at our side, that means you will get everything for whole refrigeration system.
With professional technical support, progressive production equipment, together with honesty and concentration, the refrigeration equipments are being exported to countries like the United States, Canada, UK, Ireland, Dubai, Australia, etc.
Thanks to the great support and positive feedback from customers, we EMTH has win high reputation from our existing customers. All of these will be a greatest inspiration for us to provide better service and quality products to you!
We are sure EMTH will provide best solution for you!
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou
international airport, it is about 100km from airport to our factory.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, South America, Europe and USA.
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
Welcome to contact us for more details!
