HBYV network use indoor Telephone cable
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | RX-HBYV telephone wire | Type | Coaxial | |
| Number of Conductors | 2 |
Product Description
TELEPHONE NETWORK USERS-CORE INDOOR COPPER
CABLE DESCRIPTION
Inner Conductor Diameter:Φ0.4mm,Φ0.6mm,Φ0.7mm,Φ0.9mm,Φ1.0mm,Φ1.13mm
Insulation:PE or PVC
Insulation Color:as per customer's request
Sheath: PE , black;PVC ,white

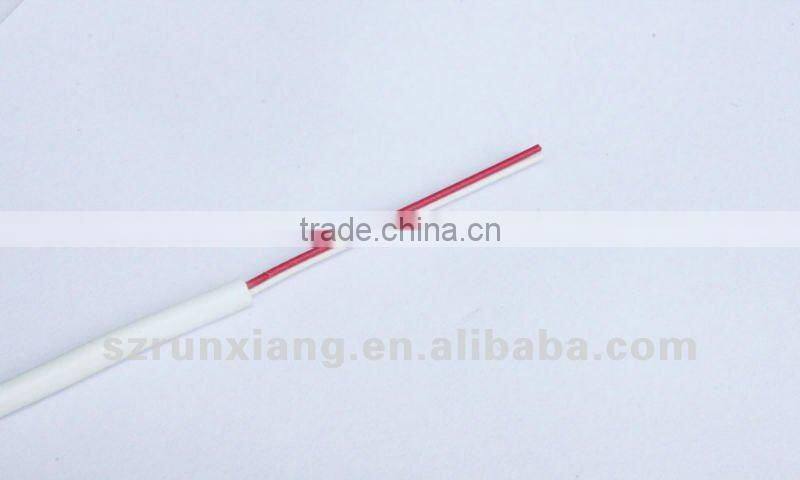

PRODUCTS PICTURE
ELECTRIC CAPACITY
NO. | Conductor Wire Diameter (mm) | Conductor DC Resistance (20°C) | Wire Insulation Resistance (MΩ/km) | Conductor Resistance Unbalance (%) |
1 | 0.4 | ≤148 | 10000 | ≤5 |
2 | 0.5 | ≤95.0 | 10000 | ≤5 |
3 | 0.6 | ≤65.8 | 10000 | ≤5 |
4 | 0.7 | ≤48.0 | 10000 | ≤5 |
5 | 0.8 | ≤36.6 | 10000 | ≤5 |
6 | 0.9 | ≤28.5 | 10000 | ≤5 |
7 | 1.0 | ≤24.5 | 10000 | ≤5 |
8 | 1.0(copper clad steel) | ≤107 | 10000 | ≤5 |
