Specifications
25 pair telephone cable1.facttory price
2.LSZH outer sheath
3.Top quality and best price
4.Fast delivery

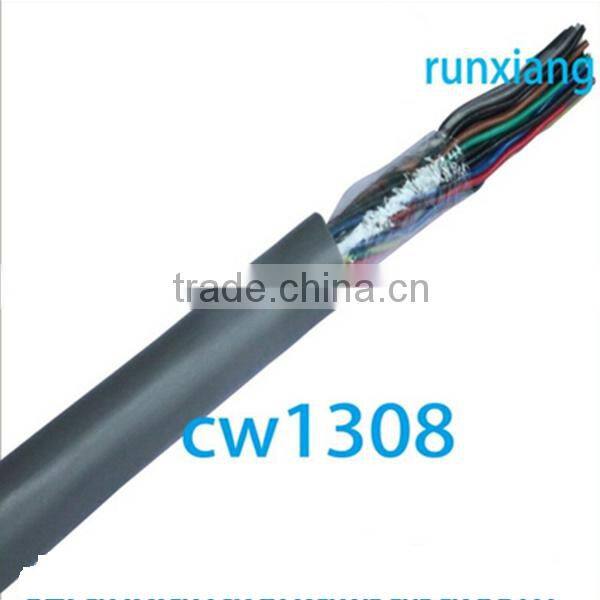

Hot sale cw1308 new 25 pair telephone cable
| Product Description |
Conductor
Number of pairs:25
Total number of the conductor:50
Material:BC-soft twisted copper wire
Wire guage:24WG
Length of lay≥15‰
Paired
Mylar:PET(25um)
Ribbon:white and blue
Ribbon specification:0.09×4mm
Insulation
Material:PVC
Min.thickness:0.15mm
Nominal thickness:0.175mm
Diameter over sheath:0.85±0.03mm

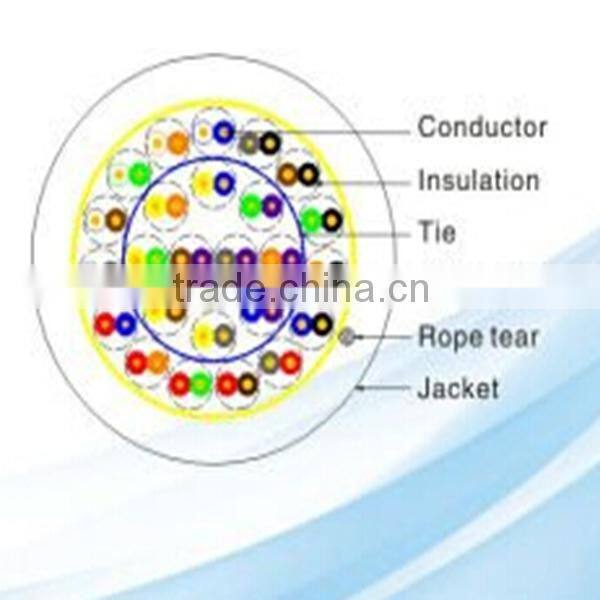

The color code you can see the order of the pairs
Outer jacket
Material:LSZH
Color:white
Outer sheath rip cord:200D*3
Nominal thickness:0.85±0.05mm
Min thickness:0.8mm
Outer jacket diameter:10.0±0.50mm
Mark:per client requirement
Test item
1.Single conductor DC resistance:max Ω/km≤97.8
2.Pairs capacitance unbalance pF/500m≤500
3.Between conductors dielectric strengthkv/min≥1.0
4.Insulation DC resistance MΩ.km≥50
5.The insulation wire core disconnection,mix line-constantly line,don't mix line
| Product Picture |
| Our Factory |
