S6 Dual Clamping Standard Theodolite Tripod Light
Negotiable
MOQ: 100 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
ME
Model Number:
S6
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Tianjin, China
Brand Name
ME
Model Number
S6
S6 Dual Clamping Standard Theodolite Tripod Light
Product Description
Main Feature
· Designed to give maxiumum stability for a wide range of instruments.
· The component parts are die-cast mental,finished in scratchproof epoxy powder paint coating.
· Quick lock and Twist Lock leg clamps allow for quick and easy setup combined with ultimate stability.
· Safety chains on legs prevent slipping on hard surfaces.
· Sturdy hook attachment for suspending plumbing accessories.
· The machined head is precision finished to accept all survey instruments,large and small.
· Complete with strap.
Specification
| Theodolite Tripod Model | Head Type | Lock Style | Head Size (mm) | Head Bore (mm) | Max Height (mm) | Min Height (mm) | N.W. (kg) | G.W. (kg) |
| J-P1 | Flat | Up Quick | 160 | 67.5 | 1645 | 1030 | 4 | 5 |
| J-P2 | Down Screw | 160 | 67.5 | 1655 | 1030 | 4 | 5 | |
| J-P3 | Double | 160 | 67.5 | 1645 | 1030 | 4.2 | 5.2 | |
| J-Q1 | Domed | Up Quick | 160 | 67.5 | 1645 | 1030 | 4 | 5 |
| J-Q2 | Down Screw | 160 | 67.5 | 1655 | 1030 | 4 | 5 | |
| J-Q3 | Double | 160 | 67.5 | 1645 | 1030 | 4.2 | 5.2 | |
| J-R1 | Round | Up Quick | 167 | 68.5 | 1645 | 1030 | 4.2 | 5.4 |
| J-R2 | Down Screw | 167 | 68.5 | 1655 | 1030 | 4.2 | 5.4 | |
| J-R3 | Double | 167 | 68.5 | 1645 | 1030 | 4.4 | 5.6 |

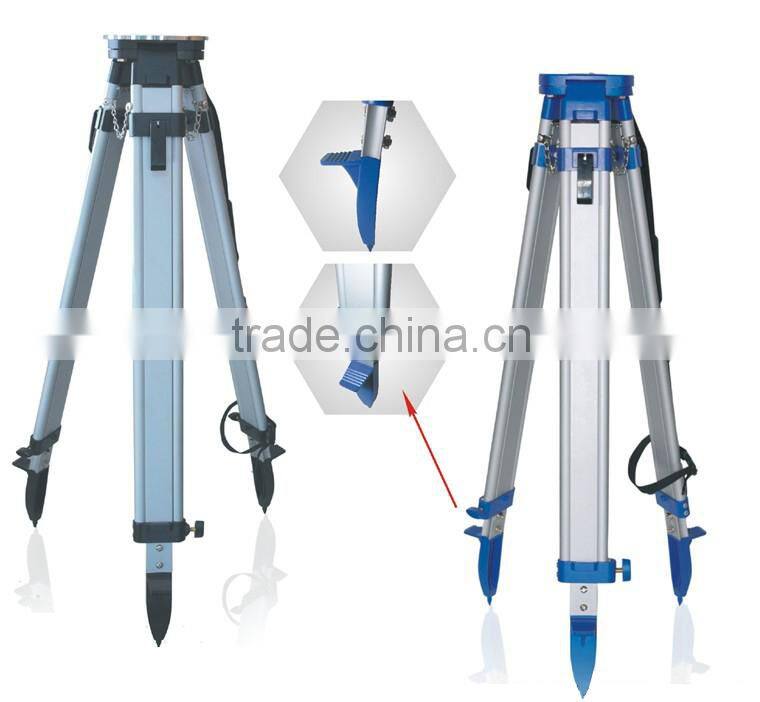

S6-2 Series Aluminum Auto Level Tripod
Specification
| Aluminum (Auto Level) Tripod Model | Head Type | Lock Style | Head Size (mm) | Head Bore (mm) | Max Height (mm) | Min Height (mm) | N.W. (kg) | G.W. (kg) |
| S-P1 | Flat | Up Quick | 125 | 42 | 1600 | 980 | 3 | 4 |
| S-P2 | Down Screw | 125 | 42 | 1610 | 980 | 3 | 4 | |
| S-P3 | Double | 125 | 42 | 1600 | 980 | 3.1 | 4.5 | |
| S-Q1 | Domed | Up Quick | 125 | 42 | 1600 | 980 | 3 | 4 |
| S-Q2 | Down Screw | 125 | 42 | 1610 | 980 | 3 | 4 | |
| S-Q3 | Double | 125 | 42 | 1600 | 980 | 3.1 | 4.5 |

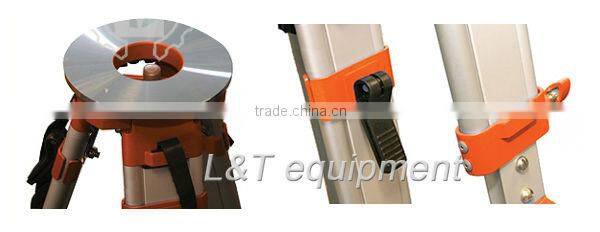

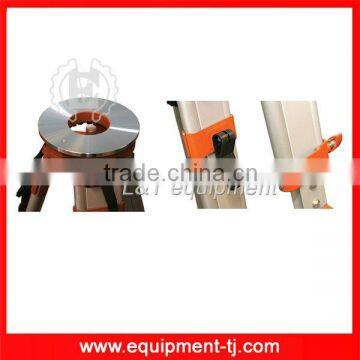

Sample Picture
Packaging & Shipping
Standard Carton Packing:
Packing List
| Theodolite Tripod Model | Carton Size(mm) | Unit/ Carton |
| J-P1 | 1060*200*220 | 1 |
| J-P2 | 1060*200*220 | 1 |
| J-P3 | 1060*200*220 | 1 |
| J-Q1 | 1060*200*220 | 1 |
| J-Q2 | 1060*200*220 | 1 |
| J-Q3 | 1060*200*220 | 1 |
| J-R1 | 1060*200*220 | 1 |
| J-R2 | 1060*200*220 | 1 |
| J-R3 | 1060*200*220 | 1 |
| Auto Level Tripod Model | Carton Size(mm) | Unit/ Carton |
| S-P1 | 1010*180*200 | 1 |
| S-P2 | 1010*180*200 | 1 |
| S-P3 | 1010*180*200 | 1 |
| S-Q1 | 1010*180*200 | 1 |
| S-Q2 | 1010*180*200 | 1 |
| S-Q3 | 1010*180*200 | 1 |
