Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > Shenzhen Lan Cable L3.IN-UTP2-24-PVC Cat3 Cable
Shenzhen Lan Cable L3.IN-UTP2-24-PVC Cat3 Cable
US$ 0.07 - 0.2
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
runxiang
Model Number:
RX-UTP cat3
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cat6 Network Cable UtpNegotiableMOQ: 20000 Meters -
Cat6 Cable UTP Network Cable 23AWGNegotiableMOQ: 20000 Meters
-
Cat6 Cable UTP Indoor Network CableUS$ 104 - 116MOQ: 20 Kilometers
-
Best Price Utp Cat6 Lan Cable by Made in ChinaUS$ 0.1 - 1MOQ: 5000 Meters
-
2014 New INDOOR Telephone CAT 3 CABLEUS$ 0.1 - 10MOQ: 500 Meters
Place of Origin
Guangdong, China
Brand Name
runxiang
Model Number
RX-UTP cat3
Type
Cat 3
Number of Conductors
2
Specifications
cat3 cable1.OEM is ok
2.factory price
3.high standard
| Product Description |
Section
Feature
1.small diameter,can save the space
2.light weight ,easy to curve ,flexible to splice
3.can reduce the harass
4.have the good inflaming retarding
5.Siut for the structure complex splice
we handle this items for many years and can meet your reguirement
Electrical Characteristics | ||||||
| Test Item | Units | Spec | ||||
| Conductor DC Resistance 20°C | Ω/100m | ≤9.5 | ||||
| Unbalance of Pair DC Resistance 20°C | % | ≤2.5 | ||||
| Dielectric Strength between Pairs | kv/min | ≥1.0 | ||||
| Insulation Resistance | MΩ·km | ≥5000 | ||||
| Capacitance | nF/100m | ≤6.6 | ||||
| Unbalance Capacitance | pF/100m | ≤330 | ||||
| Characteristic impedance(1 to 100MHz) | Ω | 100±15 | ||||
| Short or Open of the loop | — | None | ||||
| Shield | — | — | ||||
| Pair Color Code Chart | Other Characteristics | |||||
| pair NO | color | net weight | 16 kg/km | |||
| 1 | a | White | Length | 305m Pully Box | ||
| b | Blue | 500m Pully Box | ||||
| 2 | a | White | 1000m Plywood | |||
| b | Orange | 2000m Plywood | ||||
| Mechanical Characteristics | ||||||
| Test Object | Sheath | |||||
| Test Material | PVC | |||||
| Before Tensile Strength(Mpa) | ≥13.5 | |||||
| Aging Elongation(%) | ≥150 | |||||
| Aging Condition(°C×hrs) | 100×168 | |||||
| Before Tensile Strength(Mpa) | ≥12.5 | |||||
| Aging Elongation(%) | ≥125 | |||||
| Cold Bend(-20±°C×4hrs) | No crack | |||||
| Operating Temperature Range | -20°C To +75°C | |||||
| Min.Bending Radius(Install) | 8×D | |||||

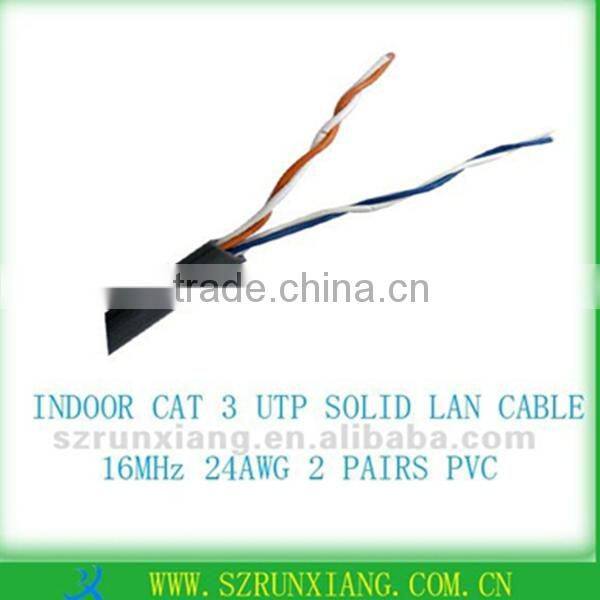

| total name | INDOOR CAT 3 UTP SOLID LAN CABLE 16MHz 24AWG 2 PAIRS PVC | |||||
| Part No. RX-L3.IN-UTP2-24-PVC | ||||||
