Home > Instruments & Meters > Test Instrument > Test Machine > HT-75 Brick Test Hammer
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Tianjin, China
Brand Name:
ME
Model Number:
HT-75
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang of China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Tianjin, China
Brand Name ME
Model Number HT-75
Power Electronic
Usage Compression Testing Machine

Specifications

HT-75 Brick Test Hammer
Test light material such as brick, light bone concrete etc
Center rod use imported material

Concrete Test Hammer HT-75





Product Description

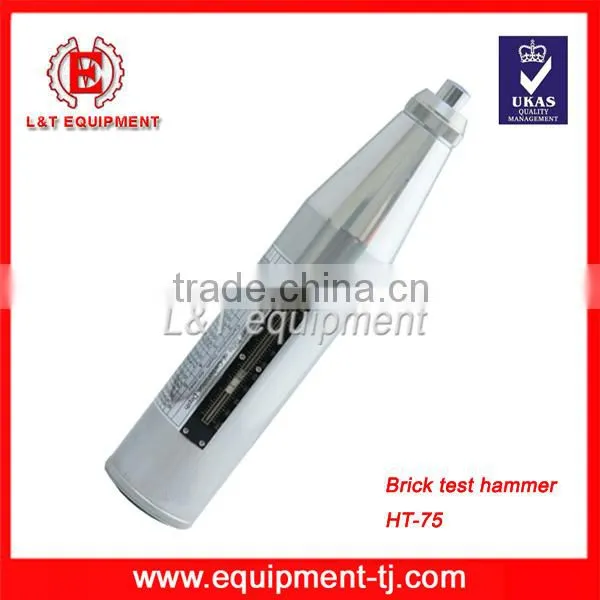

HT-75 Brick Test Hammer



HT-75 belong to light energy test hammer, used to test compressive strength of light materials like brick, thin concrete and light board.



Specifications of HT-75

Impact energy:

0.735J

Length of spring stretch

75mm+-0.3mm

The static friction of pointer slider

0.4N-0.6N

Radius of spherical tip

25mm+-1mm

The average rebound values on steel anvil

74+-2

Size

54x 268mm

weight:

1kg



HT-75 Brick Test Hammer



Brief introduction

Submit to standard of GB/T50315-2000,the instrument is applied to test light material such as brick, light bone concrete etc.

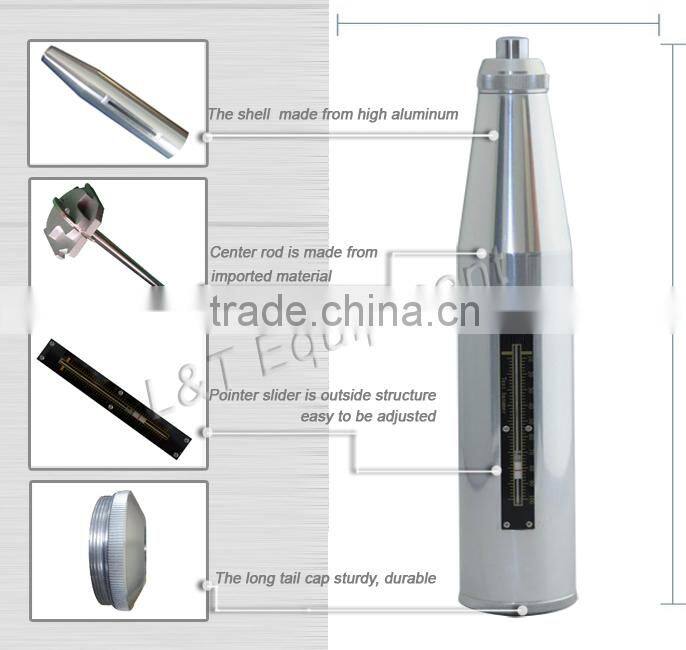

Trait

1)Center rod use imported material, high precision, wear proof;

2)Shell use super hard aluminums, protect instrument from damage on site test work, prolong use life;

3)Pointer slider is outside ring structure, easy to adjust friction, and assure equal friction between pointer slider and axis. And assure the precision of instrument, compare with similar other brand product, it’s good precision, longer use life and better price. Specially suitable for brick factory or brick user

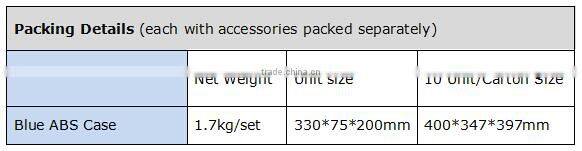

Packaging & Shipping

 HT-75 Brick Test Hammer

Company Information





HT-75 Brick Test Hammer

HT-75 Brick Test Hammer

HT-75 Brick Test Hammer

HT-75 Brick Test Hammer





Our Services

HT-75 Brick Test Hammer





FAQ

HT-75 Brick Test Hammer
