Crack Width Gauge
CK-102 of quantitative detection of crack width gauge can be widely used in bridges, tunnels, buildings, concrete pavement, metal surface crack width.
Main Technical Parameters | |
The maximum detection range |
0-8mm |
Accuracy |
better than 0.01mm |
Magnification |
40 times |
The operating temperature |
-20-60 |
Hose interface |
standard USB |
The storage |
can be stored for more than 3000 photos (SD Card is free to expand) |
Image storage format |
BMP format 24 bit color 320*240 |
Power supply |
lithium battery, standby time: 18 hours |
Size |
Host 113x70x16.5mm |
Probe |
48x56x58mm |
Weight |
host 100 grams, 100 grams of the probe |
Features

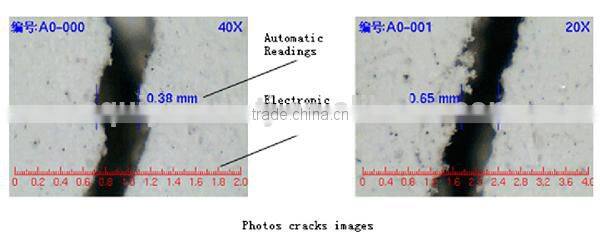

1. An automatic interpretation of the crack width, directly to the crack width values aredisplayed on the screen;
2. Automatic shooting crack photos, real-time image display;
3. Stored photos, data can be playback viewing;
4. probe (camera) comes with lighting fixtures, work around the clock, from the lightchanges;
5.Simple alignment of cracks can be automatically reading, without any set up, fooloperation;
6.Crack photo as a standard BMP format, direct shoot storage to any U disk / SD card;
7.The only in the cracks in the photo while preserving fracture images, the width of thedata, scales, zoom factor and the crack number;
9 .Host and the probe share a lithium battery-powered.
10. Reference specification: GJG125-99 "dangerous building appraisal standards.
