fiber laser welding machine for stainless steel
Handheld fiber laser welding machine for stainless steel fiber optic condenser welding machine

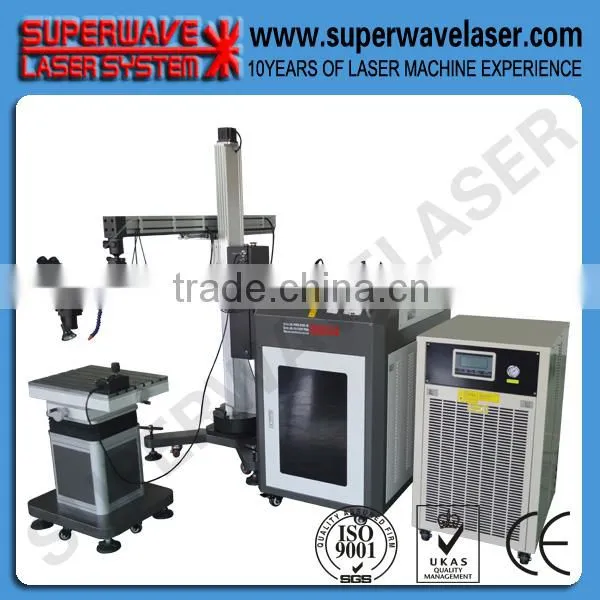

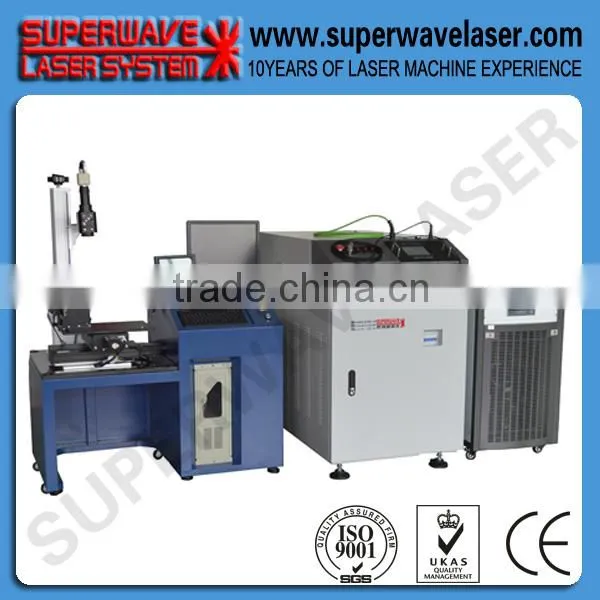

Machine picture
Feature
1.Fiber laser transition, excellent laser beam, slim laser spot, flexible installation.
2.Set the shape of laser wave randomly and 99 sets data can be stored. Closed-circuit control.
3.Installed with LCD and CCD monitor.
4.Be able to work in hard working environment, such as lashing, shaking, high temperature and dusty.
5.Pocket laser head can move in the direction of X, Y and Z and rotate in different angle and direction to locate on work pieces.
6.Suitable for large, middle and compact mould amendment.

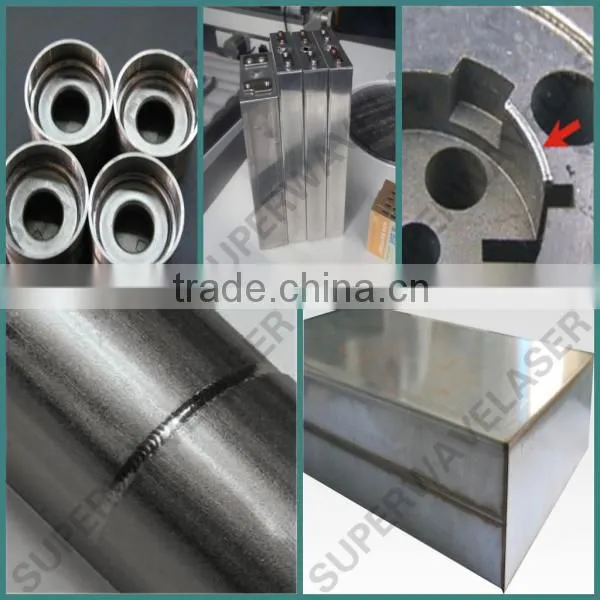

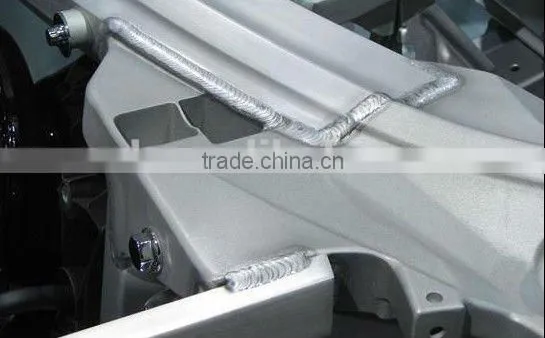

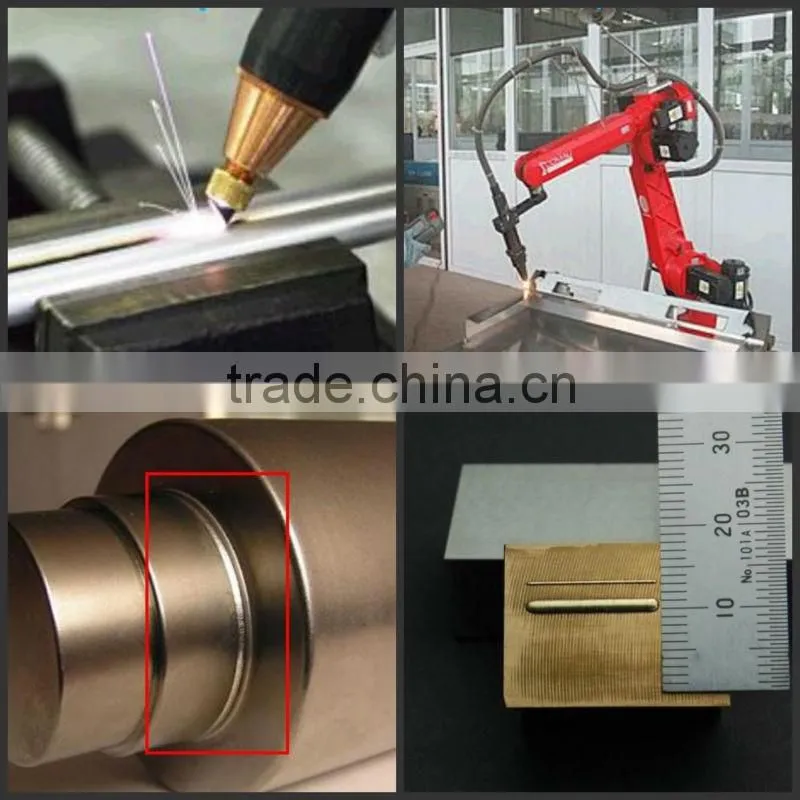

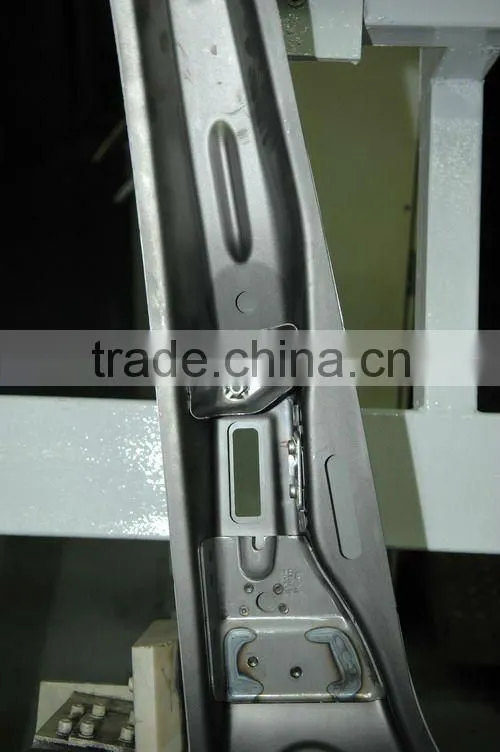

Application
Metal surface welding, electronic components, integrated circuit (IC), electrical appliances, mobile communications, metal products, tools accessories, precision instrument, glasses watches, jewelry accessories, auto parts, building materials, solar water heater, medical devices and metal industry.
Package: wooden case
Date Sheet
| Model | PFLW25 | PFLW70 | PFLW150 | PFLW300 | PFLW500 | PFLW600 |
| Laser medium | Nd:YAG Crystal Rod | |||||
| Wavelength | 1064nm | |||||
| Average laser power | 25W | 70W | 150W | 300W | 500W | 600W |
| Pulse energy | 25J@1Hz | 50J@1Hz | 50J@1Hz | 100J@1Hz | 100J@1Hz | 100J@1Hz |
| Peak Power | 3KW | 5KW | 5KW | 10KW | 10KW | 10KW |
| Pulse width/duration | 0.5ms-10ms | 0.5ms-20ms | 0.5ms-20ms | 0.5ms-30ms | 0.5ms-30ms | 0.5ms-30ms |
| Repetition Rate | 1-20Hz | 1-100Hz | 1-100Hz | 1-100Hz | 1-100Hz | 1-100Hz |
| Pulse shaping setting | 20section/set | 20section/set | 20section/set | 20section/set | 20section/set | 20section/set |
| Parameters group | 32set | 32set | 32set | 32set | 32set | 32set |
| Energy split output | Max.4 branching | |||||
| Time sharing output | Up to 4 branching | |||||
| Fiber optical cable | GI or SI type from 0.3mm to 0.8mm | |||||
| Laser cooing method | Water to Water | |||||
| Warning temperature | Minimum5ºC -Maxium35ºC | |||||
| Laser operating temperature | 23-28ºC | |||||
| Power input | 380VAC±10%;3phase;50-60Hz;20A-60A | |||||
| I/O interface | RS485 | |||||
| Operation interface | Touch screen | |||||
Free samples services, please contact me (+86 186 8038 9568 /Skype: superwavelaser6) !
Send your Inquiry Details in the Below, Click "Send" Now! Free samples are waiting for you.
