VMC 24L Machining Center for Sale
- 20 Set / Sets per Month
- Tianjin/Qingdao China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Tianjin, China | Brand Name: | ME |
Model Number: | VMC24L | Type: | Vertical | CNC or Not: | CNC |
Voltage: | CUSTOMIZED | Power(W): | 2.2/3.7 | Dimension(L*W*H): | 1770x1650x1300mm |
Weight: | 1000/1280kg | Certification: | CE, ISO | Warranty: | 18 MONTHS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
WOODEN CASES
Product Description

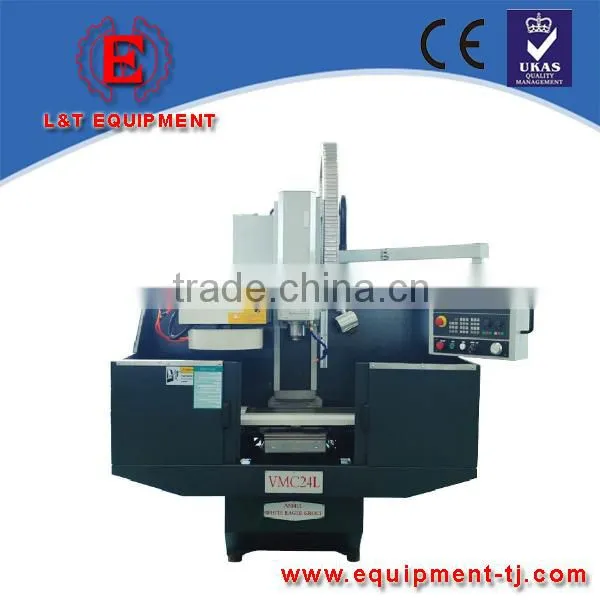

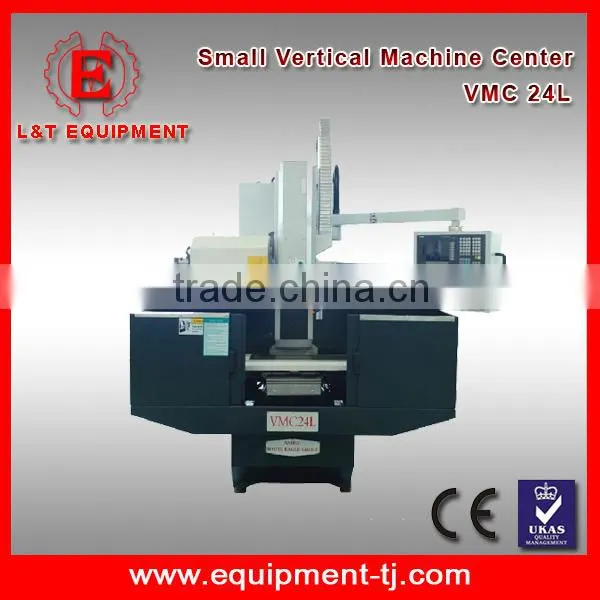

VMC 24L Machining Center for Sale
Specially design for mini-size parts machining.
With space occupied small, but very rigidity and precision marking.
High-speed and precisely spindle unit with servo motor driven.
X,Y,Z linear guide, servo driven.
Supplied with cloak’ type ATC (10pcs) and concentrated all of functions as vertical machine.
Specification | |||
Model | VMC24L | ||
TRAVEL | X/Y/Z Axis travel(mm) | 380/240/370(470 Optional) | |
Distance from spindle nose to worktable(mm) | 60-430 | ||
Distance from spindle center to column(mm) | 309 | ||
WORKTABLE | T slot(width x No. x space)(mm) | 16X3X60 | |
Worktable size(L.mm x W.mm) | 810X240 | ||
Max. loading on worktable(kg) | 100 | ||
SPINDLE | Tool clamping way | Pneumatically | |
Spindle speed(r.p.m.) | 100-6000 | ||
Spindle taper | BT30 | ||
ATC capacity(optional)(pcs) | 10 | ||
FEEDING | Feeding speed(mm/mim) | 0-2000 | |
Rapid feeding speed : X,Y,Z axis (mm/min) | 15 | ||
ATC | ATC type | Manipulator | |
Time of tools automatic changing(near)(s) | 3 | ||
ATC capacity | 20 | ||
Max.diameter of tool(near)(mm) x Weight(kg) x length(mm) | 80x7x300 | ||
MOTOR | Main motor power(kw) | 2.2/3.7 | |
Feeding motor power:X/Y/Z axis(kw) | 1.5/1.5/1.5 | ||
ACCURACY | Position accuracy | 0.025 | |
Repeatability accuracy | 0.016 | ||
TOOL | Max. Size of tool(mm) | 60*175 | |
Max. loading weight of tool(kg) | 3.5 | ||
OTHER | Machine weight(kg) | 1000/1280 | |
Overall size(L x W x H)(mm) | 1770x1650x1300 | ||
Packing size(L x W x H)(mm) | 1900x1620x2480(2580) | ||
Loading amount | 6 sets/40"GP | ||
Description and specification given in this catalogue are subject to modification without notice |
Other hot sale models
Click Here Click Here Click Here
Click Here Click Here Click Here
Click Here Click Here Click Here
Our factory specialize in machinery for more than 20 years, we also supply all kinds of accessories of milling/drilling machines and cnc milling machines. Please contact our sales for more details.
Thank you!
