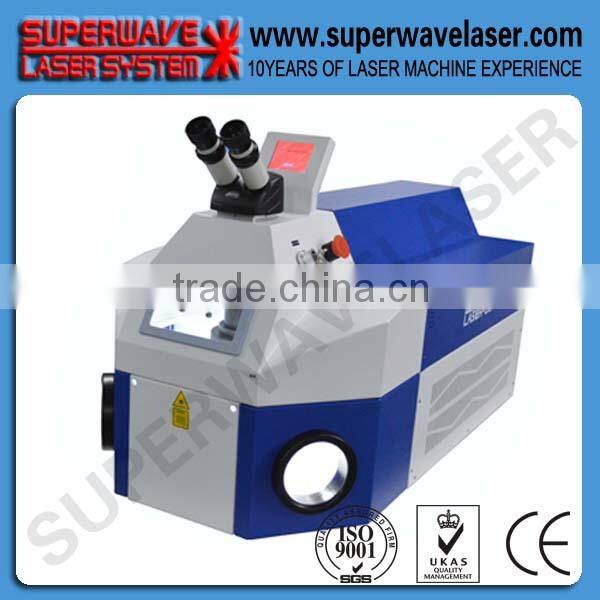

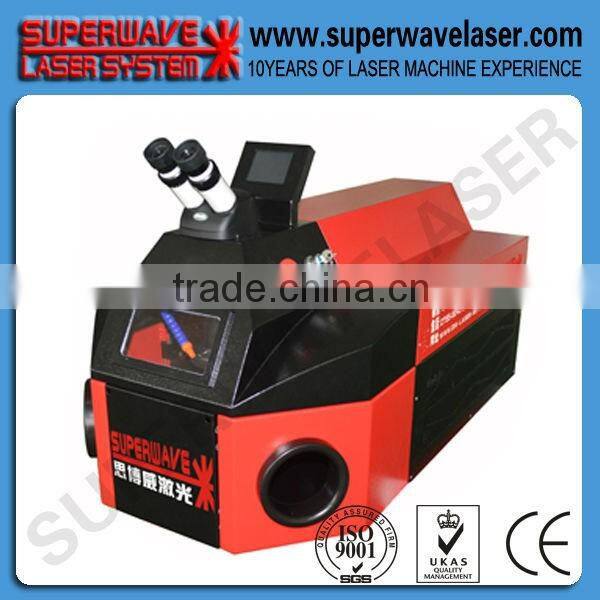

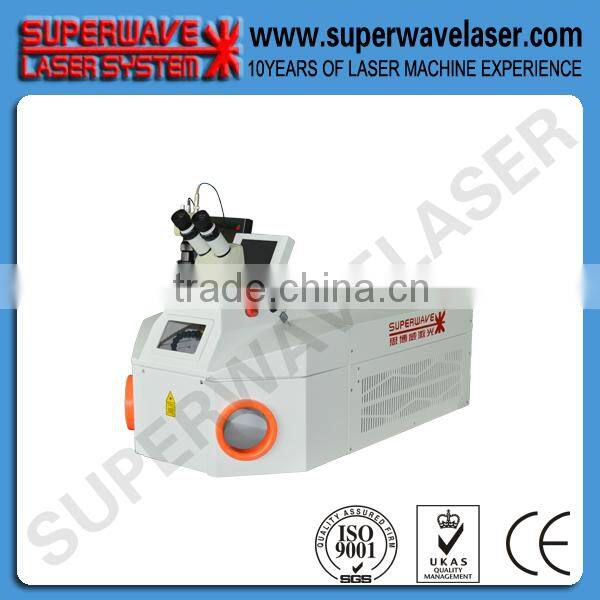

Help CenterMini 100w Laser Welding Machine for Dental Industry With Internal Water Cooling System Welding Machine for Metal
Related Products
-
Titanium Assembly Laser Welded End Cap Laser Welding Equipment for SaleUS$ 10,000 - 20,000MOQ: 1 Set -
Yag Laser Welder, Mould Repairing, Commonly Used in Jewelry and Dental Welding FDA 200 WattUS$ 10,000 - 20,000MOQ: 1 Set
-
300W Nd : YAG Laser Mould Repair Automatic Q Switched Laser Machine Welding Machine Price Q Switch Laser Tattoo RemovalUS$ 10,000 - 22,000MOQ: 1 Set
-
Deeper and Faster Seam Welding Applications Laser Welded 304SS Ball End Lazer Welders for MetalsUS$ 10,000 - 20,000MOQ: 1 Set
-
On-site Automatic Aerospace and Aviation Welding Application Laser Welding Workstation for SaleUS$ 10,000 - 20,000MOQ: 1 Set
LASER SPOT WELDING MACHINE
Features:

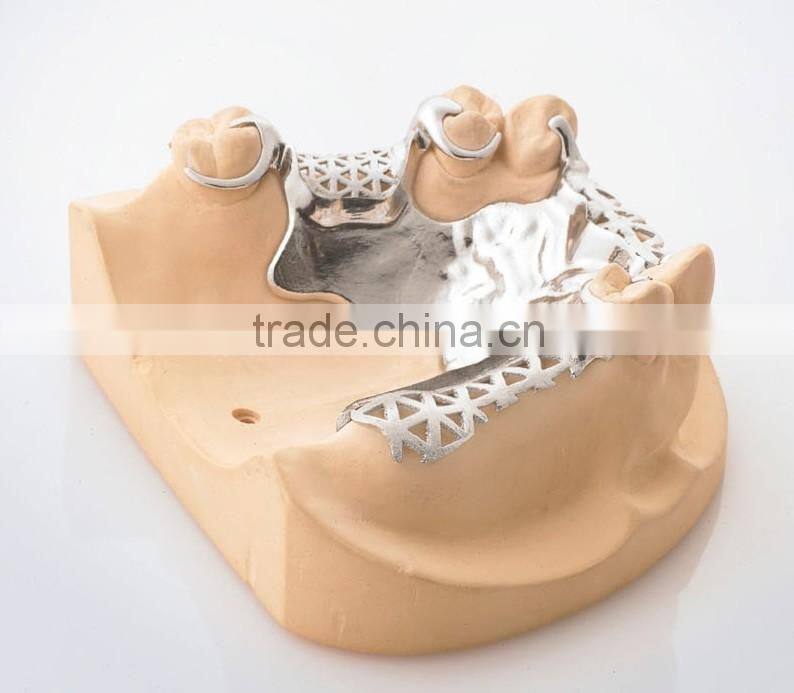

Laser spot welder is mainly use in jewelry and dental industry or other hardware field. This kind of machine can process all metallic material, which used for making jewelries such as gold, silver, platinum, titanium, palladium,K-Gold,Stainless steel, and their alloys. It is mainly used for manufacturing and repairing jewelries, as well as precisely welding a variety of micro and heat-sensitive parts, just like nickel straps of batteries, hairsprings, watch components, down-leads of IC.
Advantages
Main parts |
|
Laser pump head | From U.K Morgan. 15years lifetime |
Laser medium | Nd:YAG from U.K Laser sos Group |
Laser mirror | From Singapore |
Laser power supply | Europe technology,IGBT ,Diode, From Germany, Power sensor from Japan |
User friendly | Very easy to operate, the all parameter can controlled by joystick |
Cooling system | Internal cooling system, the refrigerator from USA,brand- Dan Foss |
Vision system | Stereo microscope 10times ,10X23eyepiece,CCTV system is optional |
| |
Data-sheet
Model | SW-SW100 | SW-SW150 | SW-SW200 |
Type | Bench-top Internal cooling | Workstation Internal cooling | Workstation Internal cooling |
Application | K-Gold; Pure Gold;PT;925,950,990 Silver, Diamond Mosaic | ||
Special technology | Cool beam, smallest beam ,sweet beam (no drilling hole on jewellery,no damaged any gem stone or diamond) | ||
Laser medium | Nd:YAG | Nd:YAG | Nd:YAG |
Wavelength | 1064nm | 1064nm | 1064nm |
Max.output power | 100W | 150W | 200W |
Max.pulse energy | 80J | 100J | 120J |
Peak power | 4KW | 6KW | 7KW |
Pulse duration | 0.1-15ms | 0.1-20ms | 0.1-20ms |
Pulse frequency | 1-10Hz | 1-30Hz | 1-50Hz |
Focal diameter | 0.1-2.0mm | 0.1-2.0mm | 0.1-2.0mm |
Cooling system | Internal cooling system | Internal cooling system | Internal cooling system |
Vision system | Stereo microscope 10X | Stereo microscope 10X | Stereo microscope 10X |
Program memory | 100set | 100set | 100set |
Power supply | AC220V/1Ph/50Hz | AC220V/1Ph/50Hz | AC220V/1Ph/50Hz |
Net weight | 70kg | 120kg | 130kg |
Delivery times | 10Days | 10Days | 10Days |
Warranty terms | 1year | 1year | 1year |
Free samples services, please contact me (+86 186 8038 9568 /Skype: superwavelaser6) !
