Home > Products > Laser Welding Machine/ Laser Welder > SW-MW series laser welding machine for mould repair

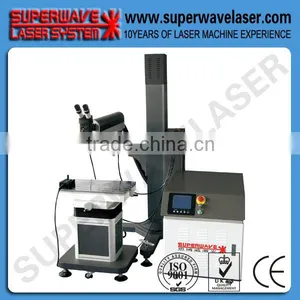

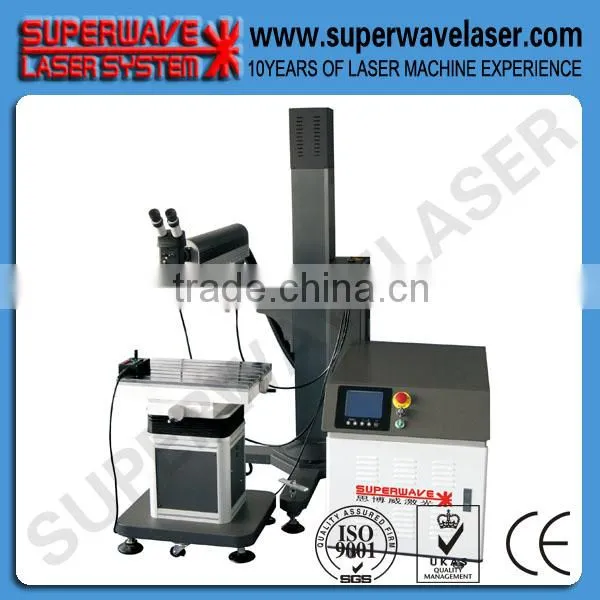

SW-MW series laser welding machine for mould repair
- 50 Set / Sets per Month
- FOB Shenzhen
- T/T
-
Multi-usage co2 laser marking machine engrave non-materials arts and gifts food package product date code marking plastic switch
-
Automatic laser welding machine no welding penetration continuous welding widely used in sanitary battery glasses hardware
-
Fast and high efficiency fiber laser marking machine used in marking rings bracelets mugs watches sanitary ware IC keyboard etc
-
mechanical tools cutting machine for Acrylic/wood CO2 laser cutting machine 1390 laser cutting machine
-
wholesale distributors wanted laser wood cutting machine price fabric laser cutting machine laser cutting machine price
-
desktop cnc machine | LED channel letters welding machine | robotic LOGO welding machine price
Product Details
| Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | superwave laser |
| Model Number: | SW-MW200/300 | Single Pulse Energy: | 120J/140J | Pulse Width: | 0.1-20ms |
| Wavelength: | 1064nm | Focal Spot Diameter: | 0.1-2.0mm | Max. Output Power: | 200wW/300W |
| Dimensions: | 1100X560X1300mm | Usage: | Mould repairing | Power(W): | 200/300W |
| Certification: | CE, ISO | Warranty: | 1 year, 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
SW-MW series laser welding machine for mould repair
System Features
1. Small heat-affected zone
2. Do not cause the precision tooling deformation
3. Large welding depth,welding firmly.
4. Melting fully,no stomata and sand hole,without leaving traces of repair
5. Can continuous work 24 hours
Application
The materials that can be welded are extensive:cold work alloy steel,hot work alloy steel,normal alloy steels,stainless steel,carbon steel,nickel tool steel,high grade steel,steel alloy,high tenacity aluminum alloy,etc.
Parameters
Model | SW-MW200/300 |
laser wavelength | 200w/300w |
laser wavelength | 1064nm |
weld depth | 0.1~3mm |
pulse width | ≤20ms |
pulse frequency | ≤20HZ |
adjusting range of light spot | 0.1~2mm |
observing system | microscope |
power supply | 220v±10%50Hz |
3-axis stroke of work bench | 200*200*300 |
welding wire diameter | 0.1~0.8mm |
cooling system | water |
Training:
Free Training by Video: We will supply the machine with <Training Video> , <User's Manual> and <Instruction Book> in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)
Our engineer can do a door-to-door instruction training service at your local site.
Air Ticket + Local accommodation bears by buyer
