Home > Products > Machine Tools > ZX50A High Precision Small Milling Machine
ZX50A High Precision Small Milling Machine
- 50 Unit / Units per Month
- China Port
- T/T D/P D/A Credit Card
You May Like
-
ZX50A CE Certificated Mini Metal Milling Machine
-
ZX50A High Quality Bench Type Milling Machine
-
Bestselling Low Cost XK7124 CNC Milling Machine Machinery
-
ZX6350C High Precision Small Universal Milling Machine
-
ZX50C Mini Vertical Cheap Milling Machine
-
X6228B High Quality Bench Drilling Machine with Parts
Product Details
Condition | New | Place of Origin | Tianjin, China | |
Brand Name | ME | Model Number | ZX50A&ZX50C | |
Type | Vertical | CNC or Not | Normal | |
Voltage | 220V; 50/60Hz | Power(W) | 1.5 /(0..85/1.5)Kw | |
Dimension(L*W*H) | 400*230*380mm | Weight | 460/470KG | |
Certification | CE,ISO9001:2008 | Warranty | 18 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Wooden Cases/Pallets
Product Description
ZX50A High Precision Small Milling Machine
We Manufacture. Stock. Distribute
Hot Sale Easy Operation.

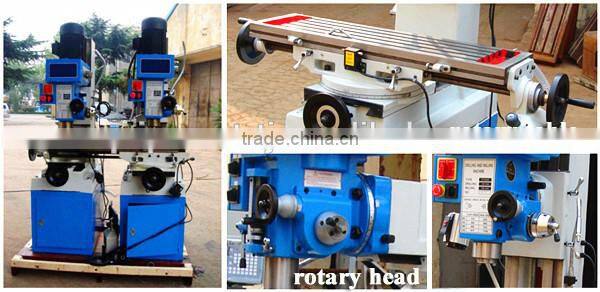

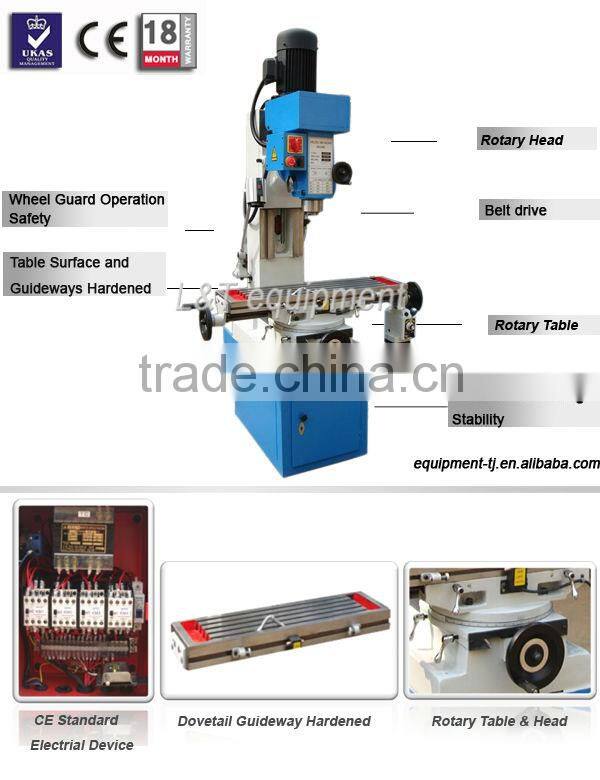

Rotary Table and Head.
CE Iso Certificated.
Good helper for your machining and maintanance work in your workshops.
L&T 20-Years Export Experience.
Knowledge and experience make the difference.
Specifications | ZX50A milling machine | ZX50C milling machine |
Max. Drilling Dia. (mm) | 50 | 50 |
Max. Horizontal Milling Dia. | 100 | 100 |
Max. Vertical Milling Dia. | 32 | 32 |
Max. Boring Dia. | 100 | 100 |
Spindle Taper | MT4,R8 | MT4,R8 |
Spindle Speeds Range | (5 step) 270-2400 | (5 step) 115-1750 |
Spindle Travel | 120 | 120 |
Table Size (mm) | 800*240 | 800*240 |
Table Travel (mm) | 400*230*380 | 400*230*380 |
Main Motor Power (KW) | 1.5 | 0.85/1.5 |
N.W./G.W.(Kg) | 460/540 | 470/550 |
MILLING MACHINE
ZX50A&ZX50C Milling Machine Standard Packing ListMILLING MACHINE
No. | Description | Specification | Qty |
1 | ZX50A/ZX50C Milling Machine |
| 1 |
2 | Drilling Chuck | 16 | 1 |
3 | Hexagon Spanner | 5 | 1 |
4 | Wedge Shifter |
| 1 |
5 | Reduction Sleeve |
| 1 |
6 | Draw Bar |
| 1 |
7 | Spindle Bar |
| 1 |
8 | Wrench | S21-24 | 1 |
9 | Machine Vice | 160 | 1 |
10 | Milling Chuck |
| 1 |
11 | Operation Manual |
| 1 |
12 | Quality Certificate |
| 1 |
13 | Packing list |
| 1 |
MILLING MACHINE
* You can also choose optional accessories, please contact our sales for details.
MILLING MACHINE
Sample Picture
Accessories
Optional Cutter

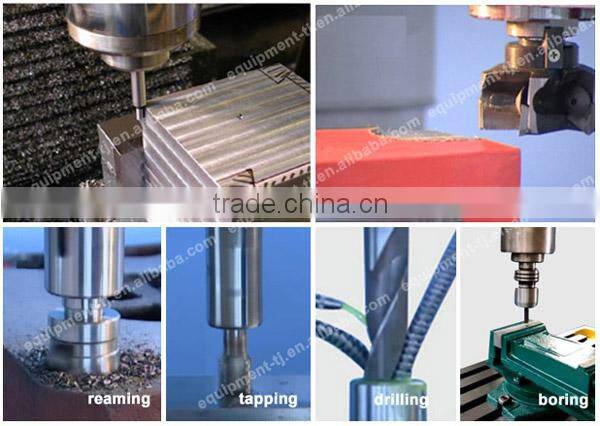

Applications
Wooden Cases / Pallets
milling machine
Other Hot Sale Model Choice
milling machine
Click here Click here Click here Click here
Transaction Steps
ZX50A High Precision Small Milling Machine
Company Profile

Our company is a major import and export enterprise located in the port city Tianjin, China. Awarded multiple contracts by the World Bank and the Asian Development Bank, we have provided products worthy of billions of dollars to domestic and overseas partners on an annual basis since 1994. Our corporate mission is to promote our business by continually exceeding our customers' expectations for service and reliability. Our company currently exports more than 400 categories of products to more than 100 countries worldwide. Our main export products are machine tools and accessories, valves, engineering machinery, universal machinery, agricultural machinery, electric motors, water-submersible pumps, diesel generating sets, conveyor pulleys, hydraulic cylinders, survey equipment, and so on. With the rapid development of the Chinese market in recent years, internal demand for foreign products has expanded exponentially. To serve this demand, our company now imports an extensive range of products, including heavy forging equipment, paint sprayers, industrial lubricants, industrial liquid soap, laboratory apparatuses, flexible bus bars, fire extinguishing facilities, and power generator sets. We are continually looking for reseller partners to distribute our products and supplier partners to expand our product base. Please contact us if you have a need. We look forward to serving you. ISO9001:2008 certified.
