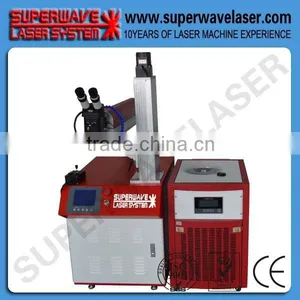

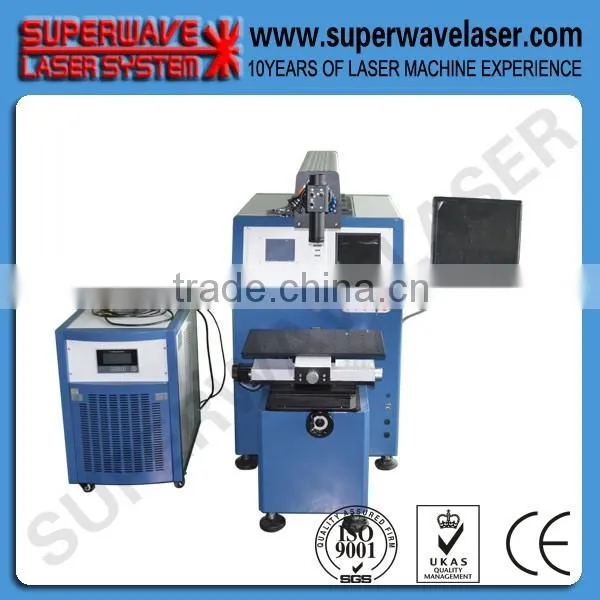

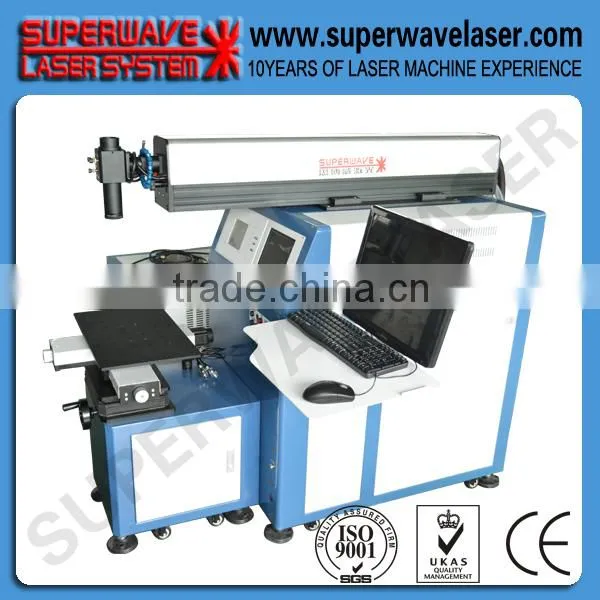

2015 YAG Laser Aluminium Welding Machine
for Mold
Features
1. No deformation of the precision tools, without leaving traces of repair.
2. Non-contact welding and large welding depth to welding flexibly and firmly.
3. Long lifetime laser cavity made in U.K.
4. No-harmful operation better than arc welding and TIG welding.
Application
Mobil communication, Electronic component, Medical instrument, Auto component.
Mould repairing, Jewelry, Watch, Dental, etc.
Parameters
| Specs | SW-LMW200 | SW-LMW300 | SW-LMW400 |
| Max. Output Power | 200W | 300W | 400W |
| Laser Wave Length | 1064nm | 1064nm | 1064nm |
| Pulse Peak Power | 80J | 120J | 140J |
| Laser Welding depth | 0.1~2.0mm | 0.1~2.5mm | 0.1~3.0mm |
| Pulse Width | ≤20ms | ≤20ms | ≤20ms |
| Pulse Frequency | ≤50HZ | ≤100HZ | ≤100HZ |
| Focus Diameter | 0.1~2.0mm | 0.1~2.0mm | 0.1~2.0mm |
| Observing System | Microscope/CCD | ||
| Power Supply | 220v±10%/50Hz | AC380V, 3Phase/50Hz | |
| 3-axis stroke of workbench |
X:200mm; Y:100mm; Z:200mm (More optinal) |
||
| Control System | Microchip CPU | ||
| cooling system |
External water cooling (Internal cooling optional) |
||

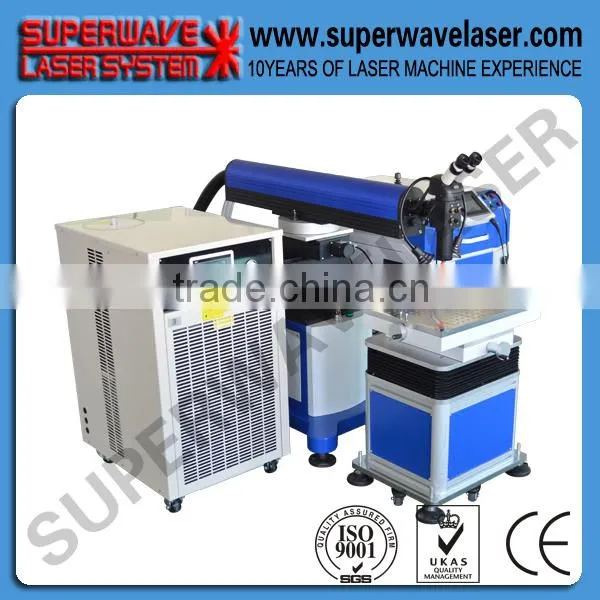

Mould/Mold Welding Series
Mould Repairing Works
Proven Seamless Welding Technique
Technical Fixture to ease operation
Reliable Sealing Weld
