hot work die steel 1.2344 flat steel h13 steel hq 4cr5mosiv1

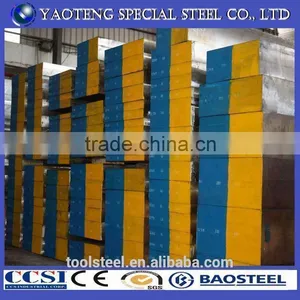

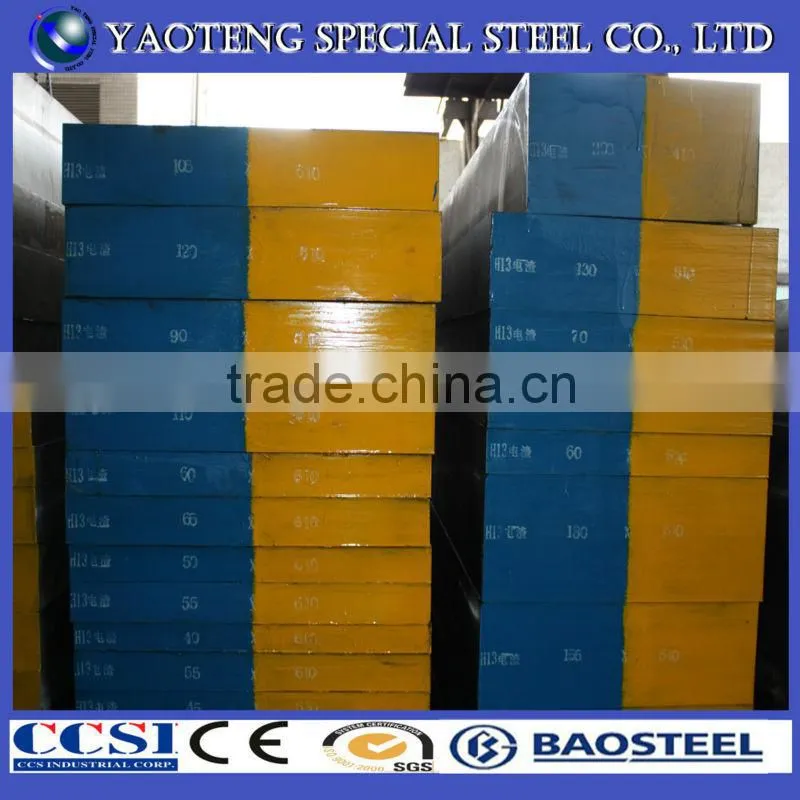

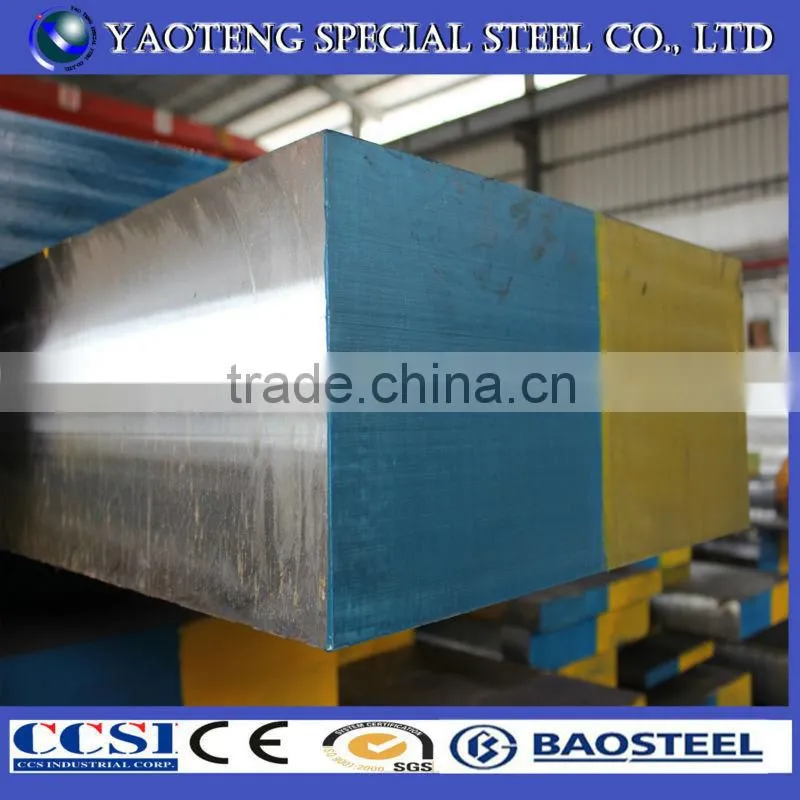

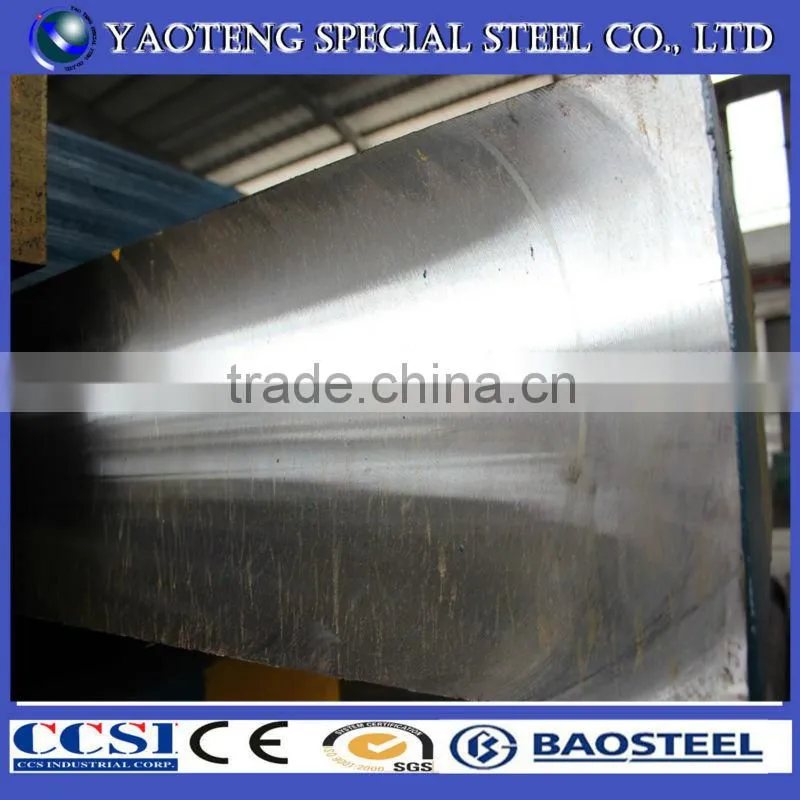

H13/SKD61/1.2344 tool steel round bar and flat sections which can be sawn cut to your required sizes. skd61
ground steel bar can be supplied, providing a high quality tool steel precision ground tool steel bar to your
required tolerances

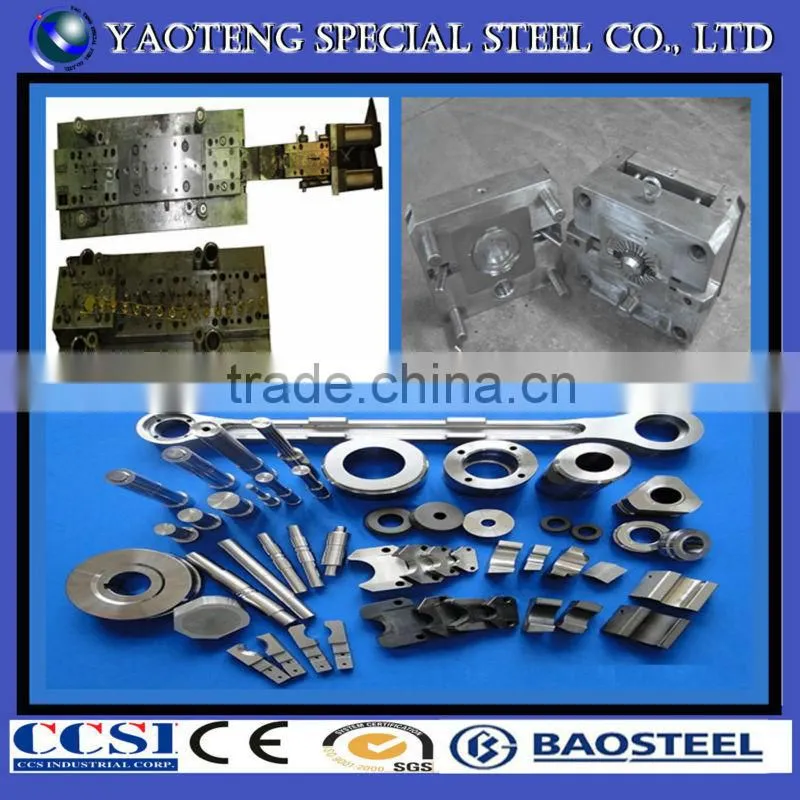

| Applications | Typical applications include die casting dies for aluminium, magnesium and zinc, extrusion dies for aluminium and brass, liners, mandrels, pressure pads, followers, bolsters, die cases, die holders and adaptor rings for copper and brass extrusion. skd61 is used to produce hot stamping and press forge dies, split hot heading dies, gripper dies, hot punching, piercing and trimming tools. Other applications include plastic moulds, shear blades for hot work and hot swaging dies. |
Forging
Preheat slowly to 750°C then increase the temperature more rapidly to 1050-1100 °C. Do not forge below 850°C.
It is essential to cool the skd61 slowly after forging, either in a furnace or in vermiculite.
| Annealing | Soak thoroughly at 840-860°C before furnace cooling at a maximum rate of 20°C per hour down to 600°C followed by cooling in air. |
| Stress Relieving | When tools made from skd61 tool steel are heavily machined or ground , the relief of internal strains is advisable before hardening to minimise the possibility of distortion. Stress relieving should be done after rough machining. To stress relieve, heat the component carefully to 700°C, allow a good soaking period (two hours per 25mm of ruling section). Cool in the furnace or in air. The tools may then be finish machined before hardening. |
| Hardening | Preheat to 780-820°C. Soak thoroughly, then increase rapidly to the final hardening temperature of 1000-1030°C. When the skd61 has attained this temperature, soak for approximately thrity minutes. Cool in air. Large sections may be quenched in oil. To reduce scaling or decarburisation, we recommend isothermal molten salt bath treatment. Preheat in salt at 780-820°C then transfer to salt bath standing at 1000-1030°C. Soak and quench into salt standing at 500-550°C. Allow to equalise, withdraw and cool in air. Alternatively, this tool steel may be vacuum hardened or pack hardened. Tools should be tempered as soon as they become hand warm. |
| Tempering |
Heat uniformly to the required temperature allowing a soaking time of two hours per 25mm of ruling section. Withdraw from the furnace and allow to cool in air. A second tempering is strongly recommended, the skd61 tool being allowed to cool to room temperature between tempers. The usual tempering range is 530-650°C depending on the hardness requirements and the operating temperature of the tool.
|
| Heat Treatment | Heat treatment temperatures, including rate of heating, cooling and soaking times will vary due to factors such as the shape and size of each skd61 tool steel component. Other considerations during the heat treatment process include the type of furnace, quenching medium and work piece transfer facilities. Please consult your heat treatment provider for full guidance on heat treatment of tool steels. |
| Final Grinding | Select the correct grade of wheel in consultation with the grinding wheel manufacturer. Ensure the grinding wheel is in good condition by means of a suitable dressing tool. Wet grinding is a preferable option using a copious supply of coolant. If dry grinding is resorted to then use a very soft wheel. |
Our Packing is easily loading and unloading.
The way of packing has been widely loved by clients.And it can be customized.
Container condition: 20'GP: maximum length≤5800mm, maximum weight 25 mts
40'GP: maximum length≤11800mm, maximum weight 25mts
We have horizontal saw machine, vertical saw machine, CNC flame cutting machine, plane milling machine,
face milling machine, grinding machine equipment to meet customers’ requirements of the steel processing
Dongguan Yaoteng Special Steel Co., Ltd is a special steel stockholders and suppliers of tool steel and mould steel.
On April 12, 2009, Yaoteng began to develop the international market, our products have been exported to Brazil, Turkey , Mexico, Colombia, Argentina, Dubai, Saudi Arabia, Syria, Iran, Egypt, the Philippines, Indonesia, Malaysia, Vietnam, India and other countries.
Our advantage:
1.Large stocks for various steel grades:Over 5000Mt stock of regular grade and size
2.Competitive price:long term cooperation with most China famous mill to intergrate mills' product line
3.Fast delivery time:Own factories for peeling,milling,grinding and cuting etc
4,Good after-sale service
| Main Product | Hot work tool steel |
DIN |
1.2344,1.2343,1.2365,1.2581,1.2367,1.2713 etc. |
AISI |
H13,H11,H10,H21, etc. |
JIS |
SKD61,SKD6,SKD5,SKT4 etc. |
Cold work tool steel |
|
DIN |
1.2601,1.2379,1.2080,1.2363,1.2842,1.2419,1.2510,1.2550,1.2767 etc. |
AISI |
D2,D3,D5,D6,D8,A2,O2,O1 etc. |
JIS |
SKD1,SKD11, SKS3 etc. |
Plastic mould steel |
|
DIN |
1.2083,1.2311, 1.2316,1.2738 etc. |
AISI |
P20, P20+Ni, 420 etc. |
JIS |
NAK80 |
High speed tool steel |
|
DIN |
1.3355,1.3343 |
AISI |
T1,M2,M35,M42 |
JIS |
SKH2,SKH51 |
Structural alloy steel |
|
DIN |
1.7225,1.6511,1.7035,1.7220 |
AISI |
4,140,434,051,404,130 |
JIS |
SCM440 |
|
Tel: +86-0769-3389 9333 Fax: +86-0769-8870 5839 Skype: lara.liao80 Email: laraliao AT toolsteel DOT net DOT cn lara AT otaisteel DOT com TM: cn1511348531 Mobile: 86 13711884714 |
