Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Round Bar > DIN 1.2344,AISI H13,GB 4Cr5MoSiV1,JIS SKD61,8407 Tool Steel Bar and Sheet

DIN 1.2344,AISI H13,GB 4Cr5MoSiV1,JIS SKD61,8407 Tool Steel Bar and Sheet

US$ 2,190 - 2,409 MOQ: 1 Ton

Key Specifications

Get Latest Price

Steel Grade:

1.2344, H13/1.2344/skd61

Standard:

AISI, ASTM, BS, DIN, GB, JIS, AISI, ASTM, DIN, JIS

Dimensions:

Dia : 1mm--900mm

Contact Supplier Request Quote Chat Now

Dongguan City Yaoteng Special Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port or Guangzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Steel Grade 1.2344, H13/1.2344/skd61

Standard AISI, ASTM, BS, DIN, GB, JIS, AISI, ASTM, DIN, JIS

Dimensions Dia : 1mm--900mm

Place of Origin Guangdong, China

Brand Name OT

Model Number 1.2344

Technique Other, Forged, Forged or Hot rolled

Application Other, Tool Steel Bar, Die Steel Bar

Special Use Mold Steel

Type Other, hot work die steel

DIN 1.2344,AISI H13,GB 4Cr5MoSiV1,JIS SKD61,8407 Tool Steel Bar and Sheet

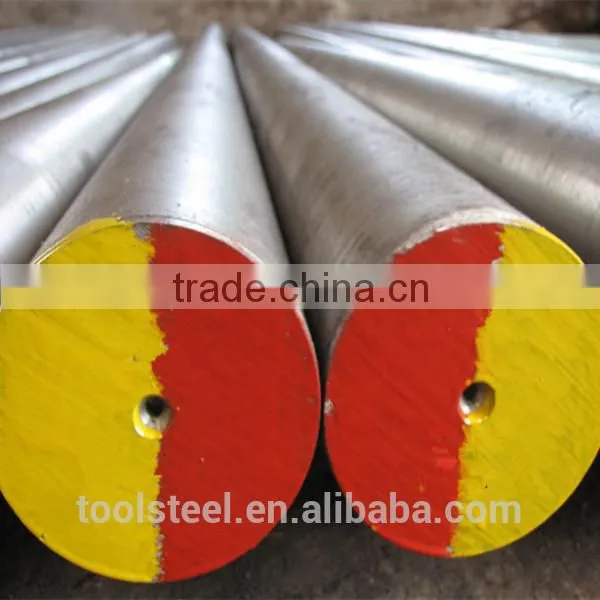

H13 tool steel bar
1.H13/DIN1.2344
2.Forging material
3.Annealing,Hardness:180~255HBS,
4.EAF or ESR black surface

1.Product Name	DIN 1.2344,AISI H13,GB 4Cr5MoSiV1,JIS SKD61,8407 Tool Steel Bar
2. Steel grade	GB4Cr5MoSiV/DIN 1.2344/AISI H13/JIS SKD61
3. Chemical Composition(%)	Carbon:0.32/0.45; Silicon:0.80/1.20; Manganese:0.20/0.50; Chromium:4.75/5.50; Molybdenum:1.10/1.75; Vanadium:0.80/1.20; Phosphorus,Sulphur:0.030max;
4.Properties	1 excellent high temp. Strength and thermal fatigue resistance 2 High ductility and toughness 3 good resistance to heat checking, cracking, hot wear and plastic deformation.
5.Specifications h13 Round bar	dia. 1-16mm(cold drawn); dia. 10-50mm(hot rolled); dia. 50-180mm(hot forged); dia. 180-300(free forging);
6.Specifications H13 Plate/Flat bar	Thickness: 1-2.5mm(cold rolled); 1.5-20mm(hot rolled); 20-300mm(hot forged); Width: Max 800mm;
7.H13 Surface Condition	1)Black,Peeled,Turned; 2)H13 steel must be free of heavy scale,deep pitting,laps,porosity,excessive nonmetallic inclusions,seams,cracks,slivers,scale marks,dents,soft and hard spots,pipes or any defects that would detrimentally affect the suitability of 1.2344 steel. 3)Visual examination for H13 die steel shall be made to ensure compliance with the requirements for workmanship,finish,dimensions and tolerances,identification marking and packaging.
8.Straightness	The permissible deviation of 1.2344 mold steel shall not exceed 3mm in 1000mm length.This applies also to bars under one meter in length.Measurement is taken on the concave side of AISI H13 mould steel with a straight edge.
9.Hardness	DIN 1.2344 die steel annealed hardness values when obtained in accordance with the latest issue of test methods should not exceed 255HB.
10.Heat Treatment of H13 round bar	*Annealing* 1)Heat H13 tool steel slowly and uniformly to 880°C. 2)Soak for 3-4 hours and cool in the furnace to room temperature. 3)Cool 1.2344 tool steel in the furnace to room temperature. *Hardening* Pre-heat aisi h13 tool steel to the temperature 780°C.Increase the material to the hardening temperature of 1020°C.Soak thoroughly at the temperature for thirty minutes per 25mm,then cool or quench. when heating for hardening,it should not exceed 1020°C. *Tempering* DIN 1.2344 tool steel should be done with the least possible delay after hardening.Select a suitable tempering temperature, heat slowly and uniformly.When H13 steel has reached the desired temperature, soak for at least one hour per 25mm of whole diameter. Double tempering is recommended.The second tempering should be a repetition of the first.
11.Quality Certificate	1)Grade,Size,Quantity in Number & Weight 2)Heat Number 3)Chemical Composition 4)Hardness 5)Ultrasonic Test Report.
12.PAYMENT	30% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight
Another STOCK STEEL FOR PROMOTION:
13.Hot work tool steel	DIN 1.2343, 1.2344, 1.2365, 1.2367, 1.2581, 1.2714, 1.2885, etc.
	AISI H10, H10A, H11, H12, H13, H21, L6, etc.
	JIS SKD5, SKD6, SKD61, SKT4, etc.
14.Plastic Mould Steel	DIN 1.2083, 1.2085, 1.2311, 1.2312, 1.2316, 1.2738, etc.
	AISI 420, P20, P20+S, P20+Ni, etc.
	DAIDO NAK80
15.High Speed Steel	DIN 1.3343, 1.3355/ AISI M2, T1.
16.Alloy steel	AISI/SAE 4140, 4130, 4340, 8620, 8640, etc.

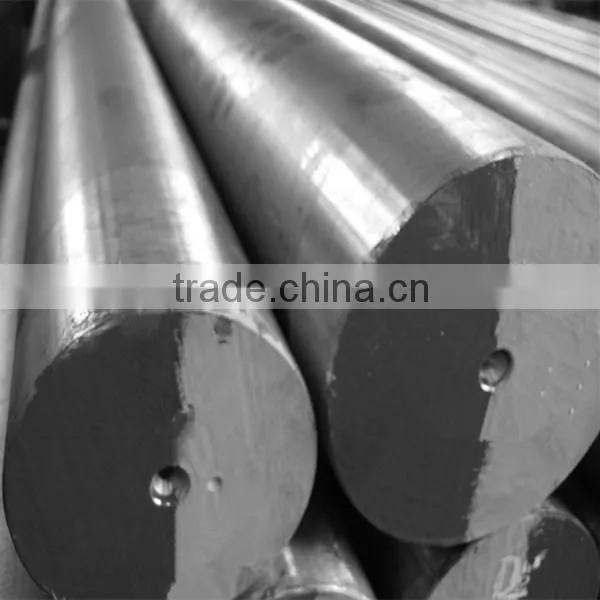

H13 Steel Round Bar Product Details and application Our Steel Advantage: 1 excellent high temp. Strength and thermal fatigue resistance 2 High ductility and toughness 3 good resistance to heat checking, cracking, hot wear and plastic deformation. steel producting process and quality control Warehouse Steel Stock-Dongguan Yaoteng Mould Steel Co.,Ltd

Thanks for visit our website, any question contact us! Contact Details:
