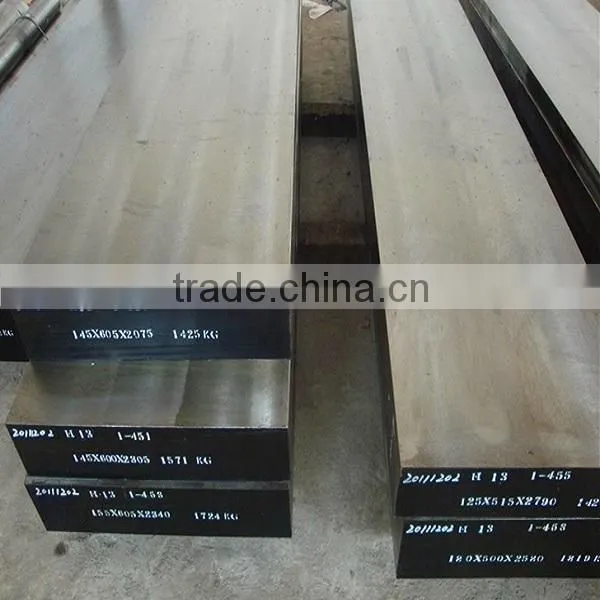

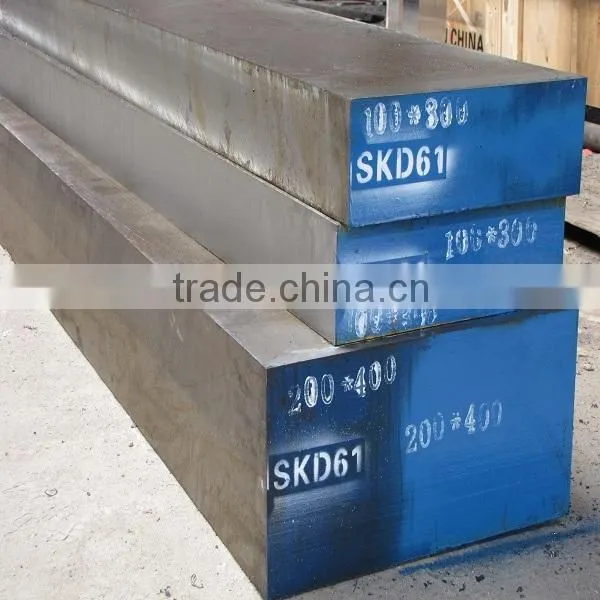

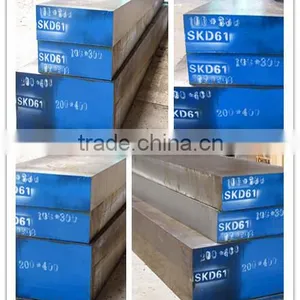

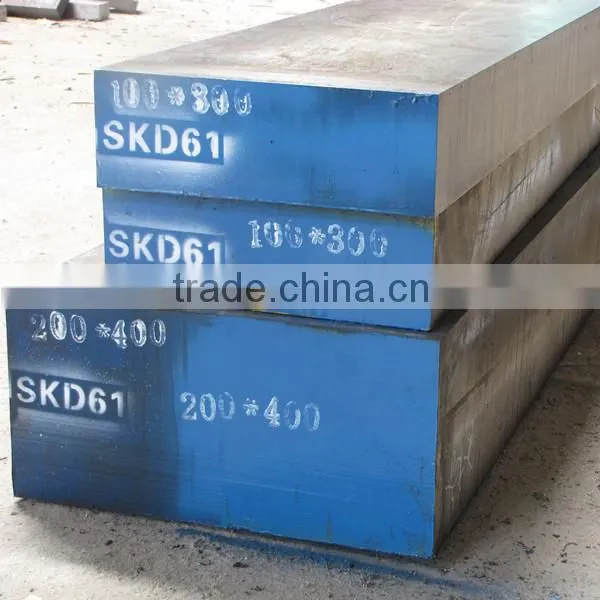

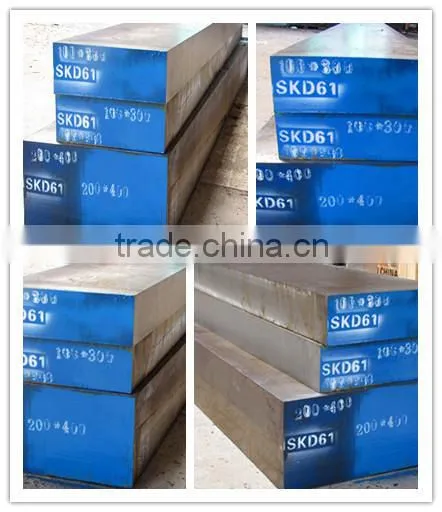

Help CenterHot Work Tool Steel H13/1.2344/SKD61 Steel Plates Building Material Prices China
Related Products
-
H13 Steel RodsUS$ 500 - 600MOQ: 5 Tons -
H13 Compressive Strength of SteelUS$ 500 - 600MOQ: 5 Tons
-
H11/1.2343/skd60 Round Bars for Aluminum Profile Extrusion Industry Dies & Toolings / H13/1.2344/skd61 Round Bars for AluminumUS$ 200 - 800MOQ: 5 Tons
-
Hot Work Die Steel SKT4/ASTM L6/DIN 1.2714/5CrNiMo Round Bars in StockUS$ 532 - 621MOQ: 1 Ton
-
Excess Inventory H13 Tool SteelUS$ 500 - 600MOQ: 5 Tons
| |||||||||||||||||
1.ChemicalComposition(%) |
|
||||||||||||||||
2.Equivalent Grades |
X40CrMoV5,1.2344,SKD61,H13 |
||||||||||||||||
3.Form&Size |
1)SKD61 Tool Steel round bars, flat/square bars,plates,sheets. |
||||||||||||||||
2)Flat steel bar: 6-400mm*200-1600mm*2000-6000mm (Length can be customized) | |||||||||||||||||
4.Surface Condition |
black,turning,peeling,bright |
||||||||||||||||
5. Characteristic |
pure steel vacuum degassing refining process ball the annealing softening treatment, good cutting performance. h13 picture strengthening elements vanadium, molybdenum special Add, abrasion resistance is extremely excellent |
||||||||||||||||
6. Usage |
H13 a high-carbon high-chromium alloy tool steel with high hardness and wear resistance after heat treatment and hardenability, good dimensional stability, suitable for making high-precision long-life cold work die and thermosetting molding plastic mold. |
||||||||||||||||
7. Physical properties |
H13 Hardness: before heat treatment SKD61 about HRC15 ~ 20 (HB200 230), the hardness after heat treatment: the internal of HRC40 ° ~~ 45 ° surface HV1000 ± 100 SKD61 density is 7.85 g per cubic centimeter |
||||||||||||||||
|
8.heat treatment |
Quenching: the first stage of warm-up: the second stage of 500 to 550 ° C Preheat: 750 ~ 800 °C quenching or high-pressure gas cooling, 100 ~ 150 °C into the back to the stove. Tempering: Preheat: 300 to 350 °C tempering heating: 550 to 680 °C air cooling to room temperature, tempering three times. Quenching temperature of 1020 to 1050 degrees, hardness 56 ~ 58HRC, heat treatment of small deformation, surface nitriding nitriding processing products have better wear resistance. |
||||||||||||||||
9. Cryogenic treatment |
In order to obtain the highest hardness and dimensional stability, the mold immediately after the quenching cryogenic -70 to -80 ° C., maintained for 3-4 hours, and then in the tempering treatment, the cryogenic treatment of tool or mold hardness than the hardness of conventional heat treatment 1 -3HRC. Complex shape and size changes in large parts, cryogenic processing production risk of cracking |
||||||||||||||||
10.QualityCertificate |
1)Grade,Size,Quantity in Number & Weight |
||||||||||||||||
H13 steel product details
productation process & quality control

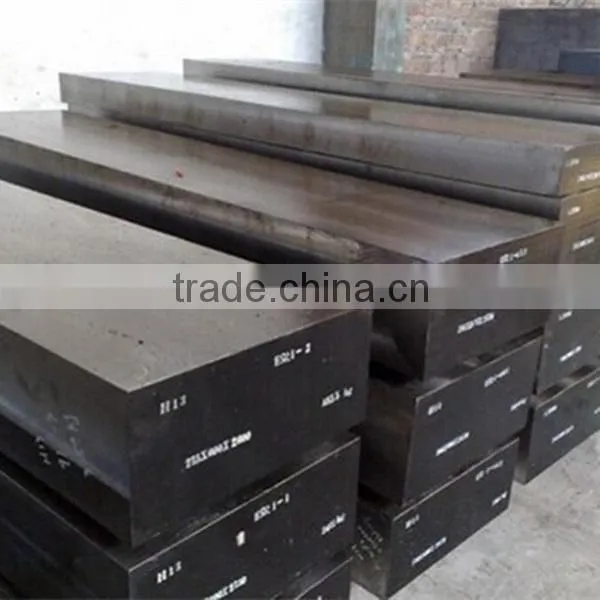

warehouse stock- Yaoteng Mould Steel Co.,Ltd
