Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Round Bar > H13 Steel 1.2344 Mould Steel Supplier in Dongguan

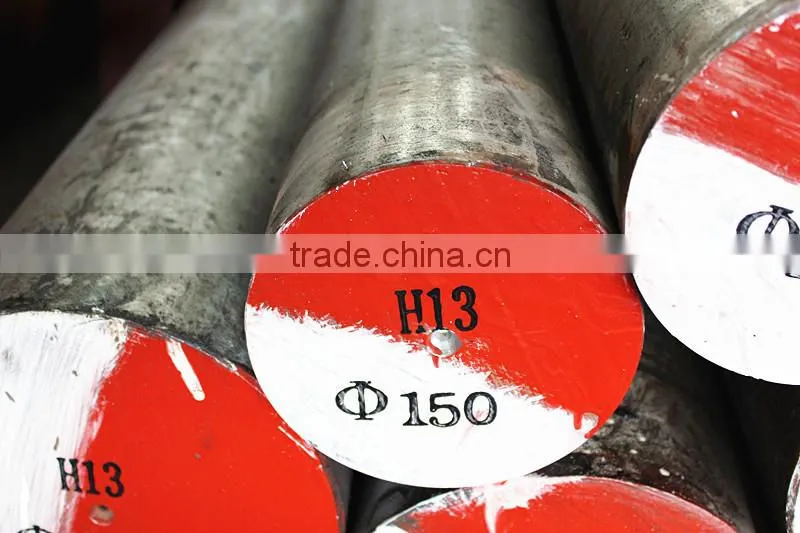

H13 Steel 1.2344 Mould Steel Supplier in Dongguan

US$ 2,190 - 2,409 MOQ: 1 Ton

Key Specifications

Get Latest Price

Steel Grade:

H13

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Dimensions:

Dia : 1mm--900mm

Contact Supplier Request Quote Chat Now

Dongguan City Yaoteng Special Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Port or Guangzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Steel Grade H13

Standard AISI, ASTM, BS, DIN, GB, JIS

Dimensions Dia : 1mm--900mm

Place of Origin Hebei, China

Brand Name OT

Model Number H13

Technique Hot Rolled

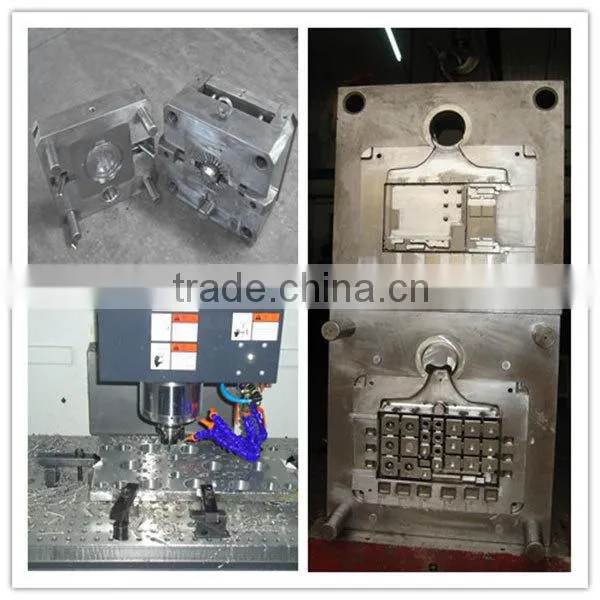

Application Other, Die Steel Bar, Pressure Die Casting Aluminium & Copper ExtrusionDie Forging

Alloy Or Not Non-alloy

Special Use Mold Steel

Type Other, hot work die steel

H13 Steel 1.2344 mould steel supplier in Dongguan

H13 Steel Product Introduction

Chromium hot-work tool steels are classified as group H steels by the AISI classification system. This series of steels start from H1 to H19.

H13 chromium hot-work steel is widely used in hot and cold work tooling applications. Due to its excellent combination of high toughness and fatigue resistance H13 is used more than any other tool steel in tooling applications.

This article will give an overview of H13 chromium hot-work steels.

Chemical Composition

The following table shows the chemical composition of H13 tool steels.

C	Si	Mn	Cr	Mo	V	P	S
0.32-0.45	0.90-1.20	0.30-0.50	4.80-5.50	1.20-1.50	0.90-1.10	≤0.030	≤0.030

Characteristics

The physical properties of H13 tool steels are given in the following table.

H13 Steel,H13 Tool Steel,Hot Die Steel H11/H13 have good tenacity,hot tirdness nature and definite wearable;empty quenching under lower Ao shi ti temperature condition.small distortion after heat-treatment and so on.

Mechanical Properties

The mechanical properties of H13 tool steels are tabulated below.

Properties	Metric	Imperial
Tensile strength, ultimate (@20°C/68°F, varies with heat treatment)	1200 - 1590 MPa	174000 - 231000 psi
Tensile strength, yield (@20°C/68°F, varies with heat treatment)	1000 - 1380 MPa	145000 - 200000 psi
Reduction of area (@20°C/68°F)	50.00%	50.00%
Modulus of elasticity (@20°C/68°F)	215 GPa	31200 ksi
Poisson's ratio	0.27-0.30	0.27-0.30

Thermal Properties

The following table shows the thermal properties of H13 tool steels.

Properties		Conditions
Properties		T (ºC)	Treatment
Thermal expansion	10.4 x 10^-6/ºC	20-100	-
Thermal conductivity	28.6 W/mK	215	-

Other Designations

Other designations that are equivalent to H13 tool steels include:

AFNOR Z 40 COV 5
DIN 1.2344
UNI KU
JIS SKD61
SS 2242
B.S. BH 13
ASTM A681
FED QQ-T-570
SAE J437
SAE J438
SAE J467
UNS T20813
AMS 6408

Fabrication and Heat Treatment

Machinability

The machinability rate of H13 tool steels is nearly 75% of that of the W group tool steels.

Forming

H13 tool steels are formed by using conventional methods.

Welding

H13 tool steels are readily weldable.

Heat Treatment

H13 tool steels are preheated to 816°C (1500°F). Then the steels are directly heated by increasing the temperature to 1010°C (1850°F) followed by holding for 15 to 40 mins. The steels are then air-quenched.

Forging

H13 tool steels are forged at 1079°C (1975°F). For this type of steels, forging below 898°C (1650°F) is not preferable.

Cold Working

Cold working may be carried out on H13 tool steels using conventional methods.

Annealing

H13 tool steels are annealed at 871°C (1600°F) and slowly cooled at 4°C (40°F) in the furnace.

Tempering

Tempering is carried out in H13 tool steels from 538 to 649°C (1000 to 1200°F) to obtain Rockwell C hardness of 53 to 38. Double tempering can also be performed in these steels for every one hour at the preferred tempering temperature.
