This 8 color high speed rotogravure printing machine is suitable for roller to roller printing plastic film, aluminum Foil, BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. It is widely use in high quality packaging material printing.
Main Technical Specification
Main Point | Model | KTHS-B |
Printing Colors | 2~12 Colors (base on customer requirement) | |
Printing Material | Plastic Film / Paper / Aluminum Foil etc | |
Printing Width | 600mm/800mm/1000mm/1200mm | |
Heating Way | Electrical heating, Gas heating, Oil heating | |
Printing speed | 200m/min200 | |
Total power | About 250kw(8 color) | |
Machine weight | About 28 Ton (8 color) | |
Machine Size(LWH) | 16500 x 3300 x 2800mm (8 color) | |
Unwind &Rewind | Type | Twin-reel rotating design(optional disc design) |
Raw Material Diameter | 600mm (Optional 800mm or more) | |
Paper Core Diameter | 76 mm(optional152mm) | |
Material Splicing and cutting | Automatic | |
Tension Control | Dancer roller(PLC Control) | |
Air-shaft | Shaft type air shaft | |
Printing Unit | Printing cylinder | Shaft-less type design |
Printing cylinder Diameter Range | 120~300mm (special size possible) | |
Color register precision | Vertical (Y-Axis) ≤±0.10mm (automatic) Horizontal (X-axis) ≤±0.10mm (Manual) | |
Emboss rubber roller Diameter | 135 mm (NBR Shore (A) 60 °~ 65°) | |
Ink recycle | Pneumatic Ink pump | |
Control Part | Auto color register system | Include |
Web video inspection system | include | |
Water cooling system | Include | |
7 motor drive tension system | Include | |
Ink viscosity | Not include(optional possible) | |
Reverse Printing device | Not include(optional possible) | |

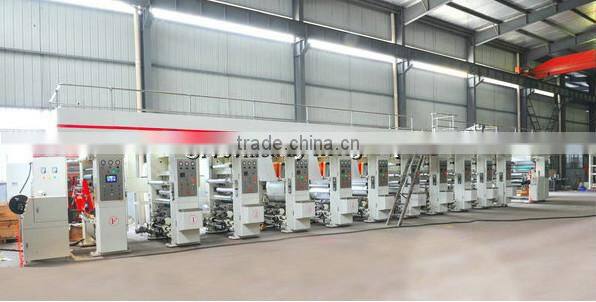

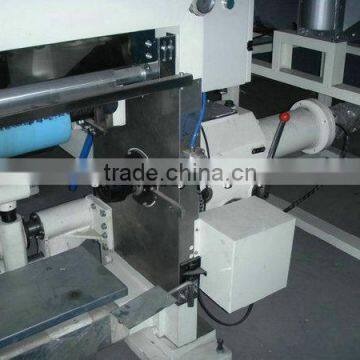

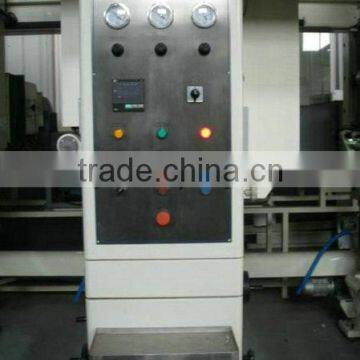

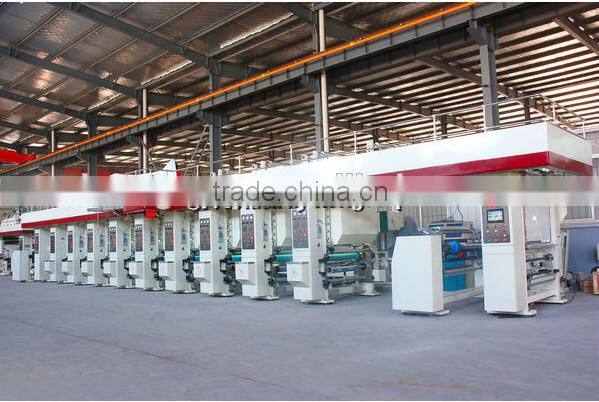

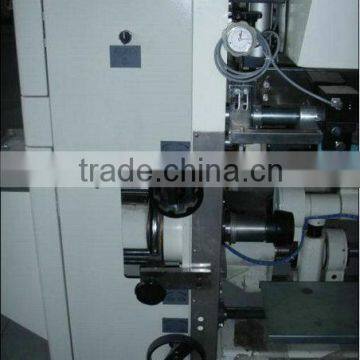

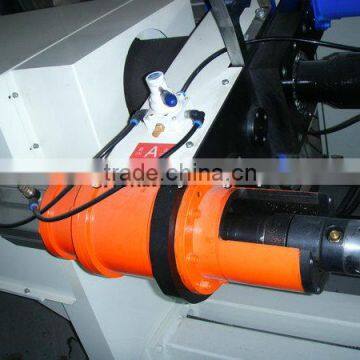

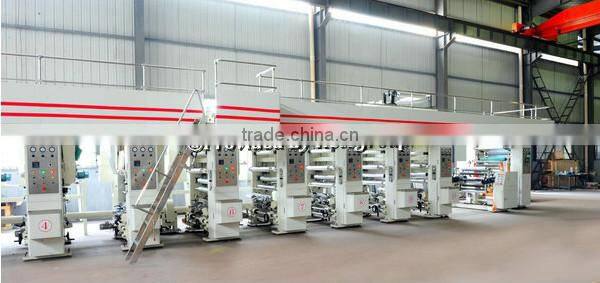

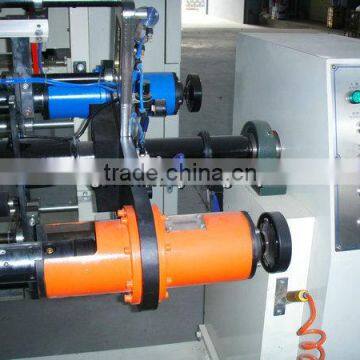

Machine Detail Show
Machine Detail Show
