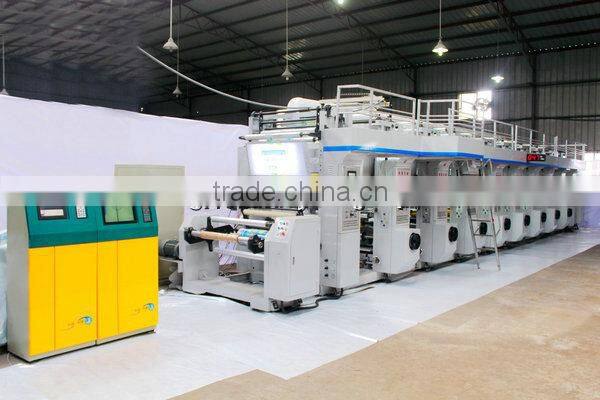

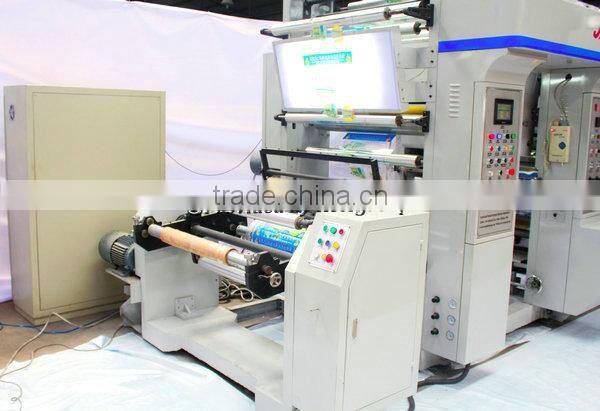

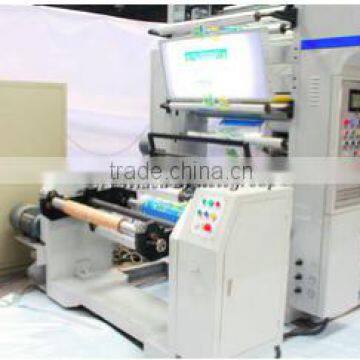

KTMS-B Series High Speed Plastic Film Rotogravure Printing Machine

Name: KTMS-B Series High Speed Plastic Film Rotogravure Printing Machine
Brand: KETE
SKU: 105839063
Availability: InStock

Ruian Kete International Trading Co., Ltd.

US$ 40,000 - 80,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

KETE

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name KETE

Model Number KTMS-B

Usage Paper Printer, Other, Paper Printer, Platic film, Aluminum Foil

Automatic Grade Automatic

Voltage 380V/3P

Gross Power About 135 kw

Dimensions(L*W*H) L13500 x W2900 x H2800mm

Weight about 17000kg

Certification CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Main Technical Specification:

Main Point	Model	KTMS-B
	Printing Colors	2~12 Colors (base on customer requirement)
	Printing Material	Plastic Film / Paper / Aluminum Foil etc
	Printing Width	600mm/800mm/1000mm/1200mm
	Heating Way	Electrical heating, Gas heating
	Printing speed	120m/min
	Total power	About 135kw(8 color)
	Machine weight	About 17 Ton (8 color)
	Machine Size(LWH)	13500 x 2900 x 2800mm (8 color)

Unwind &Rewind	Type	Twin-reel rotating design
	Raw Material Diameter	600mm (Optional 800mm or more)
	Paper Core Diameter	76 mm(optional152mm)
	Material Splicing and cutting	Manual(Optional automatic)
	Tension Control	Auto tension
	Air-shaft	Shaft type air shaft

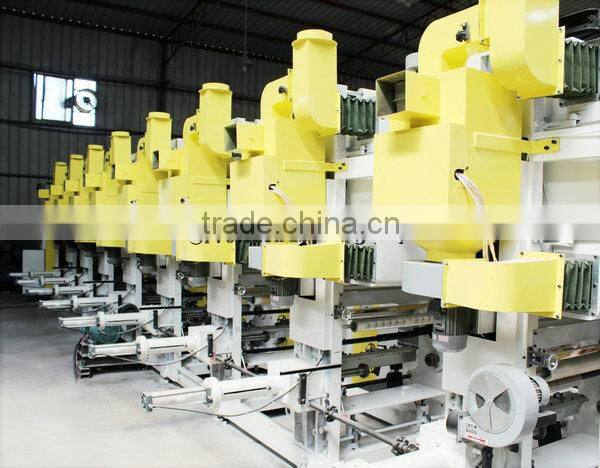

Printing Unit	Printing cylinder	Shaft-less type design
	Printing cylinder Diameter Range	120~300mm (special size possible)
	Color register precision	Vertical (Y-Axis) ≤±0.10mm (automatic) Horizontal (X-axis) ≤±0.10mm (Manual)
	Emboss rubber roller Diameter	135 mm (NBR Shore (A) 60 °~ 65°)
	Ink recycle	Pneumatic Ink pump

Control Part	Auto color register system	Include

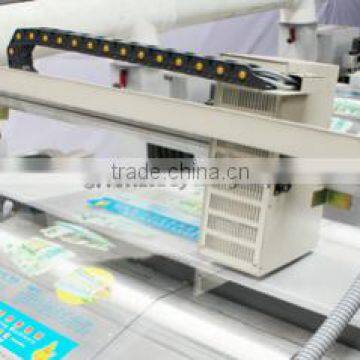

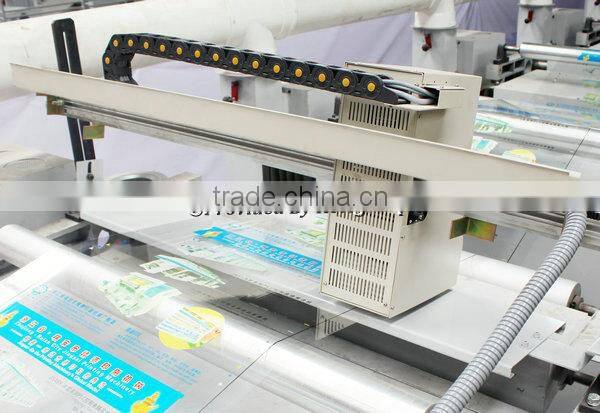

	Web video inspection system	include
	Water cooling system	Not Include(Optional possible)
	3 motor drive tension system	Not include(optional possible)
	7 motor drive tension system	Not include(optional possible)
	Ink viscosity	Not include(optional possible)
	Reverse Printing device	Not include(optional possible)
