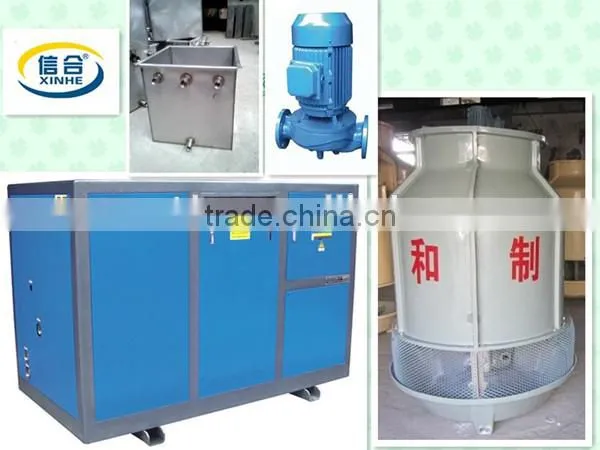

Small mobile water chiller with water cooling tower
I. Instruction of Small mobile water chiller :
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.
II. Technology parameter of Small mobile water chiller:
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
Capacity |
Power |
power | Flow water |
Cooling water |
size |
|
The models below include 1 compressor | ||||||
XCW-08S |
25,370kcal/hr |
8.2kw |
6.81kw |
4.2kw |
5.5kw |
1400*750*1200mm |
XCW-10S |
31,390kcal/hr |
10.4kw |
8.8kw |
5.5kw |
7.2kw |
1400*750*1200mm |
XCW-12S |
37,496kcal/hr |
12.6kw |
10.8kw |
6.6kw |
8.2kw |
1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D |
49,192kcal/hr |
16.2kw |
13.8kw |
7.8kw |
10.6kw |
1500*800*1250mm |
XCW-20D |
62,780kcal/hr |
20.8kw |
17.5kw |
11.2kw |
13.8kw |
1650*800*1350mm |
XCW-25D |
75,164kcal/hr |
25.6kw |
21.8kw |
13.4kw |
17.8kw |
1650*800*1350mm |
XCW-30D |
97,180kcal/hr |
32.6kw |
27.5kw |
16.6kw |
20.6kw |
2100*1000*1350mm |
XCW-40D |
124,700kcal/hr |
41.8kw |
35kw |
21.2kw |
28.5kw |
2200*1150*1500mm |
XCW-50D |
149,640kcal/hr |
51.6kw |
43.5kw |
26.5kw |
36.3kw |
2200*1150*1500mm |
Note: | ||||||
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C. | ||||||
2.Main Voltage :3phase-380V/50HZ and 3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 or R404a | ||||||

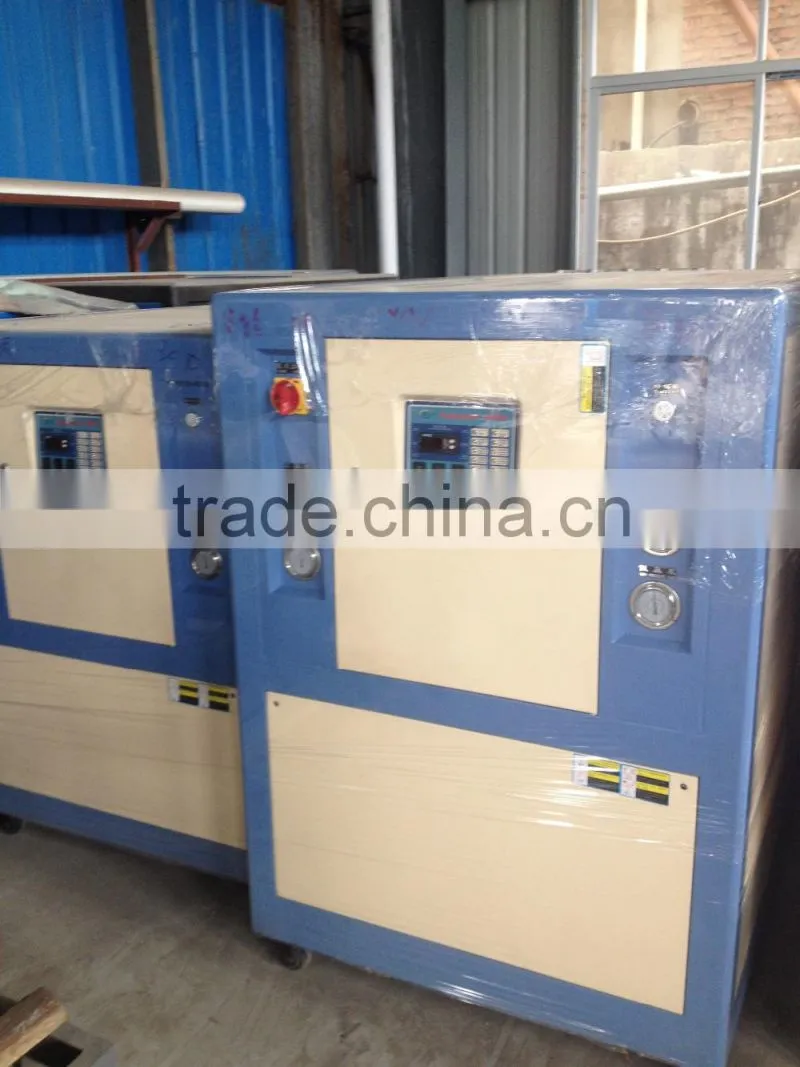

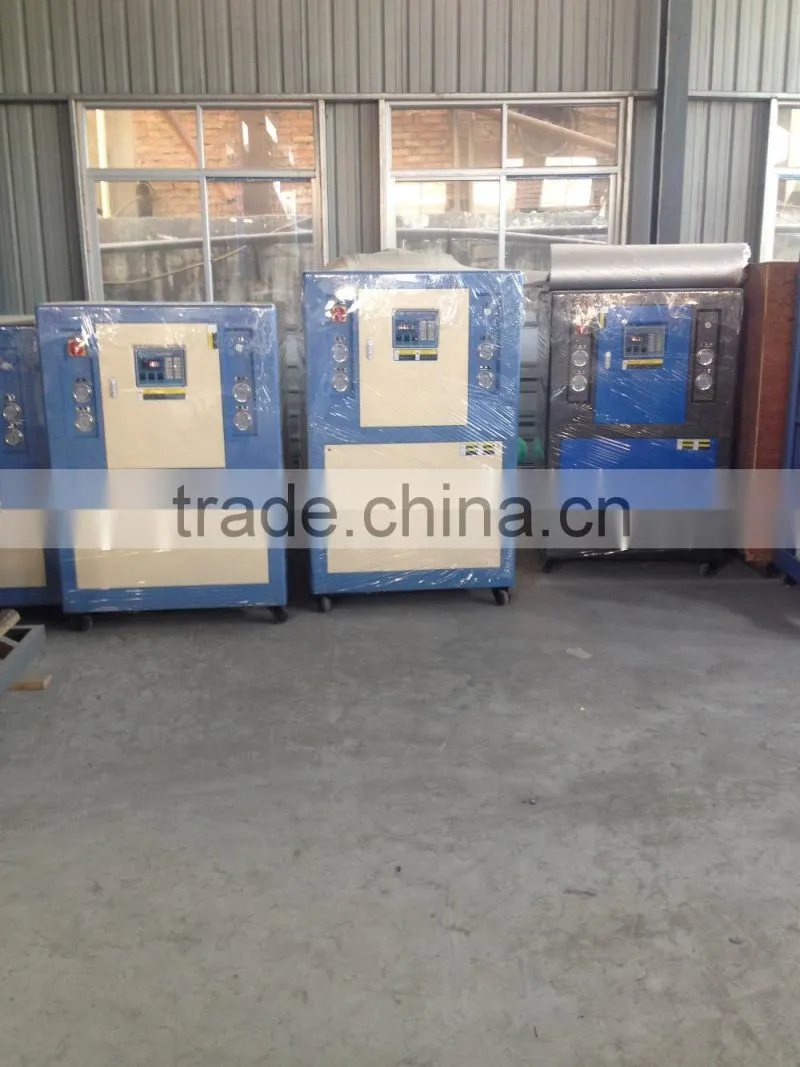

Water chillers in working shop
Cooling towers photo
IV.Certificates of Small mobile water chiller:
V.Widely application of Water chiller machine:
