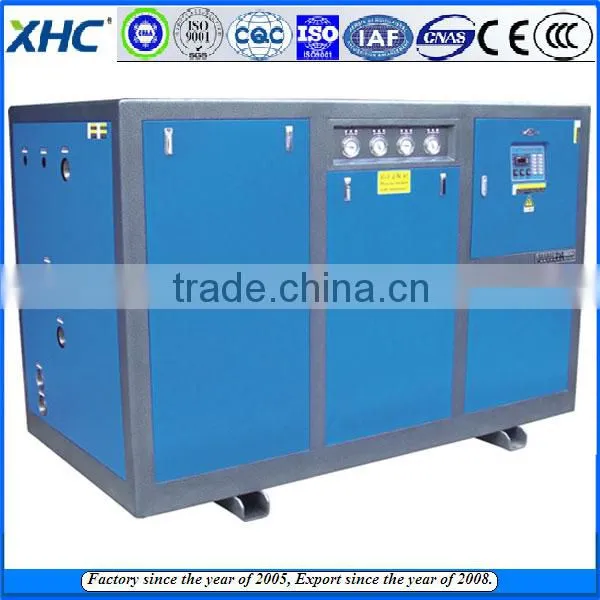

Industrial Water cooling machine Water cooled chiller price
Water cooled chiller in our working shop
I. Instruction of Water cooled chiller :
1.Compressors adopt the new and famous brand compressors imported from Europe, Japan and the United States with the feature of environmental protection, energy saving and durability.
2. It can be placed directly at working site to avoid the cooling loss caused by far distance;
3. Evaporator use the efficient and internal thread tube having the "U" shape design, small size, high efficiency and easy cleaning & maintenance;
4. Best suited for high-temperature and strong corrosion& severe pollution industries such as chemical, surface treatment, the plastic industry, etc.

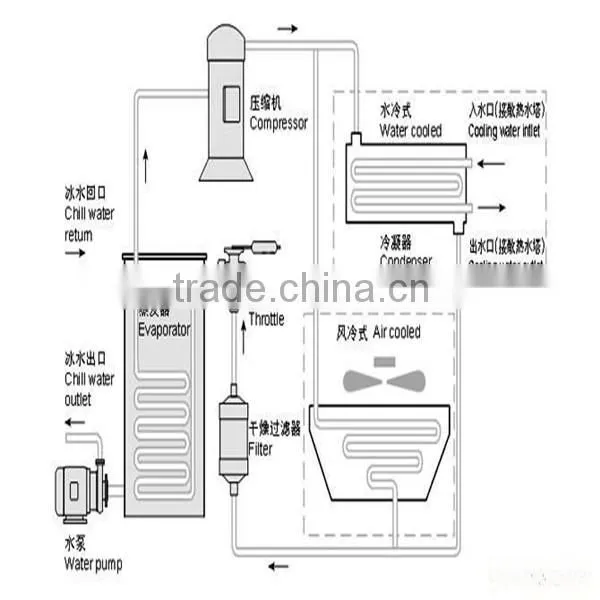

Water cooled chiller working principle
II.Accessories of Water cooled chiller :
Item |
Model |
Brand |
Remark |
Compressor |
|
Copeland |
USA |
Computer control |
|
XHC |
China |
Refrigerant |
R22 or R404a |
DUPON |
USA |
Electrical Accessories |
|
ZHENGTAI |
China |
Condenser |
|
XHC |
China |
Evaporator |
|
XHC |
China |
Pressure Gauge |
|
GARHOPE |
Sino-American joint venture |
Solenoid |
|
FENSHEN |
China |
Expansion Valve |
|
SAGINOMIYA |
Japan |
Filter |
|
SANRONG |
China |
Economizer |
|
XHC |
China |
Copper Tube |
|
HONGTAI |
Qingdao,China |
Steel |
|
BAOSTEEL |
Shanghai,China |
Pressure Controller |
|
FENSHEN |
China |
Stop valve |
|
FENSHEN |
China |
III. Technology parameter of Water cooled chiller :
Models |
Cooling |
Input |
Compressor |
Evaporator |
Condenser |
The machine |
Capacity |
Power |
Flow water |
Cooling water |
size |
||
The models below include 1 compressor | ||||||
XCW-08S |
25,370kcal/hr |
8.2kw |
6.81kw |
4.2kw |
5.5kw |
1400*750*1200mm |
XCW-10S |
31,390kcal/hr |
10.4kw |
8.8kw |
5.5kw |
7.2kw |
1400*750*1200mm |
XCW-12S |
37,496kcal/hr |
12.6kw |
10.8kw |
6.6kw |
8.2kw |
1400*750*1200mm |
The models below include 2 compressors | ||||||
XCW-16D |
49,192kcal/hr |
16.2kw |
13.8kw |
7.8kw |
10.6kw |
1500*800*1250mm |
XCW-20D |
62,780kcal/hr |
20.8kw |
17.5kw |
11.2kw |
13.8kw |
1650*800*1350mm |
XCW-25D |
75,164kcal/hr |
25.6kw |
21.8kw |
13.4kw |
17.8kw |
1650*800*1350mm |
XCW-30D |
97,180kcal/hr |
32.6kw |
27.5kw |
16.6kw |
20.6kw |
2100*1000*1350mm |
XCW-40D |
124,700kcal/hr |
41.8kw |
35kw |
21.2kw |
28.5kw |
2200*1150*1500mm |
XCW-50D |
149,640kcal/hr |
51.6kw |
43.5kw |
26.5kw |
36.3kw |
2200*1150*1500mm |
Note: | ||||||
1.Rate cooling capacity is based on the following parameter :evaporating temperature:10°C,Condensing temperature:43.3°C. | ||||||
2.Main Voltage :3phase-380V/50HZ and 3Phase-220V-50HZ/60HZ | ||||||
3.Refrigerant :R22 | ||||||

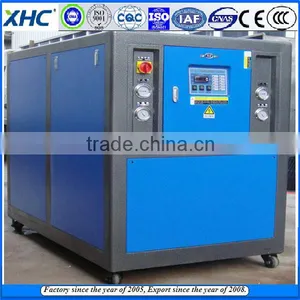

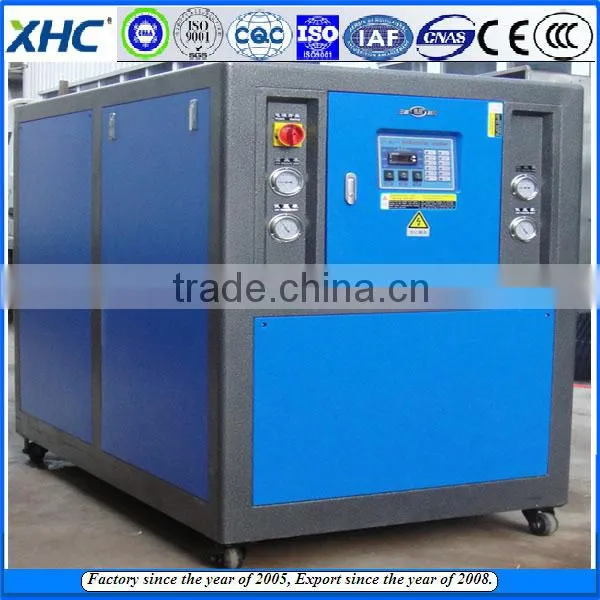

Water cooled chillers in our working shop

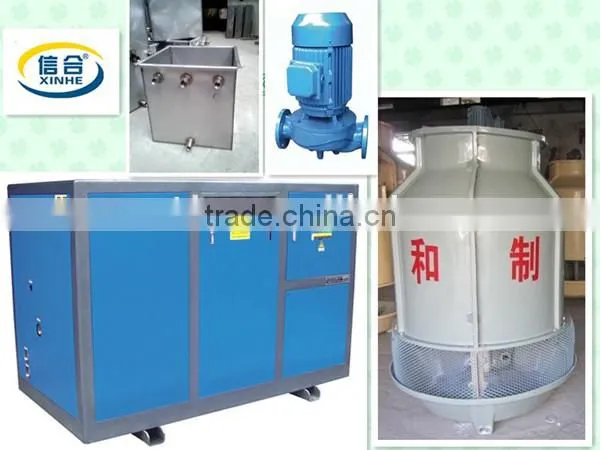

IV.Main parts of Water cooled chiller photos :
Water cooled chiller

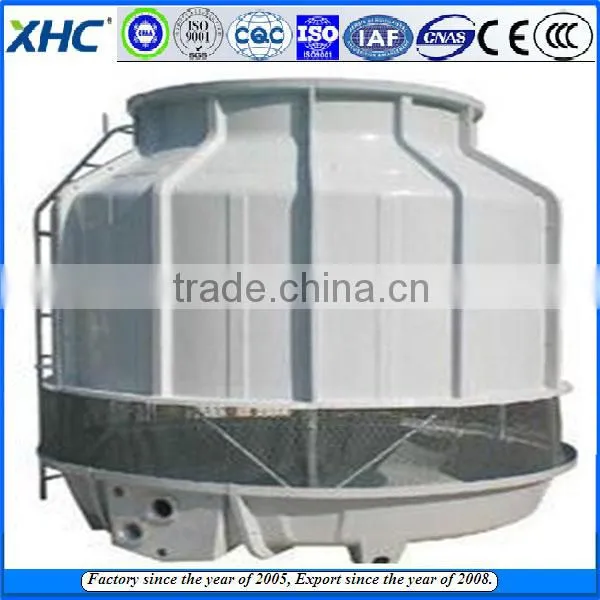

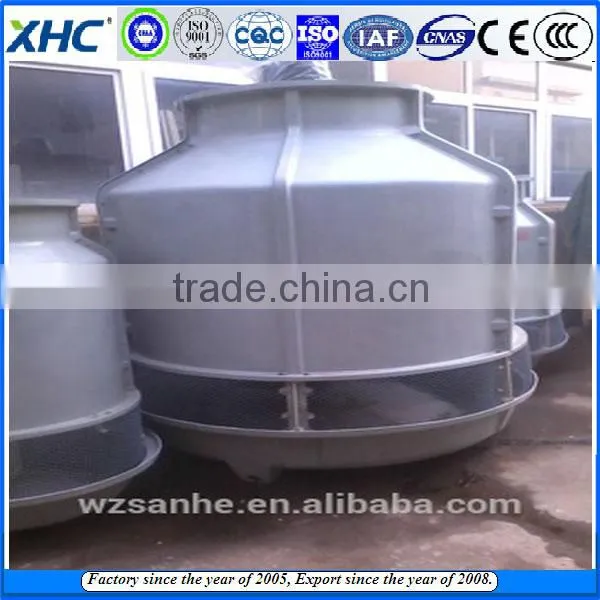

Cooling tower
V.Certificates of Water cooled chiller :
V. Our company on the fair photos :
Water cooled chiller on Canton fair .
Our company on Shanghai fair photo
VI.Widely application of Water cooled chiller :
It's widely used for Injection molding machine,plastic ,leather ,chemical factory ,and many fileds ,which need to low the water temperature .
Why choose XHC ?
We’re specialize in this field for 10years , with best service and competitive price , We’re 8year Alibaba gold supplier .
More service we can provide :
1.Professional free design .
2.OEM support .
3.Low MOQ .
4.Fast Delivery .
5.FOB price = Factory price .
How to Order ?
1.Pls tell us the Model ,Quantity ,which you need .
2.We will make a PI for you to confirm.
3.Pay the Deposit to us after you confirm the PI.
4.Goods will be shipping within 15days after we received your full payment .
5.EXW,FOB , CIF, CNF all ok, it’s up to you .
Thanks again , hope we can help you for your business !
