Round Counter Current Cooling water tower price list
Water cooling tower in our working shop
I. Instruction of Cooling water tower
1.A complete range of specifications from 8T to 1000T..
Water flow is from 8m3/h to 1000m3/h .
Inlet water temperature is below 60degreeC ,XTM-XX series .
Inlet water temperature is above 60degreeC,XTH-XX series .
2.Working with Water chiller ,pumps .
For installing photo
II. Instruction of Cooling water tower :
Cooling tower is mainly applied to air conditioning cooling system , cooling series , plastic , leather , power generation, and steam turbine , aluminum processing , air compressor , industrial cooling tower , cooling for industrial production or refrigeration technology process.
1.Tower body:
Made of FRP composite material, imported surface gel coat materials containing anti-ultraviolet stabilizer in color, with the merits of smooth surface , anti-aging, difficult to fade.
2.Motor:
Famous brand motor with hermetic waterproof, protection grade IP55, insulation F grade
Heat elimination film using Taiwan PVC and imported milk white PP, the maximum temperature resistance of PVC and PP 120degreel
3.Water Distribution system:
With the rotating tube type water distribution , water distribution device is made of ABS or copper alloy, with long-standing service and uniform water distribution
4.Transmission:
All rotating components adopt imported bearing with high precision and low repair rate, selects imported strong “V” shape belt with high strength , wear resistance and long service life.
Use metal parts for the outer pipes hitch of cooling tower and flange, adopt copper alloy swivel, which has reduce broken of tube connection hitch, flange and abraded of swivel in the largest degree.
Good material and reasonable design of the tower body ensure the long service life and cooling effect.

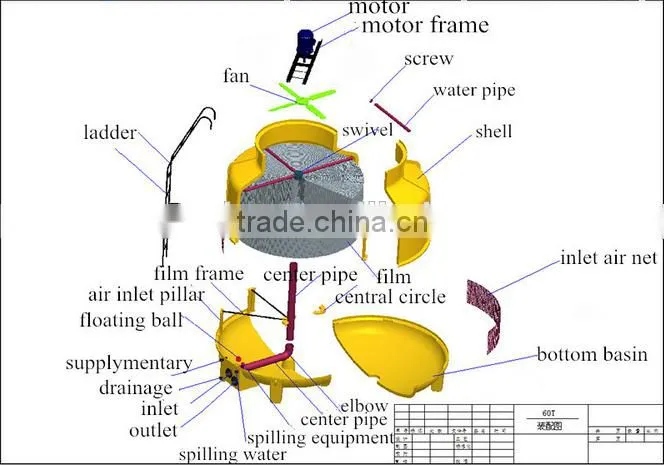

Cooling water tower structure photo
III.Working condition of Cooling water tower :
Water inlet temperature:37 degree celsius
Water oulet temperature:32 degree celsius
Wet bulb temperature:28 degree celsius
Dry bulb tem peranure:31.8 degree celsius
Atmospheric pressure:9.94×10000Pa
IV.Technology parameter of Cooling water tower :
Model |
Water flow |
Fan diameter |
Theoretical air |
Motor power |
Tower height |
Tower diameter |
Weight |
(m3/h) |
(mm) |
(m3/h) |
(kw) |
(mm) |
(mm) |
(kg) |
|
XTM-8 |
8 |
584 |
4500 |
0.18 |
1560 |
930 |
64 |
XTM-10 |
10 |
584 |
5700 |
0.18 |
1670 |
1000 |
85 |
XTM-12 |
12 |
760 |
6800 |
0.37 |
1700 |
1100 |
94 |
XTM-15 |
15 |
760 |
9100 |
0.37 |
1780 |
1250 |
124 |
XTM-20 |
20 |
760 |
11300 |
0.37 |
1780 |
1400 |
158 |
XTM-25 |
25 |
760 |
15000 |
0.55 |
1780 |
1400 |
174 |
XTM-30 |
30 |
884 |
17000 |
0.75 |
1960 |
1620 |
185 |
XTM-40 |
40 |
884 |
21000 |
0.75 |
2010 |
1740 |
192 |
XTM-50 |
50 |
884 |
23000 |
1.1 |
2010 |
1840 |
215 |
XTM-60 |
60 |
1190 |
28000 |
1.1 |
2400 |
2200 |
412 |
XTM-70 |
70 |
1190 |
33000 |
1.5 |
2530 |
2200 |
476 |
XTM-80 |
80 |
1470 |
45000 |
2.2 |
2680 |
2500 |
680 |
XTM-90 |
90 |
1470 |
48000 |
2.2 |
2710 |
2500 |
730 |
XTM-100 |
100 |
1470 |
50000 |
2.2 |
2820 |
2900 |
776 |
XTM-125 |
125 |
1800 |
57000 |
4 |
3130 |
3300 |
954 |
XTM-150 |
150 |
1800 |
70000 |
4 |
3350 |
3300 |
1062 |
XTM-175 |
175 |
1800 |
85000 |
4 |
3670 |
3600 |
1468 |
XTM-200 |
200 |
1800 |
99000 |
4 |
3900 |
4000 |
1797 |
V. Cooling water towers in working shop :
In working shop photo
Standard export packing ,ready for sending to Isreal
Note :
Any interest ,Pls tell us below :
1.What's the water flow you need ?
2.what's the water inlet temperature ? _degree C .
3.What's the voltage do you need ?
3phase 220V/50HZ ,3phase 220V/60HZ ,etc .
Thus ,we can quote for you fast and exactly .Best wishes !
