105kg Small Cube Ice Makers Price

US$ 985 - 1,185 MOQ: 1 Set

Key Specifications

Certification:

CE, Other, CE, ISO9001:2000

Power (W):

600

Voltage (V):

220

Wenzhou Sanhe Refrigeration Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo China

Delivery Detail:

Delivery time depends on order quantity.

Certification CE, Other, CE, ISO9001:2000

Power (W) 600

Voltage (V) 220

Model Number XICA-215

Brand Name XHC

Place of Origin Zhejiang, China

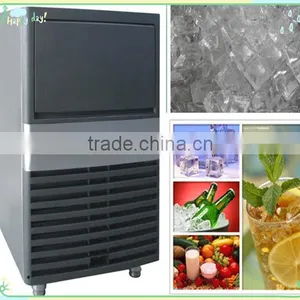

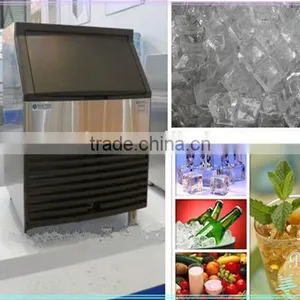

105kg Small Cube Ice makers price

I.Features of Ice makers:

1,XHC Ice makers: adopt matured computerized control system allows for automatic

2,Performance in water supply, ice making, ice removing, machine stop working of ice full and after taking ice turn on again with automatic.

3,During producing the ice, all the procedure controlled by computer progress and imported chip, which is steady and smoothly.

4,Protection of lack of water for machine stopped and high pressure for cooling system, you could adjust the ice thickness.

II. Technology parameter of Ice maker :

Model	Power supply	Ice shape	Max ice output	Storage capacity	Overall Size(mm)
Vertical ice maker (Air cooled) Single Phase-220V/50HZ
XICA-105	220V/360w	square	50kg	18kg	520560780mm
XICA-165	220v/490w	square	75kg	38kg	700660920mm
XICA-215	220v/600w	square	105kg	38kg	700660920mm

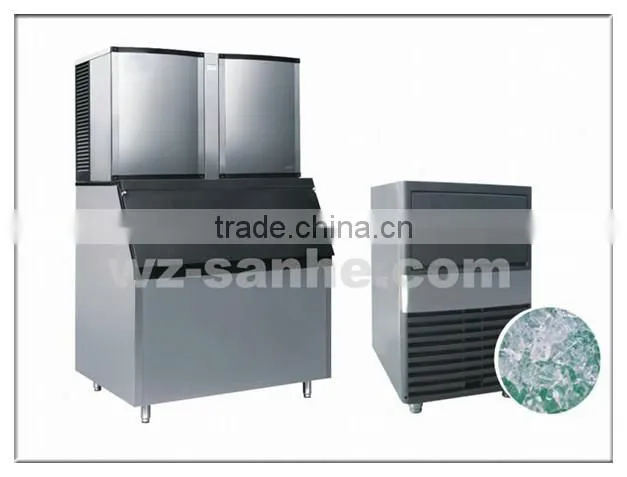

Separated ice maker (water cooled/Air cooled)
XICA-320	220V/780W	Square	140kg	80kg	5608401420mm
XICA-430	220V/820W	Square	195kg	100kg	5608401530mm
XICA-550	220V/920W	Square	230kg	180kg	7608401530mm
XICA-750	220V/1280W	Square	320kg	180kg	7608401530mm
XICA-1008	220V/1560W	Square	450kg	270kg	7608401760mm
XICW-1408	220V/2480W	Square	660kg	450kg	12209601830mm
XICW-1908	380V/3580W	Square	910kg	450kg	12209601830mm
XICW-2208	380V/4560W	Square	1000kg	500kg	12228501930mm
Remark :
1.Inlet water 16C,ambient temperature 35C.
2.Cube ice size :222222mm 292922mm
3.Voltage :3Phase 380V 50HZ ,3Phase 220V 60HZ .

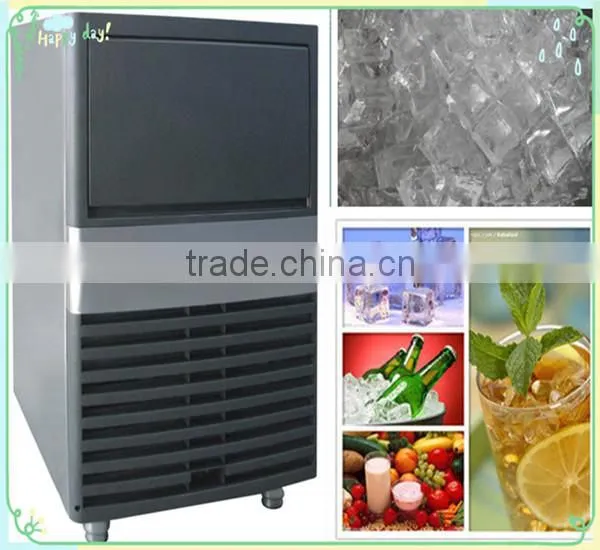

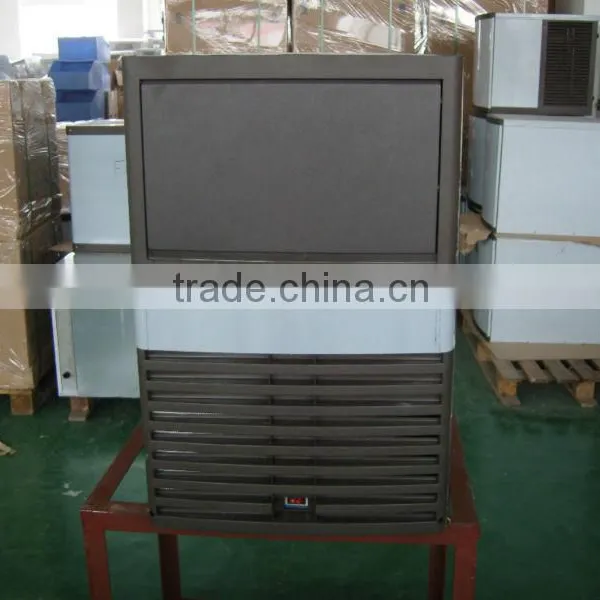

Ice maker photo

III. Accessories of Ice maker :

Items	Remark

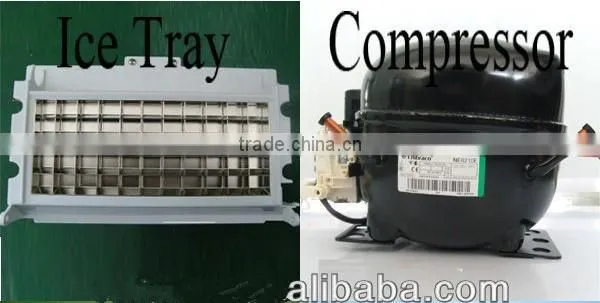

Compressor	XICA-105—XICA/W-750 : Aspera ,Slovakia
	XICA/W-1008—XICW-2208: Tecumseh ,France

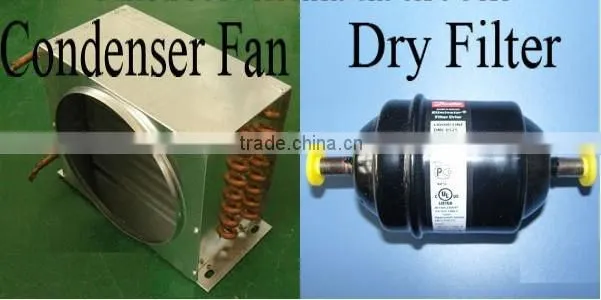

Condenser	2.2mm space fin radiator (Air cooled)/ Copper tube coils (water cooled)
Evaporator	Upright type nickel copper evaporation plate
Expanding valve	DANFOSS , Denmark
Computer control	XHC
Filter drier	Danfoss made in Mexico
Solenoid valve	Saginomiya made in Japan
Pump	Morrill made in Hangzhou
Condensing fan	Ebmpapst made in Shanghai
Refrigerant	Dupont made in USA.
Ice cube pool	Polyurethane foam overall
