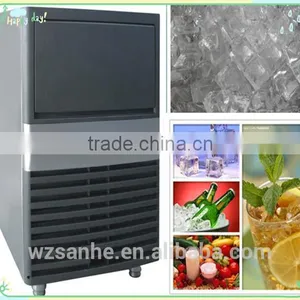

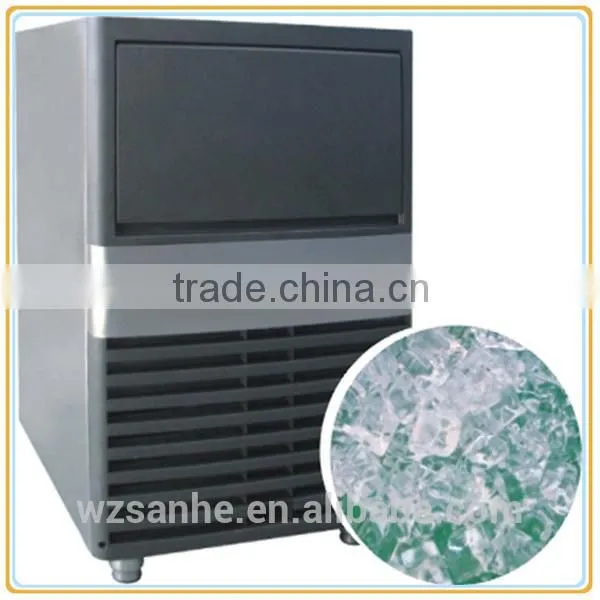

XHC Vertical Cube Ice Maker

US$ 985 - 1,085 MOQ: 1 Set

Key Specifications

Certification:

CE, Other, CE, ISO9001:2000

Power (W):

490

Voltage (V):

220

Wenzhou Sanhe Refrigeration Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Certification CE, Other, CE, ISO9001:2000

Power (W) 490

Voltage (V) 220

Model Number XICA-165

Brand Name XHC

Place of Origin Zhejiang, China

Specifications

Cube ice maker
1.Cube ice is edible .
2.Simple operate
3.Small size ,easy move .

Cube ice size :22*22*22mm 22*29*29mm (Adjustable)

I. Main features of Cube ice maker :

1. Ice form small, the equipment special deigned for the laboratory, hotel, restaurant, coffee shop, sell the ice shop, beverage plants design.

2. Stainless steel shell, beautiful and practical.

3. The high fluorine-free compressor, economy energy saving, make the cooling performance more hasten is perfect.

4. The control system adopts microcomputer board, process monitoring, control the reliable, smooth operation, and perfect Protection.

5. the high heat exchanger and thin profile and air, increase effective volume, come loose hot effect more beautiful, reduce the operating cost.

6. Overload, water and ice full automatic detection and protection.

7. The double helix extrusion ice way, ice compact structure, small volume, reduce laboratory empty take up between.

8. Introduce the ice machine production line from abroad, reliable operation, product quality can be guaranteed.

II. Technology parameter of Cube ice maker:

Model	Power supply	Ice shape	Max ice output	Storage capacity	Overall Size(mm)
Vertical ice maker (Air cooled) Single phase-220V/50Hz
XICA-105	220V/360w	square	50kg	18kg	520560780mm
XICA-165	220v/490w	square	75kg	38kg	700660920mm
XICA-215	220v/600w	square	105kg	38kg	700660920mm
Separated ice maker (water cooled/Air cooled)
XICA-320	220V/780W	Square	140kg	80kg	5608401420mm
XICA-430	220V/820W	Square	195kg	100kg	5608401530mm
XICA-550	220V/920W	Square	230kg	180kg	7608401530mm
XICA-750	220V/1280W	Square	320kg	180kg	7608401530mm
XICA-1008	220V/1560W	Square	450kg	270kg	7608401760mm
XICW-1408	220V/2480W	Square	660kg	450kg	12209601830mm
XICW-1908	380V/3580W	Square	910kg	450kg	12209601830mm
XICW-2208	380V/4560W	Square	1000kg	500kg	12228501930mm
Remark :
1.Inlet water 16C,ambient temperature 35C.
2.Cube ice size :222222mm 292922mm can be adjusted .
3.Voltage :3Phase phase 380V 50HZ , 3Phase 220V 60HZ .
