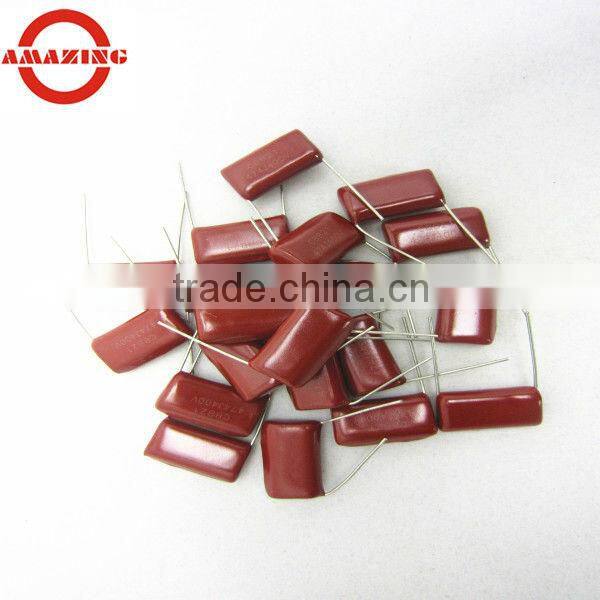

Polypropylene Film Cap /CBB21 0.22uf 160vdc China Capacitor Manufacture

Name: Polypropylene Film Cap /CBB21 0.22uf 160vdc China Capacitor Manufacture
Brand: Amazing
SKU: 105814305
Availability: InStock

US$ 0.003 - 0.08 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Amazing

Model Number:

CBB21 / CBB22

Dongguan Amazing Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Amazing

Model Number CBB21 / CBB22

Type Polypropylene Film Capacitor

Application General Purpose

Package Type Through Hole

Capacitance 0.22uf

Rated Voltage 160vdc

Operating Temperature -40~+85

1.Polypropylene Film Capacitors
2.MOQ:1000pcs
3.widly used in high frequency
4.OEM is acceptable

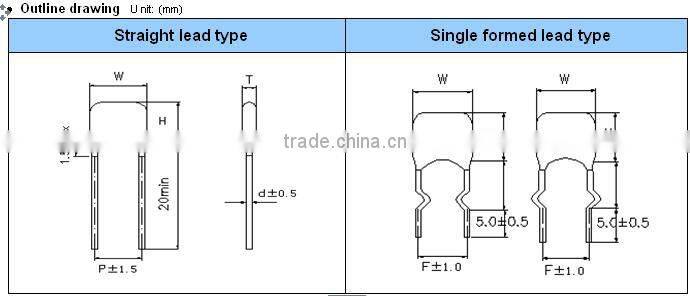

5.17*10*8mm

polypropylene film cap /CBB21 0.22uf 160vdc china capacitor manufacture

· Construction

· Polyester film dielectic with aluminum foil electrodes, radial leads of

tinned wire are electrcally welded to the electrodes, epoxy resin coating.

· Features

· This capacitor adopt polypropylene film as dielectric and sink the

aluminum on the film by the vacuum evaporated method to make

the electrode involution.

· Epoxy resin powder coating, low loss at high frequency.

· Small inherent temperature rise.

· Small size, excellent performance.

· Application

· Widely used in high frequency, DC, AC, and pulse circuits.

· Specifications

Reference Standard	GB 10190(IEC384-16)
Capacitance Tolerance	J:± 5%, K: ±10%
Operation Temperature	-40°C~+85°C
Capacitance Range	0.001uF~3.3uF
Rated Voltage	160VDC,250VDC,400VDC,630VDC,1000VDC
Insulation Resistance	≥ 25000MΩ CR ≤0.33uF ≥ 7500s CR >0.33uF
Dissipation Factor	≤ 0.1% (at 20 °C, 1KHz)
Endurance	500 hours with 125% of rated voltage at 85 °C,after the test. C/C≤2%, (DF)≤ 0.04%; C≤0.33uF , IR≥7,500 MΩ ; C>0.1uF , IR ≥1,500MΩ, C>0.10uF IR*C≥ 1,5000MΩ (at20 °C 1KHz)
