Network Switch

Shenzhen 3onedata Technology Co., Ltd.
Network Switch thumbnail-1
Network Switch photo-1
US$ 1 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 8
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, 8
Transmission Rate 10/100Mbps
Function QoS
Communication Mode Other, Full-Duplex & Half-Duplex
Certification FCC,CE,RoHS
Switch Capacity 1.6G
Brand Name 3onedata
Model Number IES308
Place of Origin Guangdong, China

Specifications

8-port network switch for industry
Broadcast storm protection
Redundant power input 12~48VDC
Working temperature -40~75

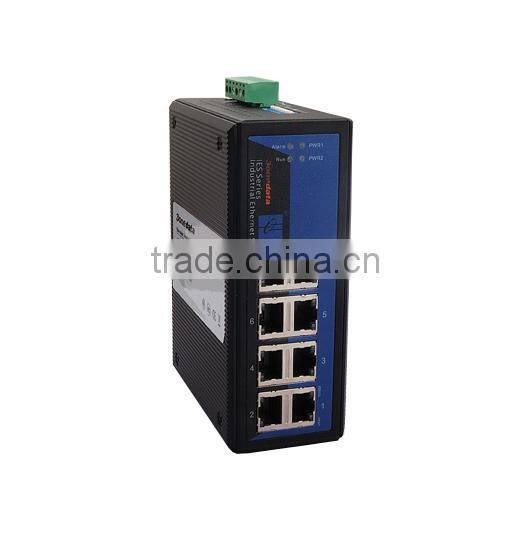

8-port 10/100M Unmanaged Industrial Ethernet Switch





Features

1) Advanced Ethernet switch technical;



2) IEEE802.3/802.3u/802.3x/802.3d,store and forward;



3) Plug-and-play, 10/100M, F/H duplex, MDI/MDI-X auto negotiation;



4) Broadcast storm protection;



5) Relay output warning for power failure and port break alarm;



6) Redundant 24VDC power input(12V~48VDC);



7) -40~75°C working temperature;



8) Designed for industrial applications. IP30 protection, rugged high-strength metal case.



Introduction
IES308 series are a smart plug-and-play industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dustproof fully sealed structure(pr protective case of IP30 level), over-current, over-voltage and EMC protected redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.

      IES308 Supports 8 ports 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection.



Specification
Interface

RJ45 Ports                  10/100BaseT(X) auto connection, F /H duplexor force work mode, and support                                            MDI/MDI-X connection



Alarm output interface            One relay alarm output. Support power, port link and network alarm



Indicator                       Power, Port link, abnormity alarm indication, 10M/100M Rate



Technology

Standards                                             IEEE802.3, IEEE802.3x, IEEE802.3u



Forwarding and Filtrate Rate            148810pps



Processing type                                  Store and Forward



System exchange bandwidth           4.8G



Relay

Max voltage                     DC30V



Max power input            24VA



Power

Input Voltage                  24VDC (12VDC~48VDC)



Overload Current Protection



Support dual power backup



Mechanical

Dimensions                   136mm×52mm×105mm (H×W×D)



Casing                             IP30 protection, Metal case



Weight                             800g



Environmental

Operating Temperature                  -40 to 75°C



Storage Temperature                     -45 to 85 °C



Ambient Relative Humidity            10% to 95% (non-condensing)



Approvals

EMI                          FCC Part 15, CISPR (EN55022) class A



EMS                        EN61000-4-2(ESD)

                                EN61000-4-3(RS)

                                EN61000-4-4(EFT)

                                EN61000-4-5 (Surge)

                                EN61000-4-6 (CS)

                                EN61000-4-8

                                EN61000-4-11



Shock                    IEC 60068-2-27



Free Fall               IEC 60068-2-32



Vibration               IEC 60068-2-6



Warranty               5 years



Approvals             FCC,CE, RoHS



Packing List

1) 3onedata Industrial Ethernet switch IES308 (plus terminal block)×1



2) User manual ×1



3) DIN-Rail fittings ×1
