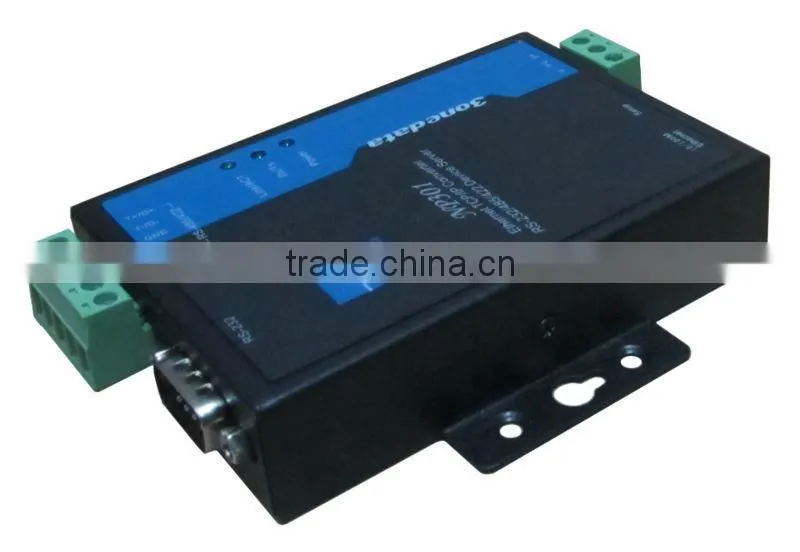

TCP/IP Converter

Feature

1) 3-in-1 RS-232/RS-485/RS-422 serial interface;

2) Support 10/100M auto-sensing Ethernet;

3) Support 300bps~115.2Kbps;

4) Support TCP, UDP, ARP, ICMP, HTTP and DHCP protocol;

5) Support across gateway, router communication;

6) Support standard TCP/IP SOCKET;

7) Support Virtual serial driver access and auto connect after the network disconnect;

8) Provide bath installation Windows configure tool;

9) Choice of configuration methods: Windows, TELNET and WEB.

Introduction

NP301 is a serial device server which can connect with network fast. it provides one RS-232/485/422 (RS-232: DB9M; RS-484/422: 4 bits terminal block) and 1 10/100Base-T(X) Ethernet port, it can manage the disperse serial device or host computer by network, easily and convenience. setting or software upgrade by serial program group in apply, support TCP, UDP, ARP, ICM and DHCP protocol, support Windows Native COM and auto-connect function once the network intermit.

        In addition, NP301 provide the management collocate tools that based Windows flat roof. it can lead the user manage and configure facility step by step, all of the setting can be done by network or serial. Support pass gateway and router, easily for user to set IP address, Server and Client mode, size of data and so on, Can realize the serial device connect with network by simply setting.

Specification

Ethernet Port

Standard                                             10/100Base-T(x)

Speed                                                  10/100M auto-sensing

Working                                               TCP Server, TCP Client, UDP and Real COM driver

Memory                                                Most 32Kbyte

Transmission                                    100m

Electromagnetism isolate               1KV

Connector                                           RJ45

Serial Port

Standard                                                 RS-232/RS-485/RS-422

Signals                                                   RS-232:DCD,RXD,TXD,DTR,GND,DSR,RTS,CTS

                                                                 RS-485:Data+,Data-,GND

                                                                 RS-422:TXD+,TXD-,RXD+,RXD-,GND

Working mode                                      Asynchronous format, point to point, 2 wires half duplex, 4 wires full duplex

Parity                                                       None, Even, Odd, Space, Mark

Data bits                                                 7bit, 8bit

Baud rate                                                300bps ~ 115.2Kbps

Flow control                                            RTS/CTS

Direction control                                    RS485 side adopt ADDC technology, auto text and control data transfer direction

Loading                                                   RS-485/422 side support 32 nodes (customize 128 nodes) loopback

Transmission                                        RS-485/422 side 1200M,

                                                                  RS-232 port 15M

Interface protection                               1500W surge protection,

                                                                  15KV ESD protection

Software

Network protocols                     Support TCP, UDP, ARP, ICMP, HTTP and DHCP

Driver support                            Windows Real COM driver(Windows NT/2000,WindowsXP/2003)

Configuration options              Windows, TELNET and WEB

Power

Power input                               12~36VDC

Consumption                            <1W

Environmental

Operating Temperature            -20 ~60°C

Storage Temperature               -25~85 °C

Relative Humidity                       5% to 95%

Appearance

Color                     Black

L×W×H                100mm×69mm×22mm

Material                Iron (Shell)

Weight                 240g

Warranty time         5 years

Certification             CE,FCC, RoHS

Packing List

1) 3onedata Serial Device Server NP301(plus terminal block)×1

2) User manual ×1

3)Straight network cable×1

4)Software CD-ROM

5)Product Warranty booklet

6)DIN-Rail Mounting Kit(35mm)×1,optional
