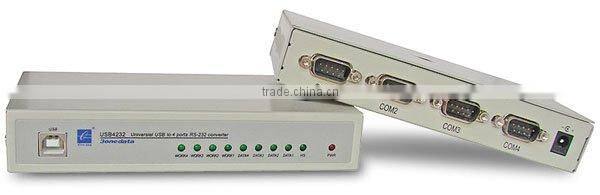

usb to rs232 serial db9 adapter converter/usb to rs232 serial port hub

Specifications

usb to rs232 converter
1.USB to 4-port RS232 serial port converter;
2.No IRQ, I/O Address
3.USB2.0

 USB to Serial Converter USB to 4 port RS232 hub

Features

1. USB to 4-port RS-232 converter

2. Single chip(ASIC) USB port to serial port communication

3. Support Windows98/ME and Windows2000/XP,

    Windows Server 2003/2008, Windows 7/Vista

4. Support powered from USB or 5VDC external power input

5. No IRQ, I/O Address

6. Support USB2.0, baud rate can reach up to 12Mbps

7. 15KV ESD protection



Introduction



USB to serial converter,USB to 4-port RS-232 Hub, 4 USB Hub, A quick and easy way to expand your PC's port count and to adapt serial devices to your USB PC.  4 USB Hubs are intelligent expansion units that connect to a PC, thin client or server via a USB port. 4 USB Hub provides four RS-232 serial ports, is compliant with USB 1.1 and 2.0 specifications, and meet the 480 Mbps high-speed requirement of Hi-Speed USB 2.0. Using your computer’s USB ports to connect serial devices reduces the total cost of ownership, investment in hardware, and long term management and integration costs.





Specification



USB

Compliance: USB1.1/2.0 compliant

USB signal: VCC, DATA+,DATA-,GND

Speed: 480Mbps(high-speed), 12Mbps(full-speed)

Connector for External Antenna: USB type B female

RS-232

Standards: EIA RS-232C

Number of Ports: 4

Connectors: DB9 male

RS-232 signal: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND

Working mode: Asynchronous, point to point

Baud rate: 300~115.2Kbps

Parity: None, Even, Odd, Space, Mark

Data bits: 7, 8

Stop bits: 1, 2

Flow control: RTS/CTS, XON/XOFF

Interface protection: 1500W surge protection, 15KV ESD protection

Driver Support

Operating System: Support Windows98/ME and Windows2000/XP,               Windows Server 2003/2008, Windows 7/Vista

Power

Power input: 5VDC power input

Consumption: 300mA

Environment

Operating temperature: -10°C to 60°C

Storage temperature: -40°C to 85°C

Humidity: 5% to 95%(no condensation)

Appearance

Dimensions: 160.0mm×94.0mm×28.0mm

Material: Iron(shell)

Color: White

Weight: 500g

Warranty: 5 years

Approvals: FCC, CE, RoHS approvals





Update Date:2012-04-24 04:52:25
