4 Ports RS-485/422 to Ethernet Converter
US$ 1 - 200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
3onedata/OEM
Model Number:
NP304T-4DI(RS-485)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3onedata 8 Ports RS-485/422 to Ethernet ConverterUS$ 1 - 300MOQ: 1 Piece -
1 Port RS232/485/422 Serial Device ServerUS$ 1 - 50MOQ: 1 Piece
-
2 Ports CAN Bus to Ethernet ConverterUS$ 1 - 100MOQ: 1 Piece
-
16 Ports RS-232/485/422 to Ethernet ConverterUS$ 1 - 500MOQ: 1 Piece
-
16 Ports RS-232/485/422 to Ethernet Converter With Redundant Power SupplyUS$ 1 - 500MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
3onedata/OEM
Model Number
NP304T-4DI(RS-485)
4 ports RS-485/422 to Ethernet Converter
| Introduction |
| NP304T-4DI(RS-485) is an high performance, industrial grade serial to Ethernet server, it can satisfy some kinds of customer requirements in consumption, temperature, volume and handle ability. It provides 4 ports RS-485/422(RS-485/422 connector: 5 bit terminal block) and 1 port 10/100Base-T(X) Ethernet, can focus manage disperse serial device, master through network, easy, convenience. In application, can configure, upgrade through WEB. Moreover, NP304T-4DI(RS-485) provide strong function configuration tools based in Windows platform, it can guide user configure the device step by step, all configurations are coming true by WEB or Telnet, support cross-gateway and cross-router, user can can flexible configure IP address, server and client mode, data package size etc. NP304T-4DI(RS-485) adopts EMC protection design, can work in rugged environment. |
| Features |
1.Support 10/100M Ethernet 2.Support 4 PortS RS-485/422 3.Support WEB and Telnet configuration 4.Support TCP, UDP, ARP, ICMP, DHCP and DNS protocol 5.Support TCP Server, TCP Client, TCP Auto, UDP and Real COM driver working mode 6.Support UDP multicast and UDP subnet mode 7.Support heartbeat time and time over disconnect function 8.Support cross-gateway and cross-router communication 9.Support virtual serial COM port access and Network interruption automatic recovery 10.Provide Windows configuration tools for easy to use, easy to bath install. 11.Industrial grade design, IP30 protection grade 12.No fan, low consumption design 13.Working temperature: -40~85℃ |
|
Specification | |
| Ethernet Port |
Standard: 10Base-T, 100Base-TX Interface Protection: 1.5KV ESD protection |
| Serial Port | Serial Port: 4 ports RS-485/422 RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Parity bit: None, Even, Odd, Space, Mark Data bit; 5bit,6bit,7bit,8bit Stop bit: 1bit,1.5bit,2bit Band rate: 300bps~115200bps Loading: support 32 nodes loop back Transfer distance: no more than 1200m Connector: terminal block Protection: class 3 static protection |
|
Power Supply |
Power input: 9~48VDC No-load consumption:0.89W@12VDC |
|
Environment Requirement |
Working temperature: -40~85℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Physical Characterisitics |
Shell: IP30 protection, metal shell |
| Industrial Standard | EMS: EN 61000-4-2 (ESD) Level 3 |
|
Certification |
CE, FCC, RoHS |
|
Warranty |
5 years |
|
Packing List |
1. Serial Device Server NP304T-4DI(RS-485) × 1 2.Attached CD × 1 3. User manual × 1 4. Certificate of quality × 1 |

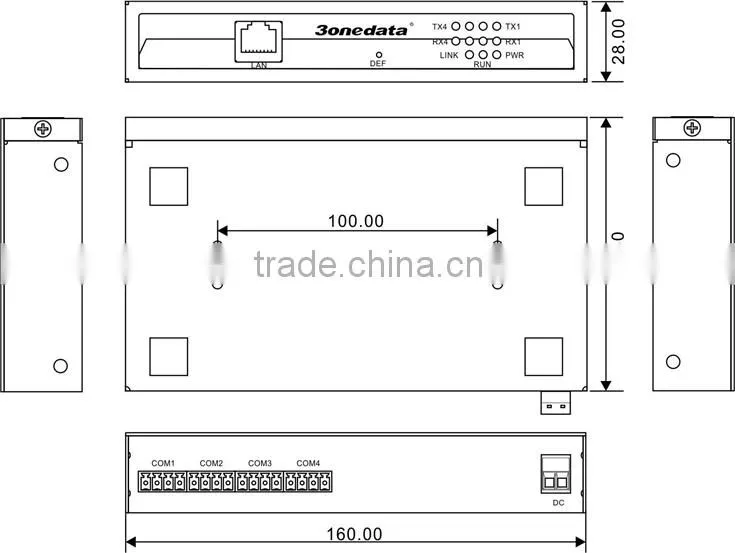

| Dimension |
| |

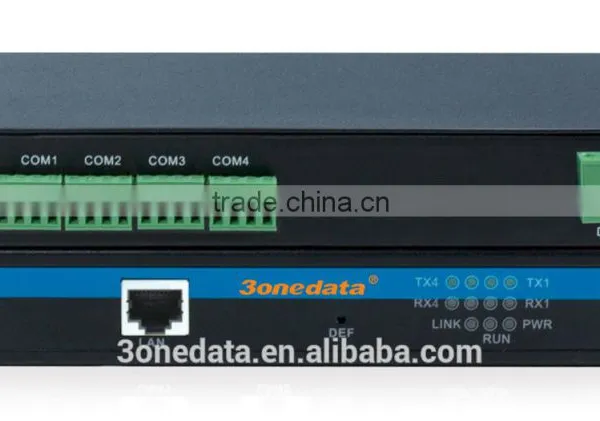

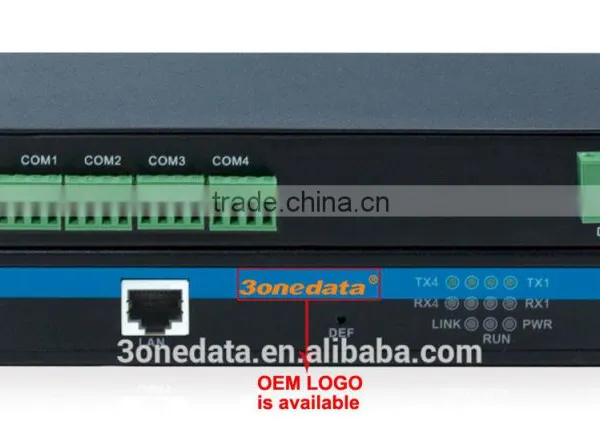

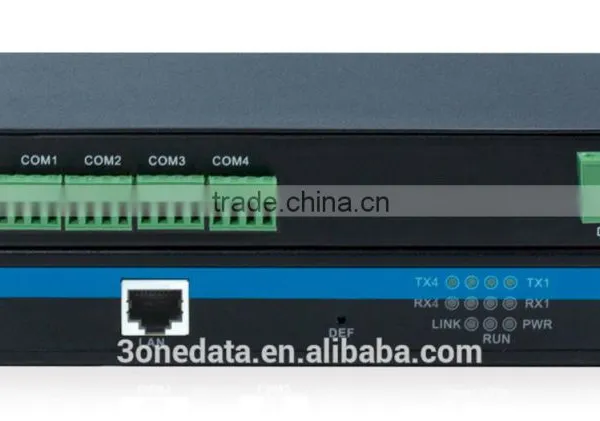

| Show Case |
|
|

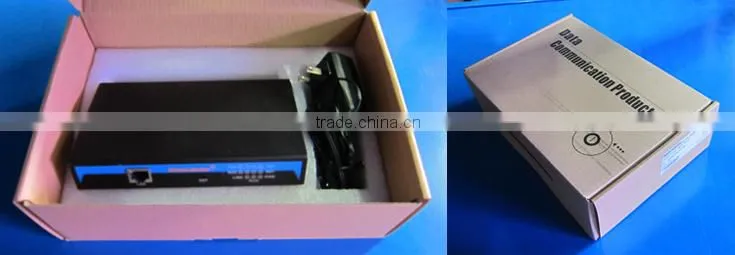

| Package |
|
| Shipping |
|
| Order Information |
| NP304T-4DI(RS-485): 4 ports RS-485/422 to Ethernet Converter , 9~48VDC, wall mounting |
