16 Ports RS-232/485/422 to Ethernet Converter

       NP3016T-16D(RS-232/485/422)-P(85/265VAC) is a serial port connecting server that can provide serial device with network connectivity. It provides 16 ports RS-232/485/422 (RJ45 connector) and 1 port 10Base-T/100Base-TX Ethernet, which allows the scattered serial devices and hosts to be centrally managed in an easy and convenient way through network. It supports TCP, UDP, ARP, ICMP, HTTP, DNS and DHCP protocols, virtual serial driver access mode and automatic recovery of network.
      In addition, NP3016T-16D(RS-232/485/422)-P(85/265VAC) provides powerful management and configuration tools based on Windows and WEB management interface, guiding users’ configuration of the devices step by step. All configurations can be done through the network or serial port, supporting cross gateway and router communication. It allows users to configure flexibly the IP address, Server or Client mode, size of packet, etc. Through simple settings, serial devices can access Internet immediately.

     1U rack-mounted installation is supported for easy use in engineering.

Standard: 10Base-T, 100Base-TX
Protocol: support TCP, UDP, APR, ICMP and DHCP protocol
Signal: Rx+, Rx-, Tx+, Tx-
Rate: 10/100Mbps
Working mode: full or half duplex
Operating mode: TCP Server, TCP Client, UDP Server, UDP Client, UDP Multicast, UDP Rang, Pair Slave, Pair Master, Real Com
Connector: RJ45

 Twisted-pair: 100m (standard CAT5/CAT5e cable)
Serial port transmission distance: RS-232  15m , RS-485/422  1200m

Power input: 85~265VAC

No-load consumption:6.7W@ 220VAC
Full-load consumption: 7.3W@ 220VAC

Operation indicator: RUN
Power indicator: PWR
Network connection/operation status indicator: LINK1
16 serial ports COM1~COM16 data sending indicator: TX1~TX16
16 serial ports COM1~COM16 data receiving status indicator: RX1~RX16

Shell: IP40 protection grade, metal shell
Installation: 1U rack-mounted
Weight: 2500g

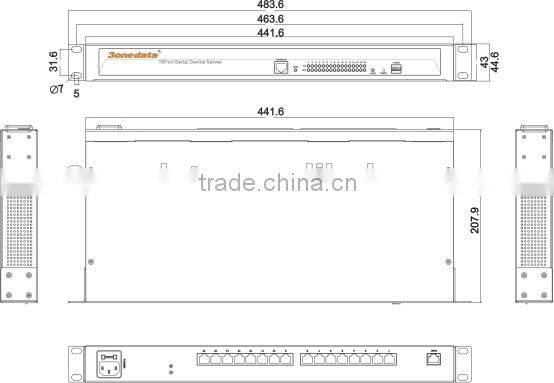

Dimension (W*H*D): 441.6mm*44.6mm*207.9mm

EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD), Level 3
EN61000-4-4 (EFT), Level 3
EN61000-4-5 (Surge), Level 2
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

1. Serial Device Server NP3016T-16D(RS-232/485/422) × 1

2.Attached CD  × 1

3. User manual × 1

4. Certificate of quality × 1
5. Warranty card × 1

6.Power cable  × 1
