Industrial Isolation RS-232/485 to 4-port RS-485 HUB

Feature

1. Support two host computer RS-232 and RS-485 ports and four slave computer RS-485 ports
2. Support transmission rate 300~115200bps
3. Support multiple SW4485I-P(12/48VDC) cascade connection as many as 256-way RS-485 bus
4. Each slave computer port can connect 32 standard RS-485 devices (nodes)
5. Special automatic reverse connection alarm
6. Zero-delay automatic send/receive conversion function
7. is provided with 2KVAC isolation protection,Level-4 electrostatic protection and level-2 radiated susceptibility
8. Industrial design, IP40 protection
9. Support DIN-rail installation
10. Working temperature -40~85℃

Introduction

      SW4485I-P(12/48VDC) is RS-485 HUB is designed for RS-485 system in complicated electromagnetic environment. It supports a transmission rate up to 115.2KBPS, and adopts two-way transparent transmission, which allows one RS-485 bus or one RS-232 bus to be divided into 4 RS-485 buses, or any divided RS-485 signal to be transparently transmitted to host computer RS-485 or RS-232 hub. Each RS-485 port of slave computer is provided with reverse connection alarm and protection function, with which the reliability of existing RS-485 network is greatly improved, effectively reducing the network maintenance time. To ensure the security and reliability of data communication, the RS-485 ports are provided with 2KVAC isolation protection, level-4 electrostatic protection and level-2 radiated susceptibility, effectively preventing surge current, common ground and radiated interference, making the hub safe and reliable and suitable for outdoor application.
      SW4485I-P(12/48VDC) also comes with RS-485 bus star connection. Users can easily improve RS-485 bus structure and divide the network segment. Proper utilization of SW4485I-P(12/48VDC) can help design a unique and reliable RS-485 system. SW4485I-P(12/48VDC) adopts EMC protection and supports DIN-rail installation, allowing it to be used reliably in severe environment at a temperature of -40℃~85℃.

Specification

Communication Parameter

Interface Protocol: compliant with EIARS-232/485



Interface Number        1 host computer RS-232 port, 1 host computer RS-485 port, 4 slave computer RS-485 ports



RS-232 signal              TxD, RxD, GND



RS-485 signal              D+, D-, GND



Parity bit                         None, Even, Odd, Space, Mark



Data Bit                         5bit, 6bit, 7bit, 8bit



Stop Bit                         1bit, 1.5bit, 2bit



Baud Rate                    300bps~115200bps



Direction Control         RS-485 adopts ADDC technology



Transmission Media               Twisted-pair shielded cable or UTP 485 dedicated line



Load Capacity              RS-485: 32-node ( can be customized 128 nodes)



Port Protection             2KVAC isolation protection, level-4 electrostatic protection, level-2 radiated susceptibility



Transmission Distance         RS-485:1200m,

                                                    RS-232 : no more than 15m



Connector

Host computer RS-232/485: 5PIN terminal blocks



Slave computer RS-485: 10PIN terminal blocks



Indicator

PWR             power indicator



TXD              data transmitting status indicator



RXD             data receiving status indicator



E1~E4         slave computer RS-485 port status indicator



Power

Input Voltage               12~48VDC



No-load Power           0.696W@ 24VDC



Full Power                   0.696W@ 24VDC



Working Environment

Working temperature               -40~85°C



Storage temperature                -45~85°C



Humidity                                      5%~95%( no condensation)



Mechanical Structure

Shell                       IP40 protection grade, high strength metal casing



Installation            DIN-rail mount



Weight                   384.8g



Size(H×W×L)        110mm*95mm*35mm

 Dimension

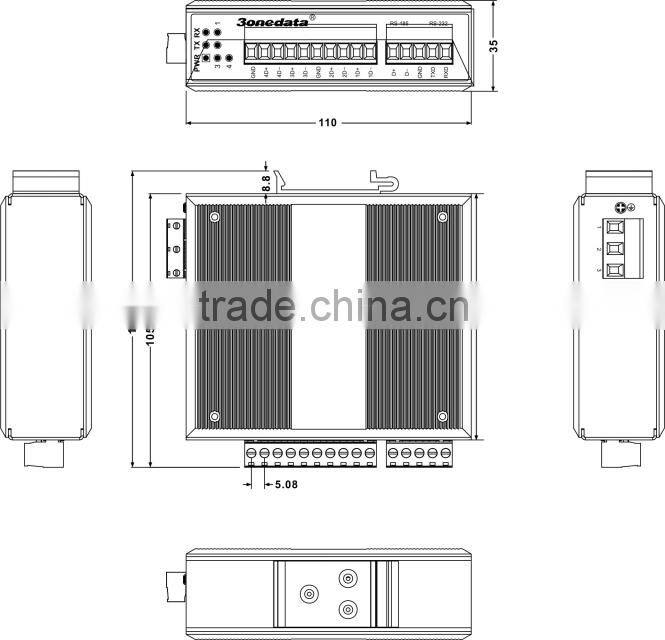

 Industrial Isolation RS-232/485 to 4-port RS-485 HUB

Industry Standard

EMI                     FCC Part 15, CISPR (EN55022) class A



EMS                   EN61000-4-2 (ESD), Level 4

                           EN61000-4-3 (RS), Level 2



Shock                IEC60068-2-27



Free Fall           IEC60068-2-32



Vibration           IEC60068-2-6



Warranty Period          5 years



Approvals                     CE,FCC,RoHS,UL508(pending)



Packing List

1) 3onedata SW4485I HUB(plus terminal block)×1

2) User Manual×1

3) Certificate×1

4) Warranty card×1

5) Accessories of wall-mounted or panel-mounted installation

6) Warranty card×1
