10-port Managed Industrial PoE Switch With 8 Ports PoE
- Shenzhen
- Credit Card
You May Like
-
9-port Industrial PoE Switch With 8 Ports PoE
-
9-port Industrial PoE Switch With 4 Ports PoE
-
5-port Full Gigabit Industrial PoE Switch With 4 Ports PoE
-
9-port Managed Industrial PoE Switch With 4 Ports PoE
-
5-port Full Gigabit Industrial PoE Switch With 4 Ports PoE
-
5-port Industrial Optical Fiber PoE Switch With 4 Ports PoE
Product Details
| Place of Origin | Guangdong, China | Brand Name | 3ONEDATA/OEM | |
| Model Number | IPS7110-2GC-8POE |
Product Description
10-port Managed Industrial PoE Switch with 8 ports PoE
| Introduction |
| IPS7110-2GC-8POE is an industrial grade, managed and redundancy Ethernet switch. The switch provides 8 ports 10/100M Ethernet and 2 ports combo Gigabit SFP slots or 10/100/1000Base-T(X) ports, which 8 ports Ethernet supports POE function (IEEE 802.3af/at). It provided some kinds of advanced network managed function, like as: SW-Ring redundancy ring network, VLAN, Trunking, Quality of Service, Speed control, port mirroring and fault alarm. SW-Ring can bring your Ethernet to intelligent redundancy. The -40~75℃ working temperature, can meet all kinds of Industrial environment requirement and provide the solution of the economy. |
| Features |
1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x,IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W 2.Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W) 3.Supports 2 Gigabit combo ports and 8 Fast Ethernet copper ports 4.SW-Ring ring network patent technology (Fault recovery time<20ms) 5.Support RSTP, way exchange time<50ms 6.Support static multicast, IGMP Snooping and GMRP 7.Support Port based VLAN and IEEE 802.1Q VLAN 8.Support QOS absolutely and opposite priority 9.Support WEB, SNMP and Telnet configuration 10.Support port status display, data update. 11.Industrial grade design, -40-75℃work temperature 12.IP40 protection grade, DIN rail mounted |
| Specification | |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W |
| Flow Control | IEEE802.3x flow control, Back pressure flow control |
Switch Properties | 100M forward speed: 148810pps |
| Interface | Fast Ethernet Port: 10Base-T/100Base-TX auto speed control, Half/full duplex and MDI/MDI-X auto detect |
| Transfer Medium | Twisted cable: 100M (standard CAT5/CAT5e cable) Multi-mode: 1310nm, 2Km Single-mode: 1310nm, 20/40/60Km 1550nm, 80/100/120Km |
| Indicator | Run indicator: Run |
| Power Supply | Input Voltage: 44~57VDC |
| Environment Requirement | Working temperature: -40~75℃ Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
| Physical Characterisitics | Shell: IP40 protect grade, metal shell |
| Industrial Standard | EMI: FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS, UL508(Pending) |
| Warranty | 5 years |
| Packing List | 1. Industrial PoE Switch(plus terminal block) ×1 2. User manual × 1 3. Certificate of quality × 1 4. Warranty card × 1 5. DIN-Rail mounting kit × 1 |

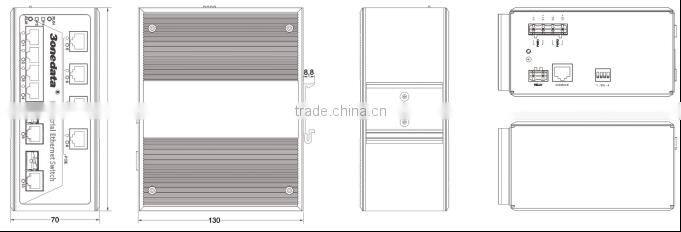

| Dimension |
| |
| Shipping |
|
