Home > Construction & Decoration > Heat Insulation Material > Glass Wool > 6020 6021 Mylar Film

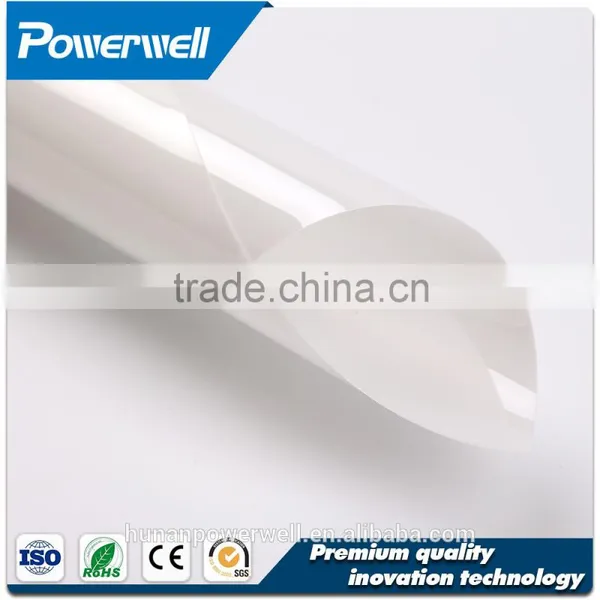

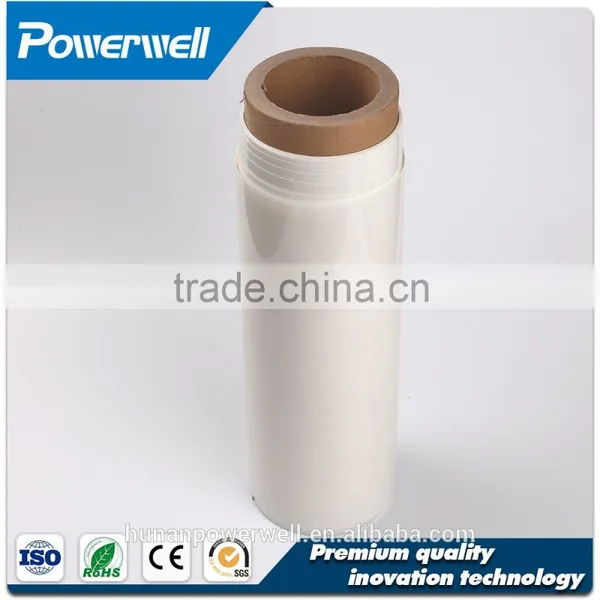

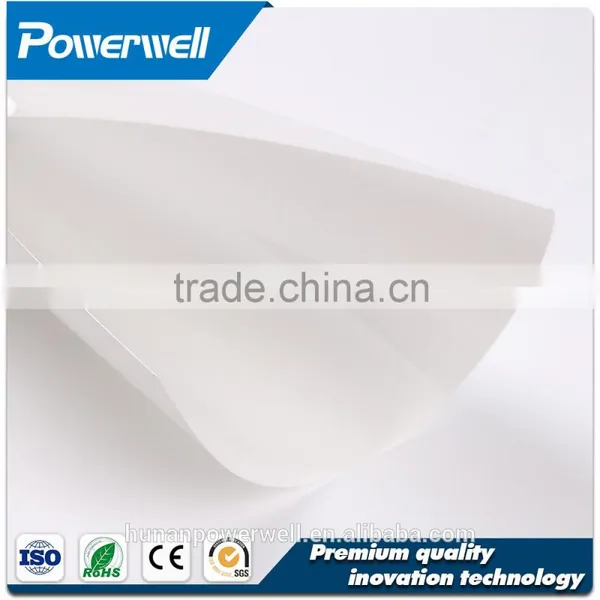

6020 6021 Mylar Film

Name: 6020 6021 Mylar Film
Brand: powerwell
SKU: 105773777

Negotiable MOQ: 500 Kilograms (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

powerwell

Model Number:

6020

Contact Supplier Request Quote Chat Now

Hunan Powerwell Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name powerwell

Model Number 6020

Type Insulation Film

Material PET

Application High Voltage

Rated Voltage as below

Tensile Strength good

6020 6021 Mylar Film

Is there any product that you need?

Is it really can be customized as per your requirement?

How to get personalized service?

Let’s find answers...

Technical parameter

Accurate specifications ensure that we provide professional products

Type:	6020/6021
Item:	Flexible PET film/Rigid polyester film
Thermal class:	E	Gauge(micron):	28-250
Characteristics:	Transparent/milk white ,flat, low shrinkage, excellent insulation properties
	UL approved

Properties	UnitNO.		1#	2#	3#	4#	5#	6#	7#	8#	9#	Test method
Thickness	micron		28	36	50	75	100	125	150	188	250	GB12802.2
Tensile strength	MD	Mpa	200	200	200	182	185	175	170	172	180
Tensile strength	TD	Mpa	210	210	198	198	190	186	206	185	200
Elongation at break	MD	%	120	115	125	115	120	150	130	150	148
Elongation at break	TD	%	110	105	130	110	102	110	100	110	109
Shrinkage (150℃,30min)	MD	%	1.3	1.3	1.4	1.3	1.3	1.4	1.4	1.5	1.6
Shrinkage (150℃,30min)	TD	%	0.7	0.8	0.8	0.9	0.8	1	1	1	1
Breakdown voltage	V/µm		185	220	188	165	145	126	123	104	92
Volume resistivity	Ω·m		1.0×1014
Relative dielectric constant (48Hz-62Hz)	-		3
Dielectric loss tangent(48Hz-62Hz)	-		2.8×10-3
Haze	%		2.5	2.8	3	3.2	3.3	3.8	4	4.5	5.3	GB2410
Light Transmittance	%		87	86	86	86	86	85	85	84	83	GB2410
Gloss (45°)	%		128	128	128	128	128	128	128	121	121	GB8807
Density	g/cm3		1.395	1.395	1.395	1.395	1.395	1.395	1.395	1.395	1.395	GB12802.2
Flame retardancy			VTM-0	VTM-2	VTM-2	VTM-2	VTM-2	VTM-2	VTM-2	VTM-2	VTM-2	ANSI/UL94

Note: There specifications are typical performance data for polyester film.They are not intended to be used as design data.

Next let us see more details

Details&features

Description

6020/6021 polyester film is biaxially oriented polyethelene terephthalate (PET) film

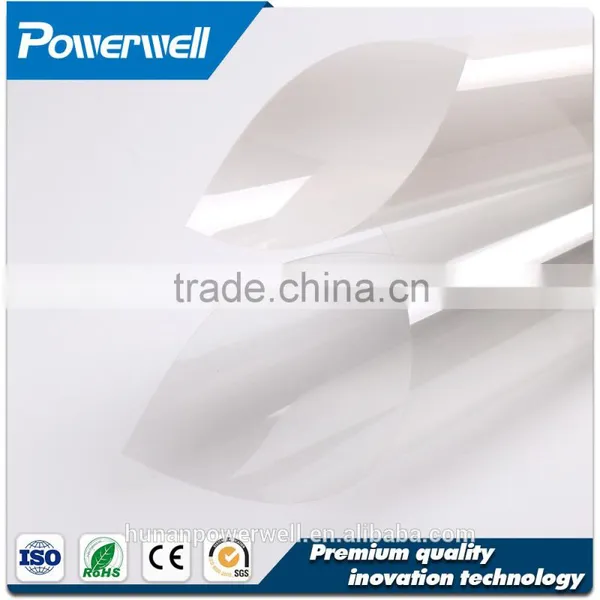

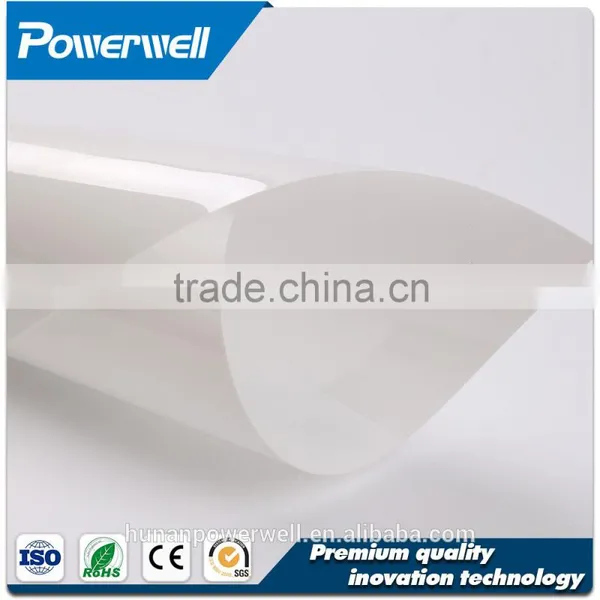

6020 – transparent colour 6021 – milk white colour

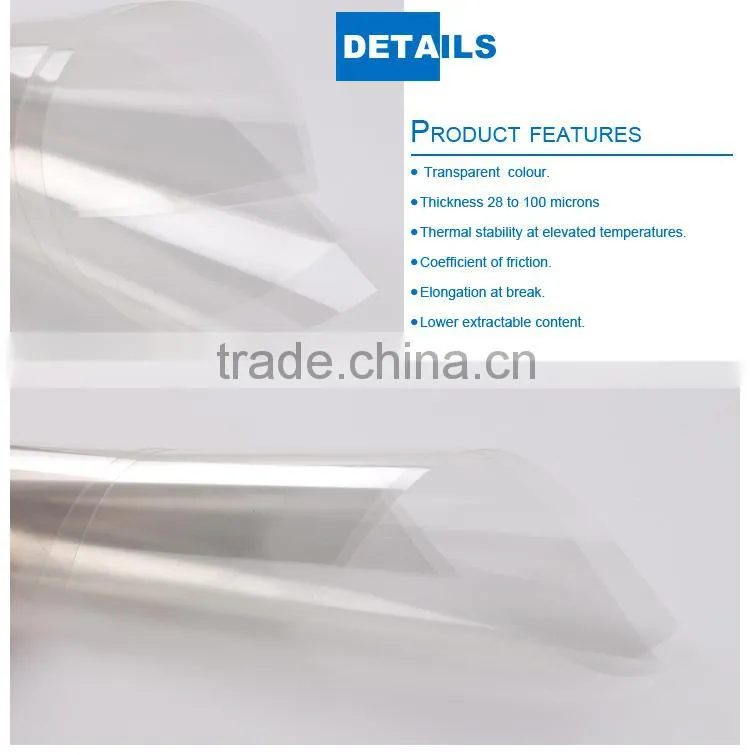

Features

•Dimensional stability

•Thermal stability at elevated temperatures

•Coefficient of friction

•Tensile break strength

•Tensile yield strength

•Elongation at break

•Chemical and electrical resistance

•High dielectric constant

•Lower extractable content

•High electrical breakdown voltage

Applications

It can be used as an electrical insulation and as a laminate with other substrates.

In motor applications, selected types of polyester film can be used for ground insulation as slot liners and wedges, as well as phase insulation. In wire and cable applications, it is ideal for mechanical barriers.

In addition, specialized polyester film can be used in transformer and high-voltage distribution equipment to wrap the conductors. They are effective for use in hermetic applications with refrigerator and air conditioner motor / compressor assemblies.

Available

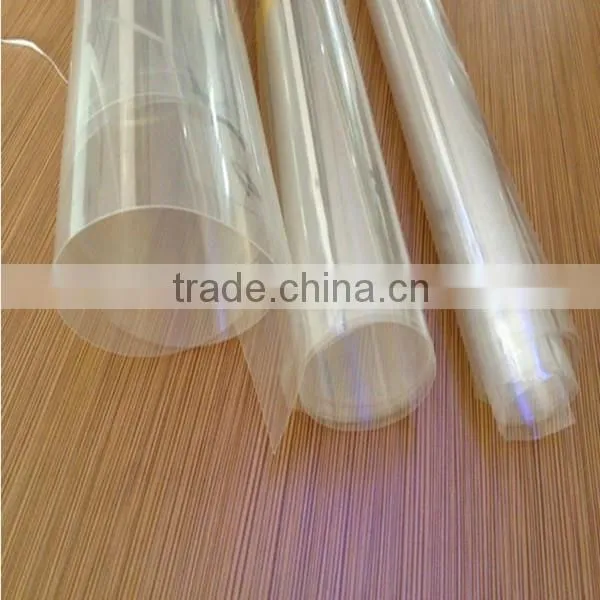

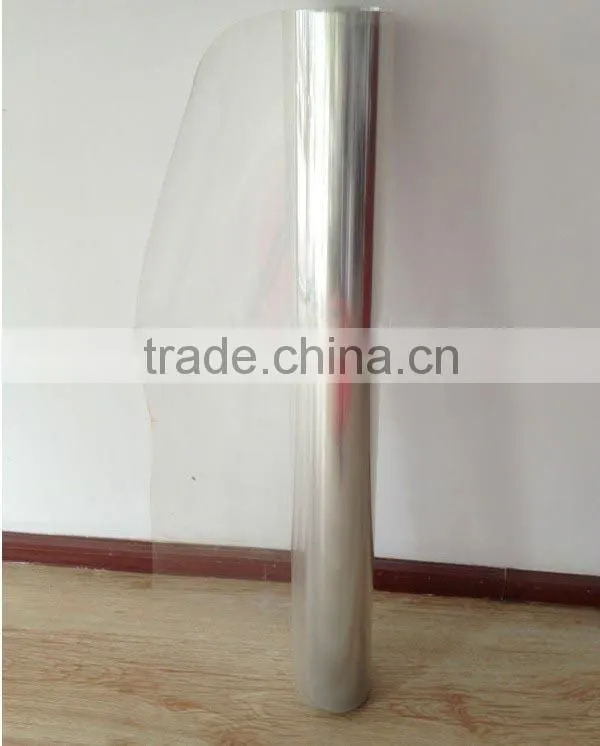

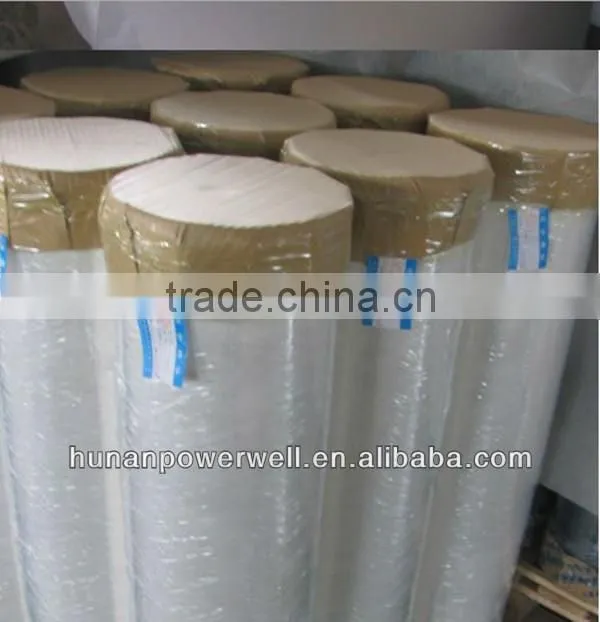

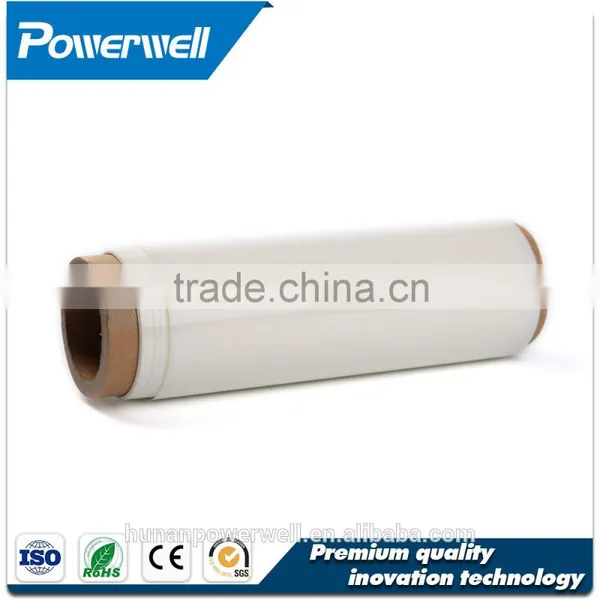

In rolls, in strips
